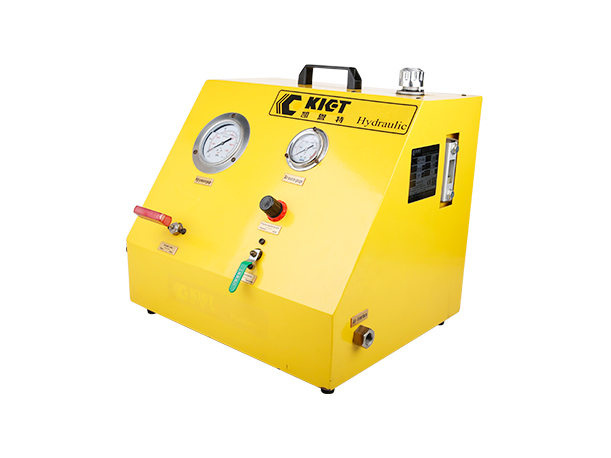

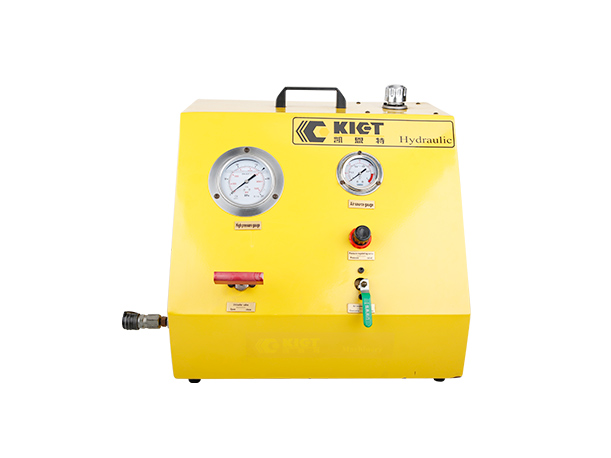

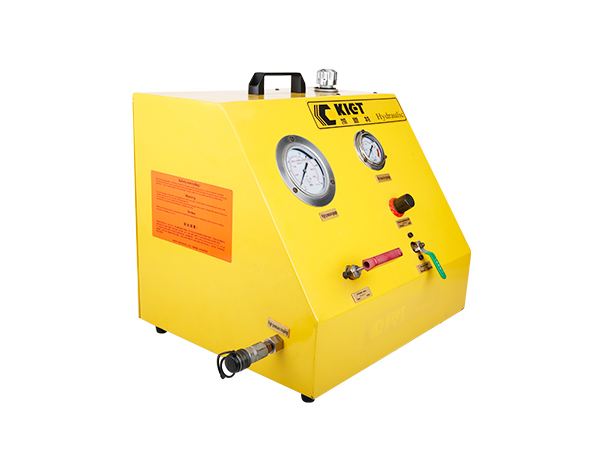

KET-QDBPortable Ultra High Pressure Pneumatic Pump

Features: Compressed air drive, no electric spark or flame hazard.

Uses: It is equipped with hydraulic bolt stretchers, hydraulic nuts and other various ultra-high pressure hydraulic tools.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry
Portable Ultra High Pressure Pneumatic Pump
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail
Features:
  • Power source of this pump is compressed air to achieve the linear output of the super high pressure. Easy, safe and reliable in operation. Can be matched with many super high pressure hydraulic tools, like bolt tensioners, hydraulic nuts, supper high pressure nut splitters etc.
  • Driving air pressure: 6-8 Bar, air control system includes filter, hydraulic control valve, flow control valve, stainless steel pressure gauge.
  • The diameter of the gauge is 100 mm and is silicone oil filled for quake proof purpose.
Specs& Dims
Model Working Pressure
(MPa)		 Boost Ratio Output Flow
(L/min)		 Oil Tank Capacity
(L)		 Air Pressure
(Bar)		 Air Input
Size		 Dimensions
(mm)
KET-QDB-150 150 188 0.9 4.5 8 NPT1/2 600×460×500
KET-QDB-200 200 250 0.49 4.5 8 NPT1/2 600×460×500
KET-QDB-250 250 400 0.4 4.5 6.5 NPT1/2 600×460×500
KIET Tour
Applications
[Hydraulic pump station]Used with various hydraulic tools
[Hydraulic pump station]Used with various hydraulic tools
[Hydraulic pump station]Used with various hydraulic tools
The hydraulic pump station provides hydraulic energy for various hydraulic tools, and converts mechanical energy into hydraulic energy through hydraulic drive.
Industry Applications：Equipment Manufacturing
