KET-DCBUltra-High Pressure Electric Hydraulic Pump

Features: Double-stage design, the first stage uses a gear pump, and the second stage uses a booster pump.

Uses: Provide various ultra-high pressure hydraulic tools for operation.

Send us an email

Tel 0086-523-86183388

Back to List

Inquiry

Ultra-High Pressure Electric Hydraulic Pump

Details
Specs
Cases
Video
Related

Back

Product Detail

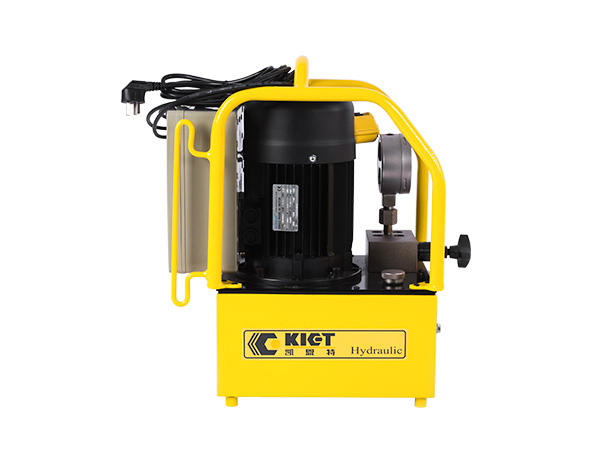

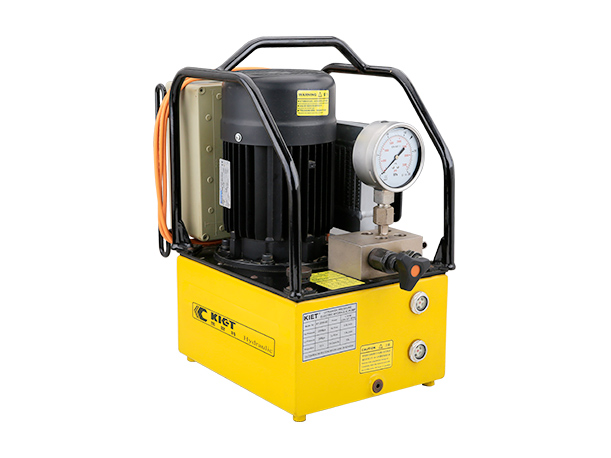

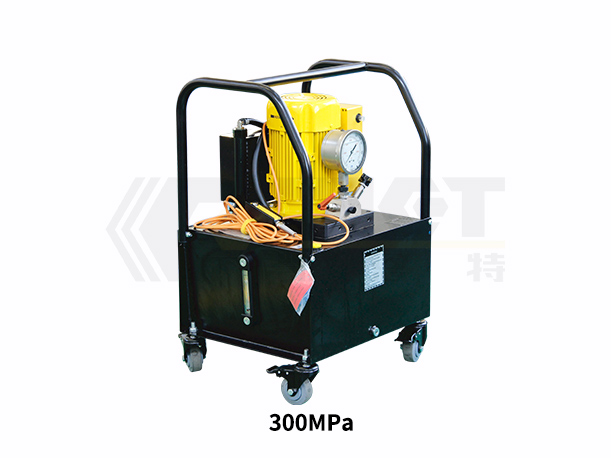

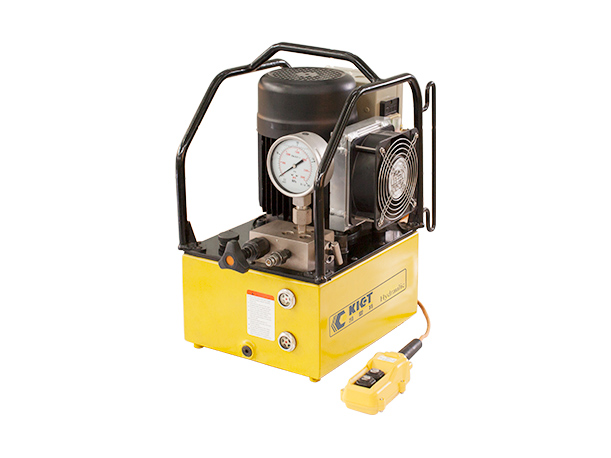

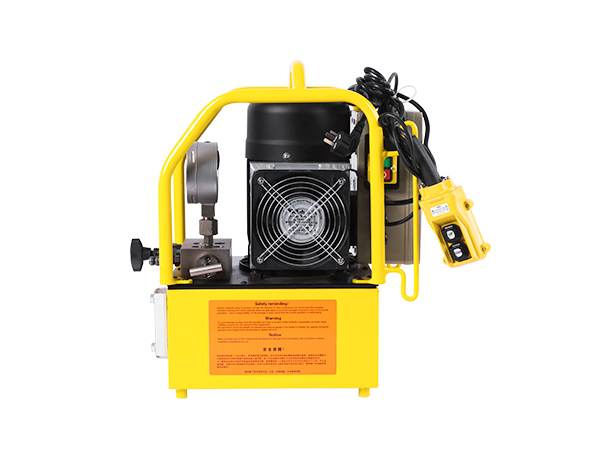

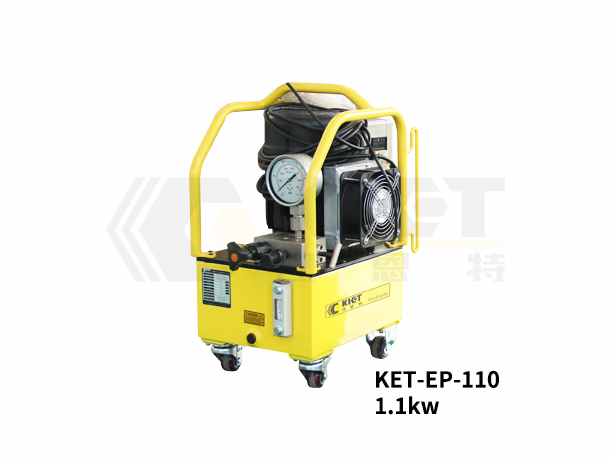

The ultra-high pressure electric hydraulic pump station is suitable for continuous output in various industrial production application fields (100MPa- 300MPa), and can also be directly matched with corresponding ultra-high pressure hydraulic tools for pushing, pulling, expanding, clamping, bending, jacking, and extrusion etc.

Features:

Double stage design, gear pump for the first stage, booster pump for the second stage, which can shorten the working period and improve working efficiency.
Powerful induction motor can be started under full load.
Can be equipped with lots of super high pressure hydraulic tools.
Two built-in relief valves, one for overload protection set by factory, another for field adjustment the pressure.

Specs& Dims

Model	Working Pressure (MPa)	Flow ( L/min)	Voltage (V)	Oil Tank Capacity (L)	Weight (kg)
KET-DCB-150	150	1	380	25	50
KET-DCB-200	200	0.8	380	30	60
KET-DCB-250	250	0.4	380	30	60
KET-DCB-300	300	0.2	380	30	60

Model	Working Pressure （MPa）	Pressure Ratio	Oil Tank Capacity （L）	Flow	Input Power	Output Interface	Dimensions (mm)
KET-DCB-2000A-10-6L	200	1:10	30	6L/min@0bar 0.7L/min@2000bar	380V, 50HZ	1	580×430×790
KET-DCB-2500A-13-6L	250	1:13	30	6L/min@0bar 0.5L/min@2500bar	380V, 50HZ	1	580×430×790
KET-DCB-3000A-16-6L	300	1:16	30	6L/min@0bar 0.3L/min@3000bar	380V, 50HZ	1	580×430×790
KET-DCB-2000B-10-6L	200	1:10	70	6L/min@0bar 0.7L/min@2000bar	380V, 50HZ	2	580×430×790
KET-DCB-2500B-14-8L	250	1:14	70	8L/min@0bar 0.7L/min@2500bar	380V, 50HZ	1	580×430×790
KET-DCB-4000-20-8L	400	1:20	70	8L/min@0bar 0.5L/min@4000bar	380V, 50HZ	1	580×430×790
KET-DCB-5000-25-14L	500	1:25	70	14L/min@0bar 0.2L/min@5000bar	380V, 50HZ	1	580×430×790

KIET Tour

Applications

[Hydraulic pump station]Used with various hydraulic tools

The hydraulic pump station provides hydraulic energy for various hydraulic tools, and converts mechanical energy into hydraulic energy through hydraulic drive.

Industry Applications：Equipment Manufacturing
