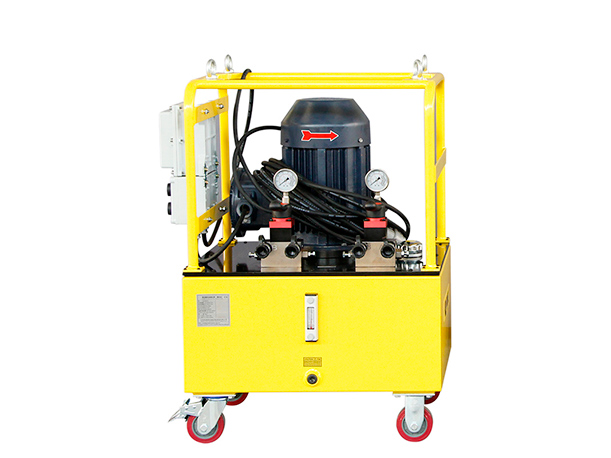

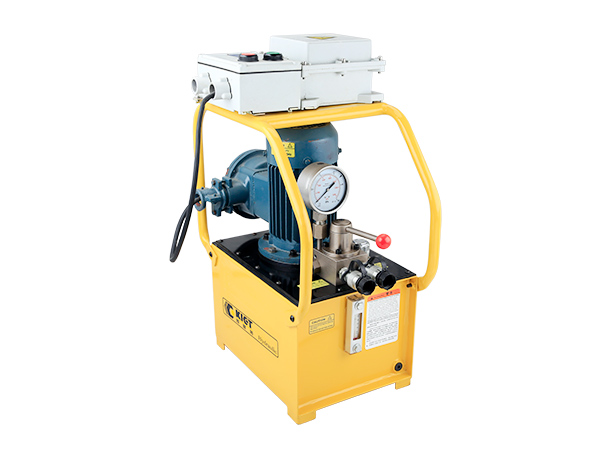

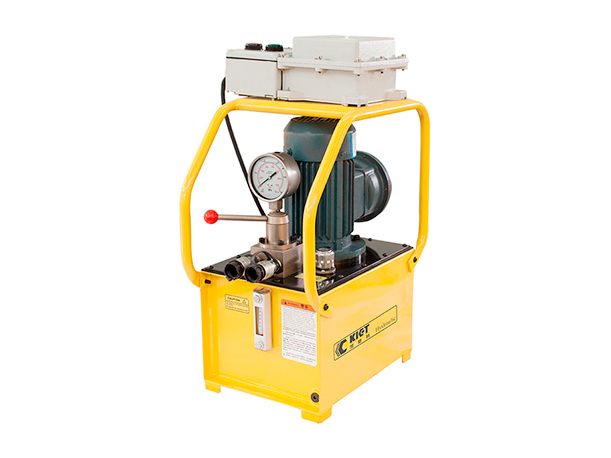

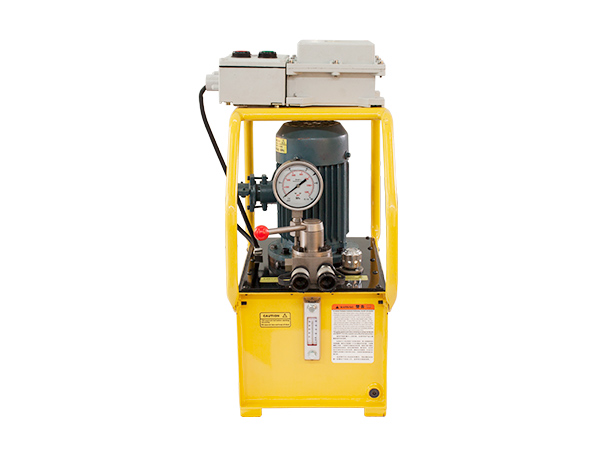

KET-FBBAnti-explosion Electric Hydraulic Pump

Features: Explosion-proof motor, explosion-proof electric control box.

Uses: Specially for chemicals, coal mines and special needs explosion-proof occasions.

Send us an email

Inquiry

Anti-explosion Electric Hydraulic Pump

Back

Product Detail

Anti-explosion electric hydraulic pump is especially designed for the the explosion proof situation like in chemical industry, coal mine place.

Features:

Explosion proof electric motor, Explosion proof electric cabinet
Drag line controller( explosion proof).
Low running noise.
The hydraulic oil temperature is low under the condition of continuous work.
The gauge was filled by silicone oil.
380V, three phase, 50Hz explosion proof type of motor, explosion proof electric cabinet.
With the function of over current and over voltage circuit protection.
Over load circuit protection.

Specs& Dims

Model	Working Pressure (MPa)	Pump Type	Valve Type	Oil Tank Capacity (L)	Motor Power (KW)	Flow (L/min)	Voltage (V)	Current Frequency (HZ)	Outlet Size	Dimensions (mm)
KET-FBB-380	70	double acting	Manual valve	16	0.75	1	380	50	NPT3/8	500X400X760
