KET-BFBSpecial Anti-explosion Electric Hydraulic Pump for Wrenches

Features: Advanced three-stage flow design, fast speed, low, medium and high voltage different flows and transmission torque are ideally matched.

Uses: Designed for powering hydraulic wrenches without electric spark or flame hazards.

Send us an email

Tel 0086-523-86183388

Back to List

Inquiry

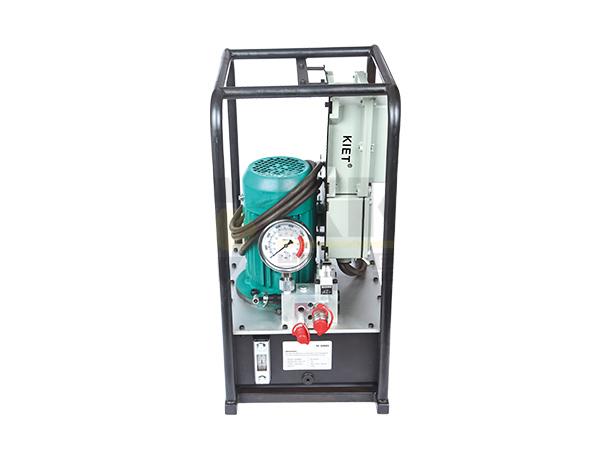

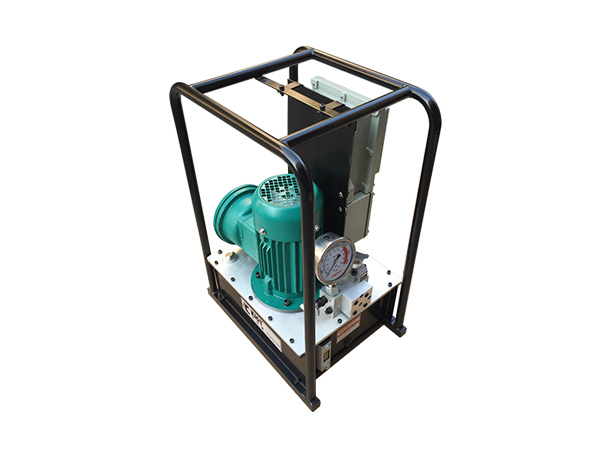

Special Anti-explosion Electric Hydraulic Pump for Wrenches

Details
Specs
Cases
Video
Related

Back

Product Detail

Anti-explosion electric hydraulic pump for wrenches is safe, reliable andpower ultra high pressure hydraulic tools. No electric spark or flame hazard. easy to operate,

Product Features:

Adopt EX d ll Bt4 type explosion-proof magnetic motor starter
high output torque valve
manualvalve, easy to operate
Advanced three stages flow design, high speed. Low, middle, high different pressure withdifferent flow, which can achieve the best match with transmission torque.
Supporting hydraulic torque wrenches are used in petrochemical, oil pipelines, natural gas pipelines, coal mining and other enterprises.

Specs& Dims

Model	Working Pressure (MPa)	Motor Power (KW)	Power Supply	Flow (L/min)	Oil Tank Capacity (L)	Weight (kg)	Dimensions (mm)
KET-BFB-70	70	1.1	330V/50Hz/ Three phase	8.0@0-6.5MPa 1.8@6.5-32MPa 0.85@32-70MPa	14	55	475×335×620

Model	Working Pressure（MPa）	Oil Tank Capacity(L)	Motor Power （KW）	Power Supply	Flow（L/min）	Dimensions(mm)	oil outlet	Weight （kg）
KET-PEX-2	70	14	1.1	330V/50Hz/ Three phase	8.0@0-6.5MPa,1.8@6.5-32MPa,0.85@32-70MPa	475×335×620	2	55
KET-PEX-4	70	14	1.1	330V/50Hz/ Three phase	8.0@0-6.5MPa,1.8@6.5-32MPa,0.85@32-70MPa	475×335×620	4	55

KIET Tour

Applications

[Hydraulic pump station]Used with various hydraulic tools

The hydraulic pump station provides hydraulic energy for various hydraulic tools, and converts mechanical energy into hydraulic energy through hydraulic drive.

Industry Applications：Equipment Manufacturing
