KET-PAPneumatic Hydraulic Foot Pump

Features: Compressed air drive, no electric spark or flame hazard.

Uses: Can be used with small tonnage hydraulic jacks or other hydraulic tools.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry

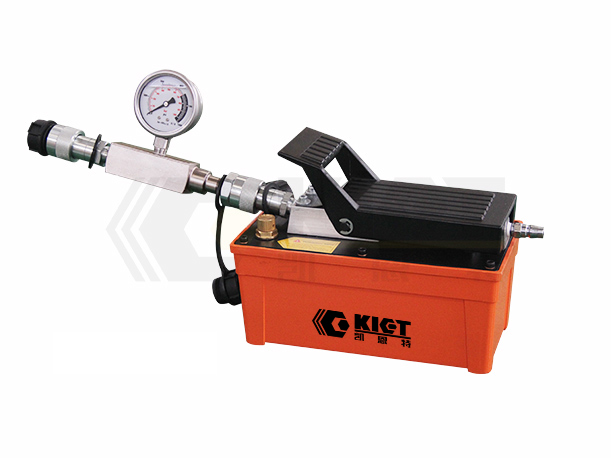

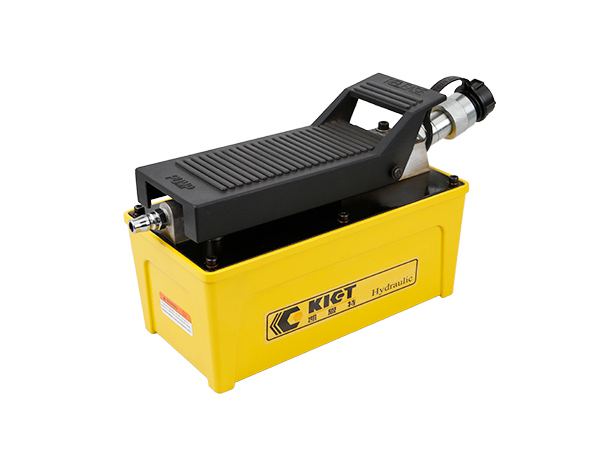

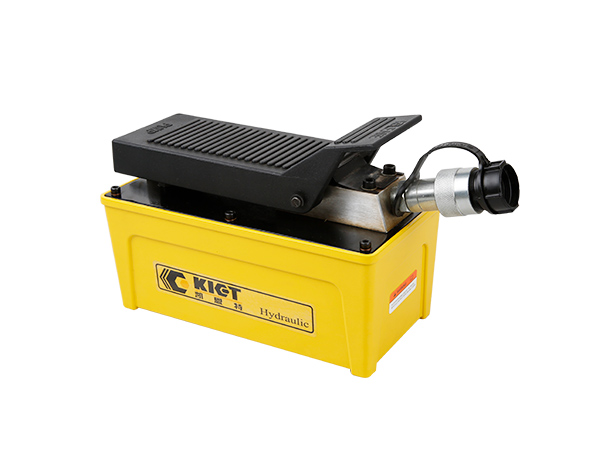

Pneumatic Hydraulic Foot Pump
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail
Features:
  • Max working pressure of this pump is 700 bar. It can work with the low tonnage hydraulic cylinders or other hydraulic tools together.
  • The pressure is adjustable within 0-700bar. Internal relief valves for overload protection.
  • Power source of this pump is compressed air, no electric spark or flame hazard.
  • Pedal switch control. The manual switch control and big oil tank can be customized according to the client request.
  • The aluminum fuel tank is light and easy to carry; the anti-skid pedal operation is forward and retracted;
  • It is used with a single-acting hydraulic jack；
  • It works with single acting hydraulic cylinder, equipped with liquid level indicator and NPT 3/8” couplings.
Specs& Dims
Model Working Pressure (MPa) Cylinder Tyoe Oil Tank Capacity (cm³) Oil Flow(L/min) Air Pressure Range (Bar) Air Consumption (L/min) Sound Level (dBA) Weight (kg)
No-load With Load

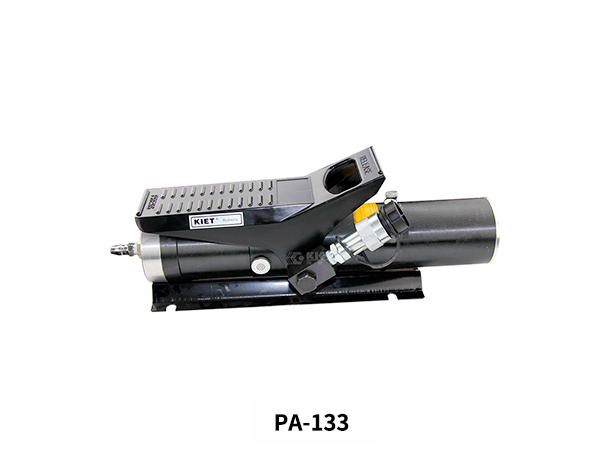

KET-PA-133 70 Single Acting 589 0.65 0.13 4.1-8.3 255 85 5.5
KET-PA-1150 70 Single Acting 1311 0.65 0.13 4.1-8.3 255 85 8.2
KIET Tour
Applications
[Hydraulic pump station]Used with various hydraulic tools
[Hydraulic pump station]Used with various hydraulic tools
[Hydraulic pump station]Used with various hydraulic tools
The hydraulic pump station provides hydraulic energy for various hydraulic tools, and converts mechanical energy into hydraulic energy through hydraulic drive.
Industry Applications：Equipment Manufacturing
