Features: Complete set of hydraulic kits to solve different pulling conditions.
Uses: Complete set of hydraulic kits to solve different pulling conditions.
Specs& Dims
| Model | Capacit(T) | Included Hydraulics | Included Pullers | Weight(kg) | |||||
| Hand Pump | Cylinder | Saddle | Grip Puller | Crossing Bearing Puller | Bearing Cup Puller | Bearing Puller | |||
| KET-BHP-1752 | 8 | P-142 | RCH-121 | - | BHP-1762 | BHP-1772 | BHP-180 | BHP-181 | 37 |
| KET-BHP-2751G | 20 | P-392 | RCH-202 | HP-2015 | BHP-252 | BHP-252 | BHP-280 | BHP-281 | 90 |
| KET-BHP-3751G | 30 | P-392 | RCH-302 | HP-3015 | BHP-352 | BHP-352 | BHP-380 | BHP-381 | 172 |
| KET-BHP-5751G | 50 | P-80 | RCH-603 | HP-5016 | BHP-552 | BHP-552 | BHP-580 | BHP-581 | 298 |
| Model | Capacity(T) | Included Hydraulics | Included Pullers | ||||||||||
| Hand Pump | Cylinder | Saddle | Model | Max. Spread (mm) | Max. Reach (mm) | Jaw (mm) | Adjusting Screw (mm) | ||||||
| 2 jaws | 3 jaws | 2 jaws | 3 jaws | Thickness | Width | Thread | Length | ||||||
| KET-BHP-152 | 8 | P-142 | RCH-121 | - | BHP-1762 | 249 | 249 | 252 | 252 | 15 | 23 | 3/4″-16UNF | 400 |
| KET-BHP-251G | 20 | P-392 | RCH-202 | HP-2015 | BHP-252 | 400 | 499 | 300 | 300 | 20 | 27 | 1″-8UNC | 675 |
| KET-BHP-351G | 30 | P-392 | RCH-302 | HP-3015 | BHP-352 | 593 | 800 | 387 | 387 | 24 | 38 | 1 /4″-7UNC | 795 |

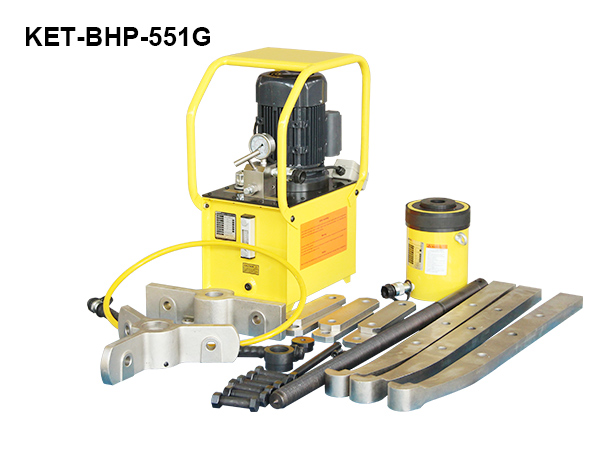

| KET-BHP-551G | 50 | P-80 | RCH-603 | HP-5016 | BHP-552 | 899 | 1100 | 700 | 700 | 30 | 39 | 5 1 /8″-5.5UNC | 975 |
| Model | Capacity(T) | Included Hydraulics | Included Pullers | |||||||
| Hand Pump | Cylinder | Saddle | Model | Spread (mm) | Max. Reach (mm) | Adjusting Screw (mm) | ||||
| Min. | Max. | Thread | Length | |||||||
| KET-BHP-162 | 80 | P-142 | RCH-121 | - | BHP-1772 | 266 | 106 | 462 | 3/4″-16UNF | 400 |
| KET-BHP-261G | 20 | P-392 | RCH-202 | HP-2015 | BHP-262 | 351 | 139 | 571 | 1″-8UNC | 675 |
| KET-BHP-361G | 30 | P-392 | RCH-302 | HP-3015 | BHP-362 | 454 | 179 | 711 | 1 /4″-7UNC | 795 |
| KET-BHP-561G | 50 | P-80 | RCH-603 | HP-5016 | BHP-562 | 570 | 220 | 863 | 5 1 /8″-5.5UNC | 975 |
| Model | Cross Bearing Puller | Weight（kg） | ||||||||
| Capacity(T) | Leg (mm) | Upper Leg Ends Thread | Lower Leg Ends Thread | Bearing Cup Puller | Bearing Puller | |||||
| Length | Length | Length | Length | |||||||
| KET-BHP-162 | 50 | 105 | 354 | - | - | 3/4″-16×25 | 5/8″-18×25 | BHP-180 | BHP-181 | 26 |
| KET-BHP-316G | 239 | 239 | 419 | 571 | 114 | 1/4″-16×25 | 5/8″-18×25 | BHP-280 | BHP-282 | 62 |
| KET-BHP-361G | 50 | 203 | 457 | 711 | - | 1-14×35 | 1-14×27 | BHP-380 | BHP-382 | 121 |
| KET-BHP-561G | 50 | 609 | 863 | - | - | 1 /4″-12×38 | 1 /4″-12×38 | BHP-580 | BHP-582 | 185 |
