Features: Used with aluminum alloy plunger, which is lightweight and easy to use.
Uses: Used for disassembly of various hydraulic couplers.

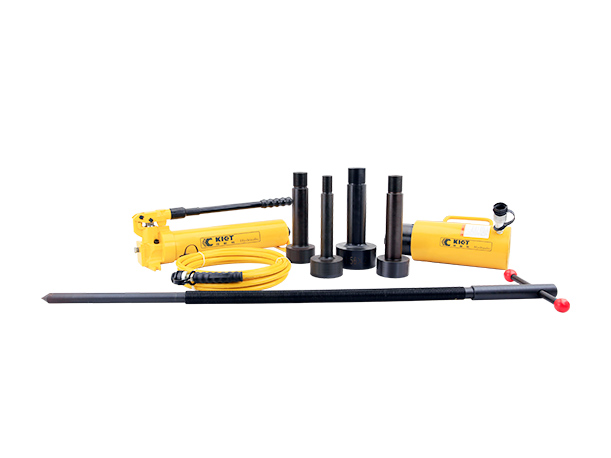

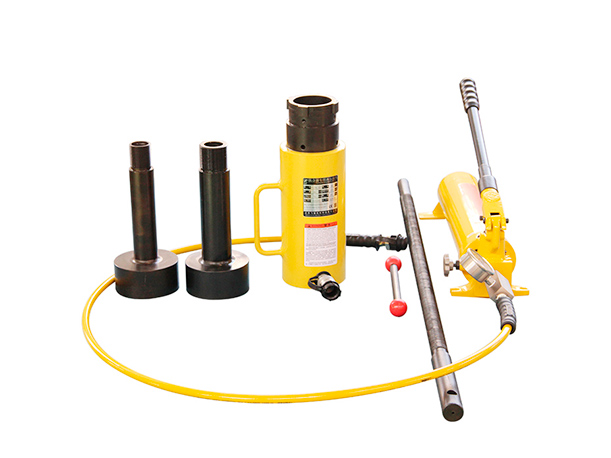

Hydraulic coupler puller focuses on dismantling the hydraulic couplings. With the feature of saving time and strength, it is easy to operate, without injury to the equipment. Widely used in steel plant, metallurgy, electric power, cement plant, coal mine etc.
● Easy to install, the best design in structure. Aluminium alloy plunger, light weight.
● Easy to operate, only need to operate the 700 bar hand pump to remove the coupler from shaft safely.
● Good performance, no injury to the equipment after finished the dismantling.
● Can be used for couplers with several different sizes, no matter coupler is domestic or imported, big size or small size, just need to notice the screw specification of the coupler , the special connector can be customized to match with the puller.
Coupler Decoupling Sequence
| Model | Cylinder Capacity | Working Pressure | Oil Capacity | Working Stroke | Cylinder Length | Cylinder Weight | Matched Module Specification |
| KET-LTC-20T | 20 | 70 | 450 | 75 | 304 | 10 | 27、30、32、36、42、48 |
| KET-LTC-50T | 50 | 70 | 530 | 90 | 373 | 18 | 42、48、56、60、64 |
