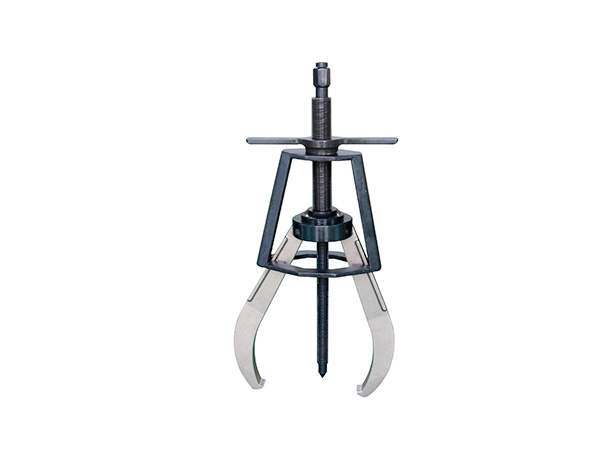

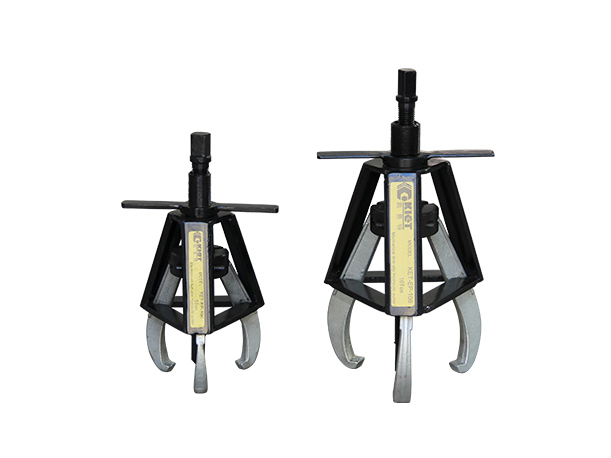

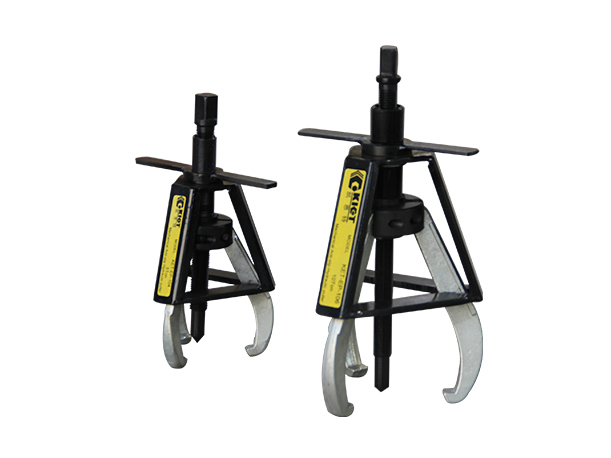

KET-EPMechanical Skid-resistant Gear Puller

Features: Safety cage design, automatic centering to prevent biased loading.

Uses: Suitable for disassembling workpieces such as bearings, gears, couplings, etc.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry
Mechanical Skid-resistant Gear Puller
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail
  • Unique ”Safety Cage” system, can firmly fixed the work-piece with the good skid-resistance and safety.
  • Self – centering, anti – eccentric load, ensures that the screw rod is always in the center of force and extends the service life.
  • Through the T type handle and the safety cage to control the wheel quickly, it’s more convenient to operate.
  • Slim tapered jaws make it easier to work in narrow space.
  • NPT 3/8” quick coupling, can work with kinds of 700bar/10000psi power pack together.
  • Slim tapered jaws make it easier to work in narrow space.
Specs& Dims
Model Number of Jaws Capacity (T) Spread(min.-max.) (mm) Max.Reach (mm) Screw Rod Diameter (mm) Weight (kg)
KET-EP-104 3 5 12-127 101 14 1.8
KET-EP-106 3 10 12-178 152 16 3.6
KET-EP-108 3 17 19-304 203 20 6.4
KET-EP-110 3 20 25-381 245 20 7.3
KET-EP-113 3 30 63-457 304 29 20
KET-EP-116 3 40 76-635 355 31 30.8
KET-EP-204 2 2 12-127 101 14 1.4
KET-EP-206 2 6 12-178 152 16 3.2
KET-EP-208 2 12 19-304 203 20 5.4
KET-EP-210 2 14 25-381 245 20 5.9
KET-EP-213 2 25 63-457 304 29 17.2
KET-EP-216 2 35 76-635 355 31 25.8
KIET Tour
Applications
Hydraulic Pullers for Disassembly of Bearings, Gears, and Couplings
Hydraulic Pullers for Disassembly of Bearings, Gears, and Couplings
Hydraulic Pullers for Disassembly of Bearings, Gears, and Couplings
Industry Applications：Metallurgy
