KET-JXGear and Rack Lifting System

Features: The number of lifting units is determined according to the lifting capacity required by the platform and the overall design requirements

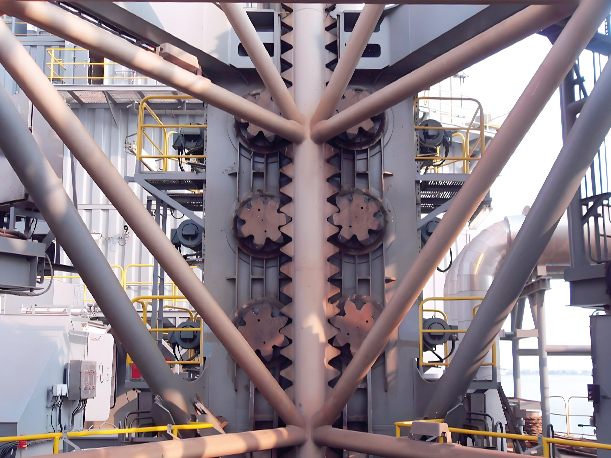

Uses: Synchronous lifting of wind power installation vessels

Send us an email

Tel 0086-523-86183388

Back to List

Inquiry

Gear and Rack Lifting System

Details
Specs
Cases
Video
Related

Back

Product Detail

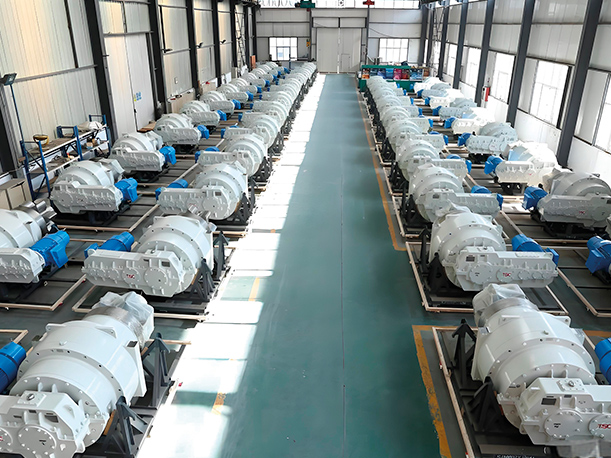

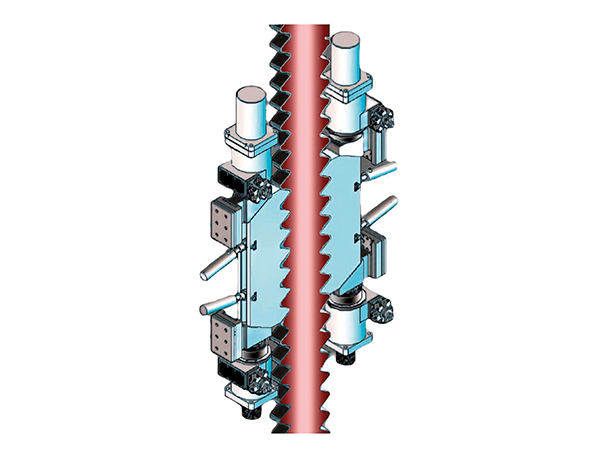

The system is usually composed of multiple lifting units and an electrical control system. The number of lifting units is determined according to the required lifting capacity of the platform and the overall design requirements.The lifting unit includes a planetary gearbox, a parallel gearbox, a climbing gear, a motor, and a brake. The system can be divided into the motor-driven gear and rack type and the hydraulic-driven gear and rack type.

Specs& Dims

Model No.	Rated Lifting Capacity (t)	Pre-ballast Capacity (t)	Rated Static Support Capacity(t)	Max Static Support Capacity(t)	Lifting Speed(m/min)	Drive
KET-JX-45	45	54	78	100	0.4~1.2	Electric / Hydraulic
KET-JX-100	100	135	175	230	0.4~1.2
KET-JX-160	160	195	242	345	0.46
KET-JX-200	200	258	318	454	0.46
KET-JX-280	280	396	498	672	0.45
KET-JX-330	330	455	587	792	0.45
KET-JX-460	460	598	736	980	0.45

KIET Tour

Applications

Jack-up System for Synchronous Jacking of Large Steel Structures.

Industry Applications：Steel Structure
