The H-type hydraulic press can move the pressure platen in the up and down directions, and move the crimping cylinder in the left and right directions, which is convenient for motor repair, motor bearing disassembly and assembly, and various workpiece pushing. We will show you the details of THe 150TH hydraulic press to gain a deeper understanding of THe functions of THe working parts of THe press.

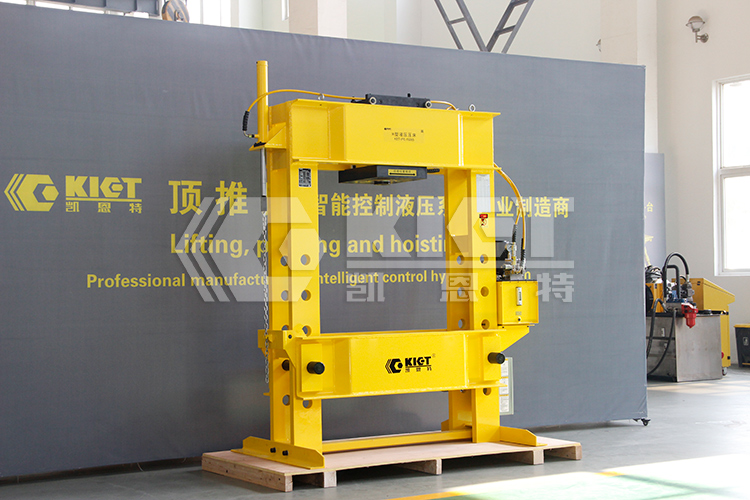

150T H-type hydraulic press

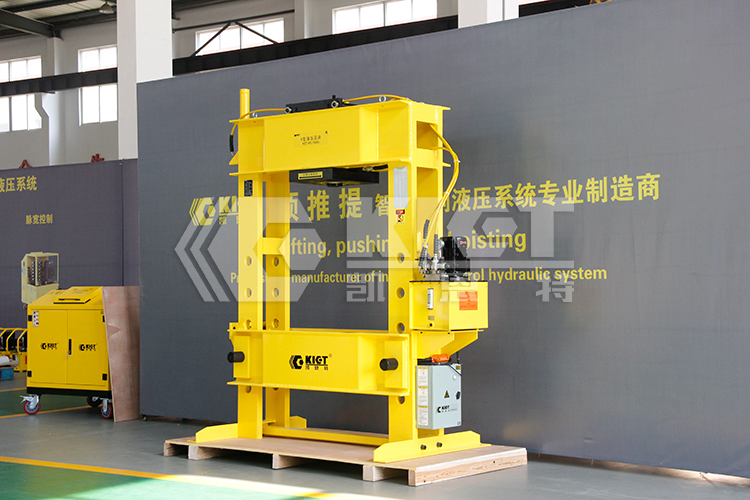

150T H-type hydraulic press

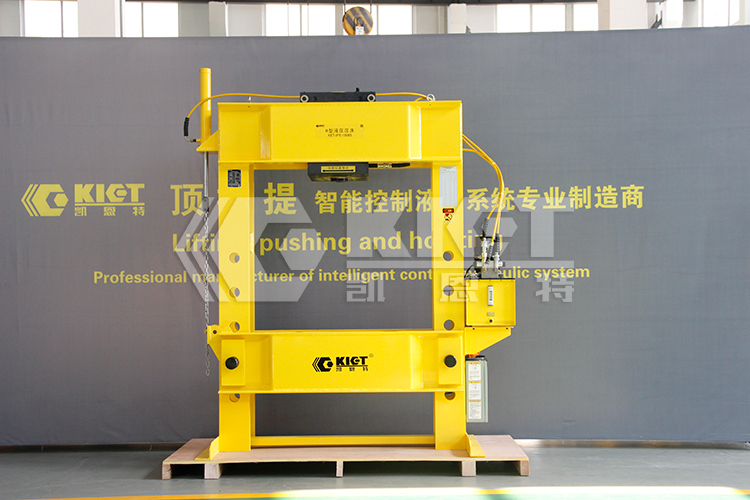

150T H-type hydraulic press

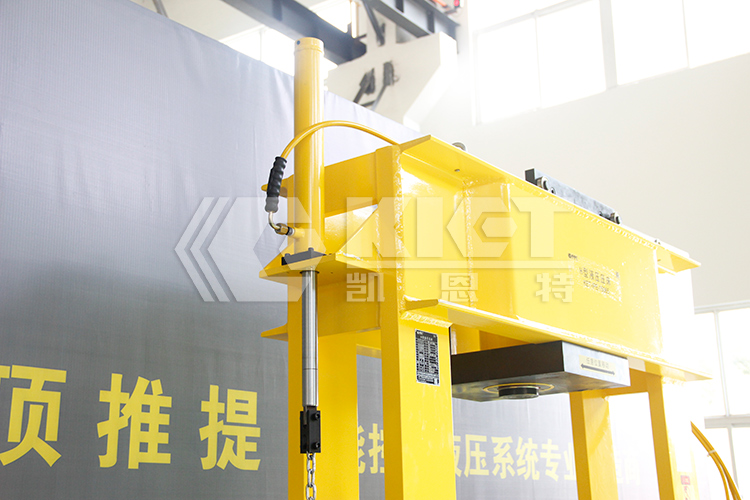

H-type hydraulic press

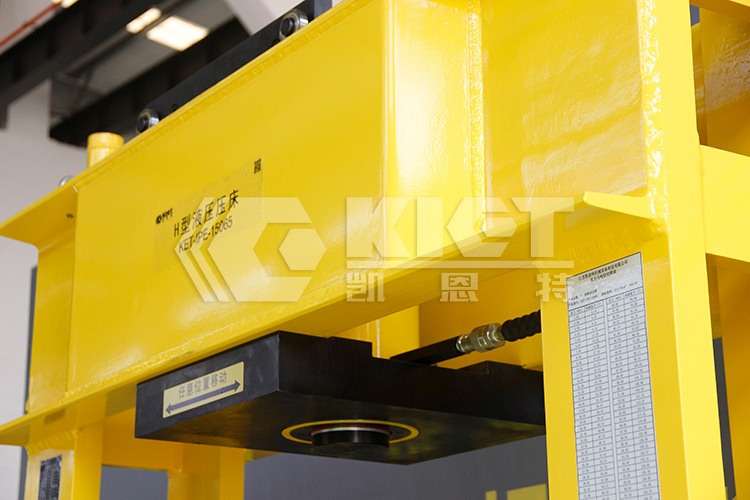

H-type hydraulic press

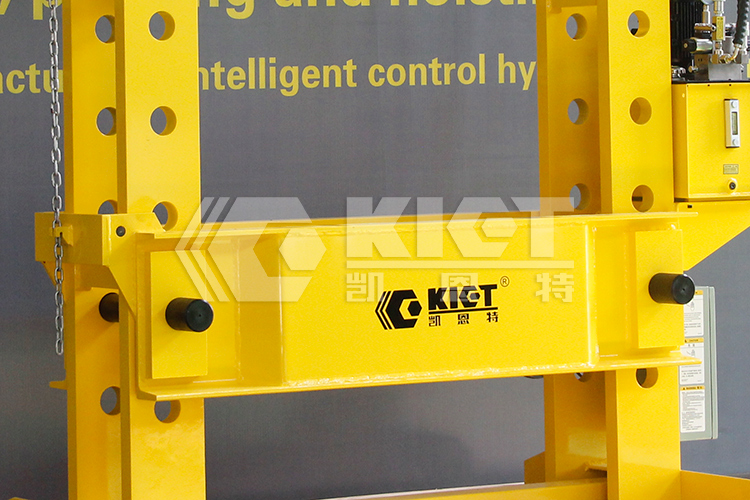

H-type hydraulic press
H-type hydraulic press

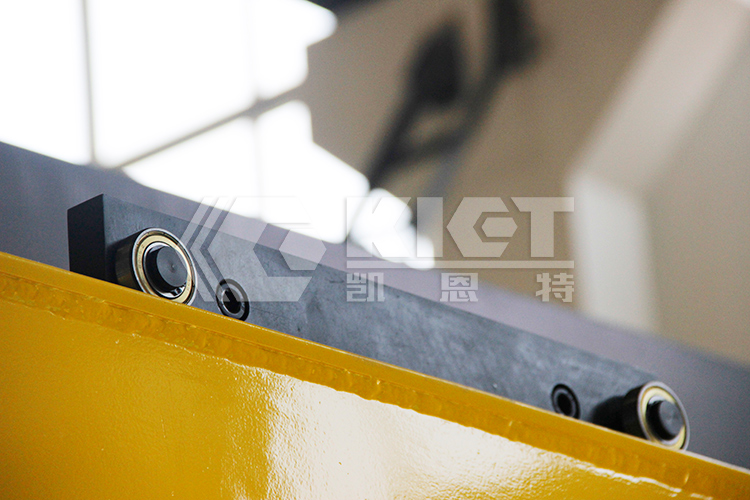

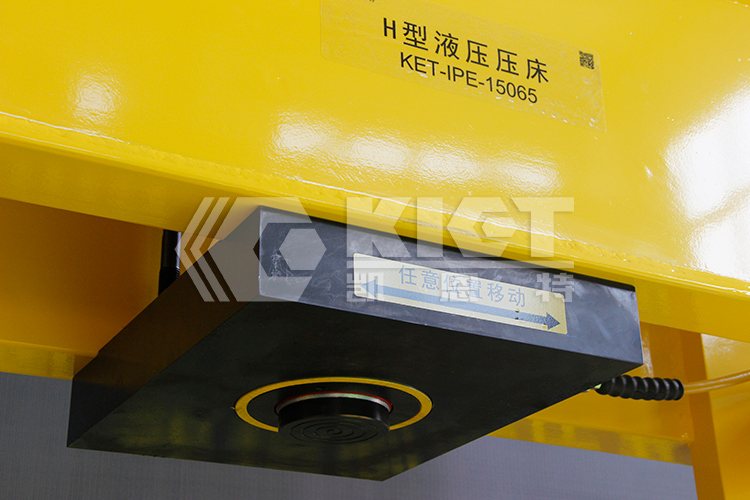

Hydraulic cylinder moving rollers
Parameters of the press this time:
Model: KET-IPE-15065
Working capacity: 150T
Maximum platen spacing: 1231mm
Maximum platen width: 1219mm
Jack stroke: 330mm
Power supply: 2.2KW/380V/50HZ
Pressing rated pressure: 70MPa
Press-down rated flow: 2L/min
Oil storage: 24L
Overall dimensions (L x W x H): 1819X1117 x 2286mm
