The high-precision intelligent weighing hydraulic system system adopts a control system, a drive system and an energy system.

The control system is composed of a controller and a feedback part. Through the simple and clear industrial computer operation interface, each information element is preset, and the pressure sensor, displacement sensor, load cell, etc. are constantly fed back to the site status during the system operation, and the data is directly fed back in the central control room.

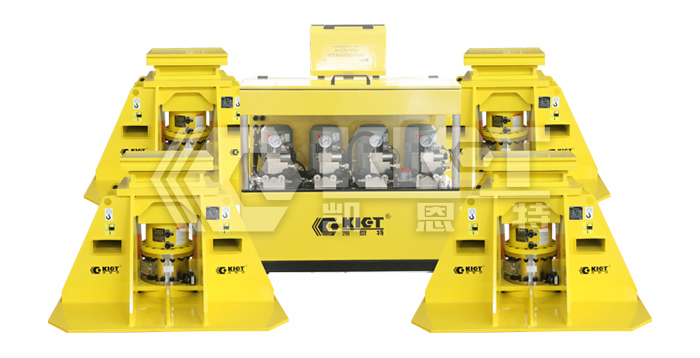

1 set of high-precision intelligent weighing hydraulic system system

The drive and energy system is to control multiple 70MPa hydraulic jacks through the system's own hydraulic pump to control jacking, lowering and other operations. It is an economically safe jacking scheme. The piston pump provides high-pressure oil to feed the hydraulic jack, the relief valve can adjust the system pressure, the reversing valve realizes the telescopic action switching, detects the displacement of each working point through the sensor, feeds back to the controller, the controller adjusts the speed of the motor through the frequency converter, and then adjusts the cylinder speed, and the balance valve automatically adjusts the speed of the fall.

Through the connection and connection of each system part, data transmission and feedback, control and execution, so as to achieve the ultimate high-precision weighing purpose. At present, the high-precision intelligent weighing hydraulic system is one of the ideal solutions for weighing large structural parts, with the advantages of low cost, high stability and easy control, and has broad prospects in the market.

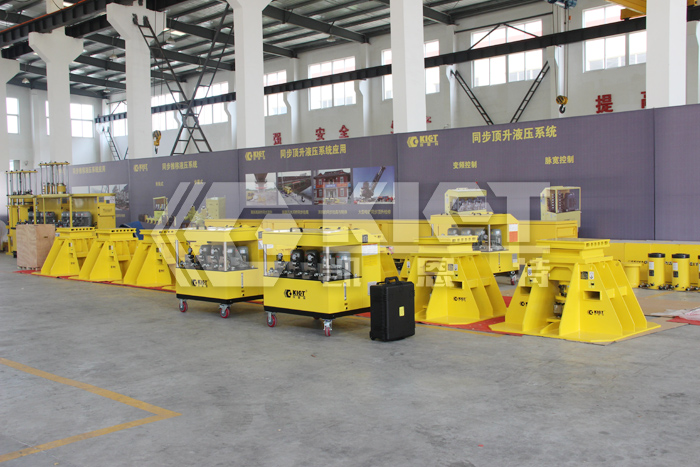

A complete set of high-precision intelligent weighing hydraulic system system
