Features: By controlling the expansion and contraction of its six moving cylinders, the upper platform of the moving platform can achieve six degrees of freedom in the space.

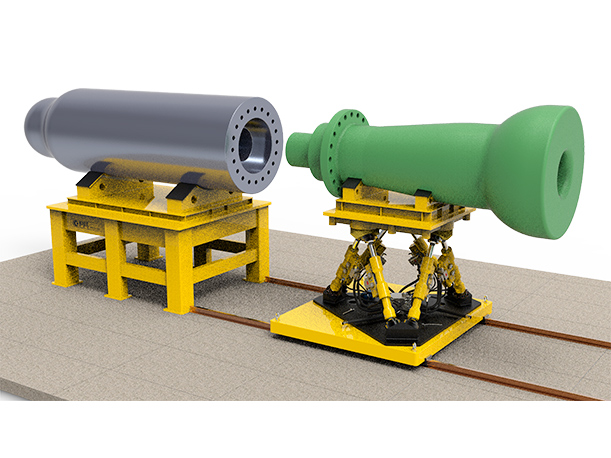

Uses: It is applied to motion simulation test experimental equipment such as automobiles, ships, aircraft, and aerospace equipment assembly.

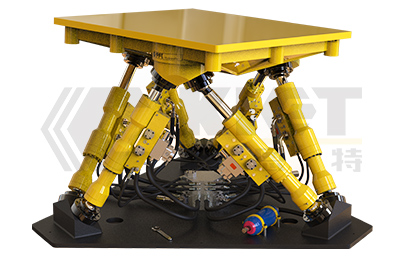

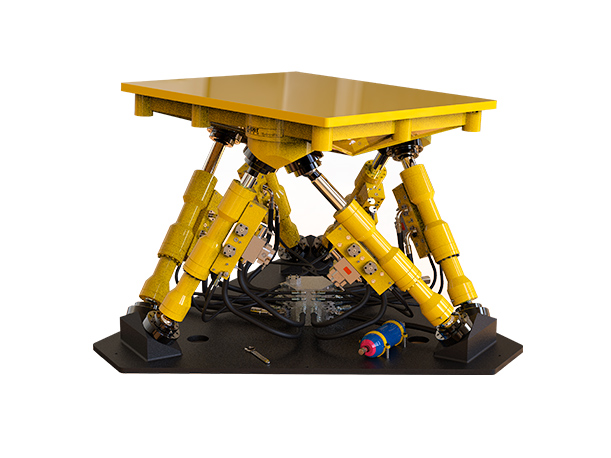

Six-dimensional Free Motion Hydraulic Platform realizes the six dimension of free movement of the upper platform bycontrolling the expansion and contraction of its six motion cylinders. The motion platform has a series of ability such ashigh structural rigidity, strong bearing capacity, high control precision, quick response, and a Small selfweight-to-loacratio.
| KET-LZD-6-100 | KET-LZD-6-200 | KET-LZD-6-500 | KET-LZD-6-1000 | KET-LZD-6-2000 | KET-LZD-6-5000 | KET-LZD-6-10000 | KET-LZD-6-20000 | KET-LZD-6-50000 | |
| Rated Capacity(Kg) | 100 | 200 | 500 | 1000 | 2000 | 5000 | 10000 | 20000 | 50000 |
| Pitch(°) | ±10° / ±20°/ ±30°/ ±45°/ ±60° (可定制) | ||||||||
| Roll(°) | ±10° / ±20°/ ±30°/ ±45°/ ±60° (可定制) | ||||||||
| Course(°) | ±10° / ±20°/ ±30°/ ±45°/ ±60°/ 全周 (可定制) | ||||||||
| Vertical shift(°) | ±50° / ±80°/ ±100°/ ±200°/ ±300°/±400°/ ±500° (可定制) | ||||||||
| Traverse(°) | ±50° / ±80°/ ±100°/ ±200°/ ±300°/±400°/ ±500° (可定制) | ||||||||
| Heave(°) | ±50° / ±80°/ ±100°/ ±200°/ ±300°/±400°/ ±500° (可定制) | ||||||||
| The maximum load of the swing table can reach 200 tons | |||||||||
