Features: Professional design, high-strength claw hook.
Uses: Used in highways and bridges Shaft expansion joints.

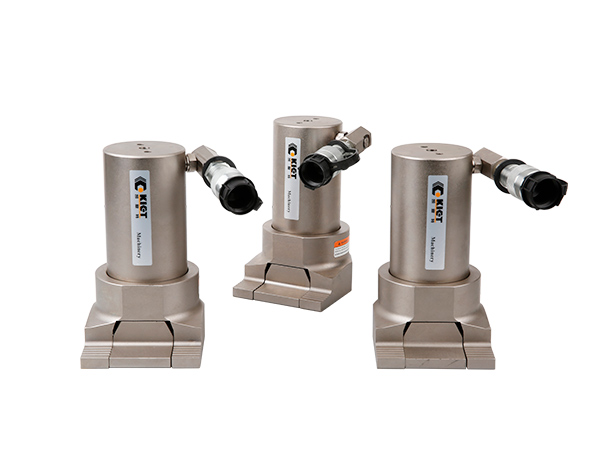

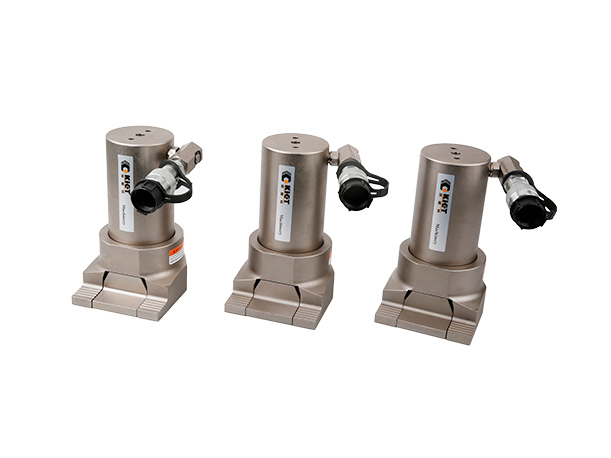

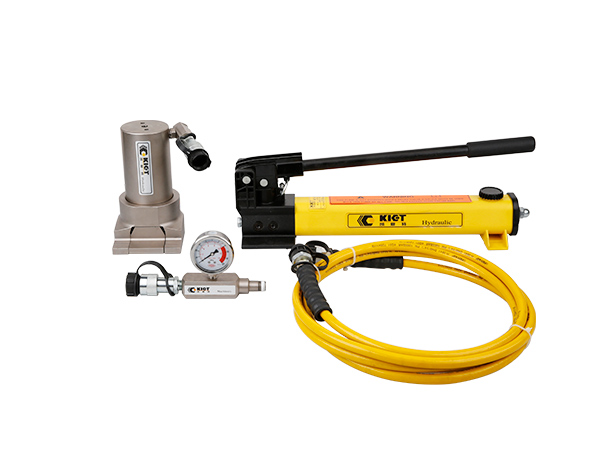

Slotted Type Hydraulic Cylinder is mainly used for highway and bridge shaft expansion joints, for the replacement of special-shaped steel and rubber seal with a modular combination of modular structure. The standard model is 20 T. Effective stroke is 100 mm. Working pressure is 70 MPa. single acting, spring return.
| Model | Capacity | Working Pressure | Stroke | Effective Area | Oil Capacity | O. D | Plunger Dia. | Dimensions（mm） | ||||
| （T） | （MPa） | （mm） | （cm2） | （cm3） | （mm） | （mm） | H | A | D | D1 | L | |
| KET-KFD-20 | 20 | 70 | 100 | 28.3 | 283 | 85 | 60 | 213 | 14 | 120 | 62 | 148 |
