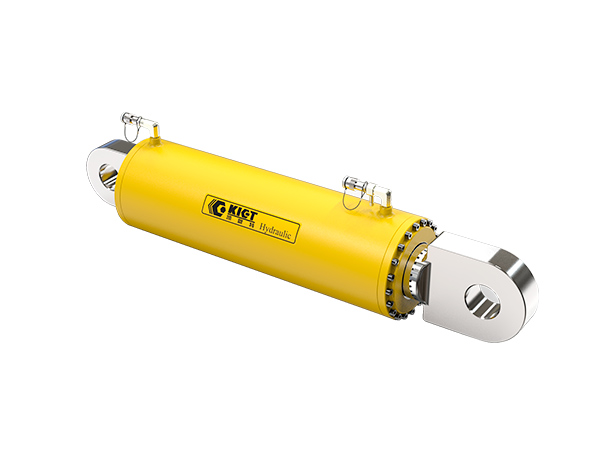

Heavy Type Hydraulic Cylinder_Hydraulic Cylinders_Jiangsu Canete Machinery Manufacturing Co., Ltd.

Product Detail

Standard sealing temperature range: -20°C~+80°C
Working pressure: 20MPa
Piston rod diameter: 110 mm to 310 mm
High temperature paint, chrome piston rod with excellent corrosion resistance
All models come with quick couplings and dust covers
Customizable tonnage and stroke

Specs& Dims

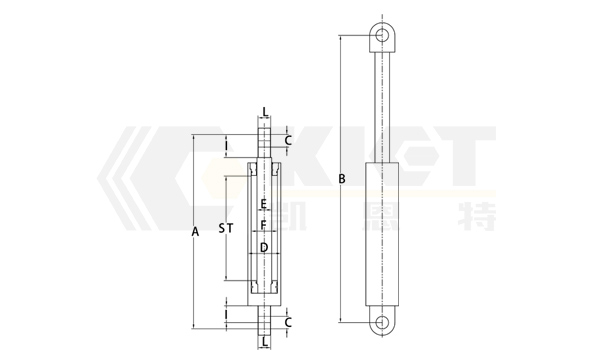

Model	Capacity (T)	Working Stroke (mm)	Effective Area Push (cm²)	Effective Area Pull (cm²)	Oil Volume （mm³）	Centre Minimum Length （mm）	Centre Maximum Length（mm）	Outer Diameter D (mm)	Cylinder Diameter E (mm)	Rod diameter F (mm)	Distance from center hole to the cylinder H	Connection plate thickness L	Center hole diameterC
KET-DH-35120	35	3000	176.72	81.7	53015	3565	6565	175	150	110	110	40	50
KET-DH-35140	35	3500	176.72	63.6	61850	4085	7585	175	150	120	110	40	50
KET-DH-35160	35	4000	176.72	54	70686	4665	8665	175	150	125	110	40	50
KET-DH-35180	35	4500	176.72	44	79522	5245	9745	175	150	130	110	40	50
KET-DH-35200	35	5000	176.72	33.6	88358	5815	10815	175	150	135	110	40	50
KET-DH-50120	50	3000	240.53	127.4	72159	3600	6600	210	175	120	125	45	55
KET-DH-50140	50	3500	240.53	107.8	84185	4120	7620	210	175	130	125	45	55
KET-DH-50160	50	4000	240.53	97.4	96212	4710	8710	210	175	135	125	45	55
KET-DH-50180	50	4500	240	97	108238	5315	9815	210	175	135	125	45	55
KET-DH-50200	50	5000	240	86	120264	5895	10895	210	175	140	125	45	55
KET-DH-65120	65	3000	314	201	94284	3660	6660	240	200	120	145	55	70
KET-DH-65140	65	3500	314	181	109956	4180	7680	240	200	130	145	55	70
KET-DH-65160	65	4000	314	160	125664	4765	8765	240	200	140	145	55	70
KET-DH-65180	65	4500	314	149	141372	5370	9870	240	200	145	145	55	70
KET-DH-65200	65	5000	314	137	157080	5950	10950	240	200	150	145	55	70
KET-DH-85120	85	3000	415	283	124643	3700	6700	270	230	130	160	65	80
KET-DH-85140	85	3500	415	261	145417	4220	7720	270	230	140	160	65	80
KET-DH-85160	85	4000	415	239	166191	4810	8810	270	230	150	160	65	80
KET-DH-85180	85	4500	415	215	186964	5395	9895	270	230	160	160	65	80
KET-DH-85200	85	5000	415	201	207738	5985	10985	270	230	165	160	65	80
KET-DH-100120	100	3000	490	337	147263	3735	6735	295	250	140	170	70	90
KET-DH-100140	100	3500	490	314	171806	4255	7755	295	250	150	170	70	90
KET-DH-100160	100	4000	490	290	196350	4855	8855	295	250	160	170	70	90
KET-DH-100180	100	4500	490	264	220849	5435	9935	295	250	170	170	70	90
KET-DH-100200	100	5000	490	236	245438	6025	11025	295	250	170	170	70	90
KET-DH-150120	150	3000	730	476	219186	3830	6830	350	305	180	200	75	100
KET-DH-150140	150	3500	730	447	255716	4360	7860	350	305	190	200	75	100
KET-DH-150160	150	4000	730	416	292247	4930	8930	350	305	200	200	75	100
KET-DH-150180	150	4500	730	384	328778	5505	10005	350	305	210	200	75	100
KET-DH-150200	150	5000	730	350	365309	6090	11090	350	305	220	200	75	100
KET-DH-200120	200	3000	962	615	288635	3915	6915	406	350	210	230	90	120
KET-DH-200140	200	3500	962	582	336740	4450	7950	406	350	220	230	90	120
KET-DH-200160	200	4000	962	546	384846	5015	9015	406	350	230	230	90	120
KET-DH-200180	200	4500	962	471	432952	5600	10100	406	350	250	230	90	120
KET-DH-200200	200	5000	962	431	481058	6185	11185	406	350	260	230	90	120
KET-DH-250120	250	3000	1194	779	358378	3980	6980	450	390	230	250	95	130
KET-DH-250140	250	3500	1194	723	418108	4495	7995	450	390	245	250	95	130
KET-DH-250160	250	4000	1194	663	477837	5075	9075	450	390	260	250	95	130
KET-DH-250180	250	4500	1194	622	537567	5655	10155	450	390	270	250	95	130
KET-DH-250200	250	5000	1194	579	597567	6230	11230	450	390	280	250	95	130
KET-DH-300120	300	3000	1452	941	435661	4075	7075	500	430	255	280	105	150
KET-DH-300140	300	3500	1452	879	508272	4595	8095	500	430	270	280	105	150
KET-DH-300160	300	4000	1452	814	580882	5170	9170	500	430	285	280	105	150
KET-DH-300180	300	4500	1452	745	653492	5745	10245	500	430	300	280	105	150
KET-DH-300200	300	5000	1452	679	726102	6320	11320	500	430	310	280	105	150
