Traditional solutions and disadvantages:

Twisting the bolt manually with chain pliers or pipe wrench, or tightening it with double nuts and loosening the bolt in reverse with a wrench, it is easy to produce eccentric load and damage the bolt; The effective torque is small, and it is not suitable for large bolts.

The working principle of the wire planting extractor:

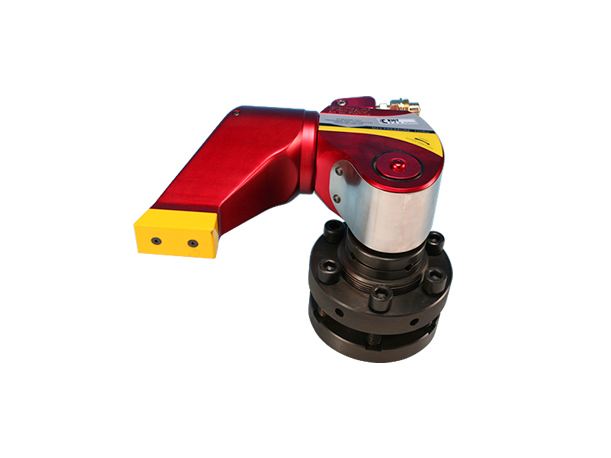

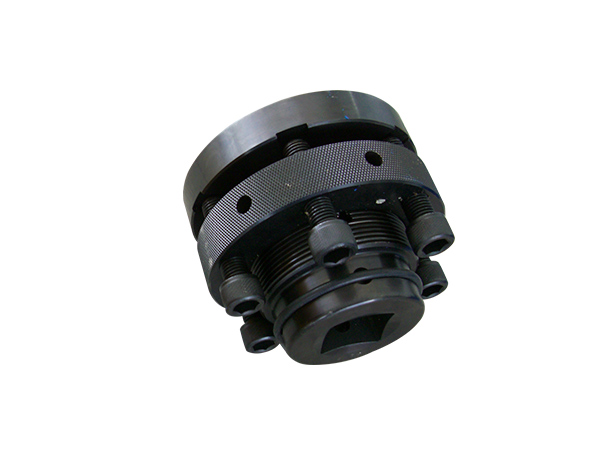

The wire extractor uses an adapted nut to tighten the bolt, and the bolt is tightened by pre-tightening the two nuts to avoid damaging the bolt, and then the bolt is implanted or removed by a hydraulic torque wrench or a pneumatic wrench to achieve rapid and non-destructive implantation or removal of the bolt.

Features:

Quickly solve the problem of disassembly and assembly of stud bolts on the spot;
Simple to operate, equipped with pneumatic impact wrench and hydraulic torque wrench;
Unique design to protect threads;
Suitable for metric M14-M160, inch 1/2-7 all kinds of bolts.

Preparation for selection:

Bolt specifications;
Bolt material;
Bolt-around workspace.

Specs& Dims

Model	Bolt Diameter And Pitch (m×t)	Driving Square (s×s)	Power Source Rated Torque (N·M)	Air Pressure (bar)	Weight （kg）
KET-LSQ-M30	30×3.5	30×30	6370	0.63	9.0
KET-LSQ-M33	33×3.5	30×30	6370	0.63	9.2
KET-LSQ-M36	36×4	30×30	6370	0.63	9.6
KET-LSQ-M39	39×4	30×30	6370	0.63	10
KET-LSQ-M42	42×4.5	30×30	6370	0.63	10
KET-LSQ-M48	48×5	30×30	6370	0.63	10
KET-LSQ-M52	52×3	30×30	6370	0.63	11
KET-LSQ-M56	56×4	45×45	14700	0.63	11
KET-LSQ-M60A	60×4	45×45	14700	0.63	11
KET-LSQ-M64A	64×4	45×45	14700	0.63	13
KET-LSQ-M68A	68×4	45×45	14700	0.63	19
KET-LSQ-M72A	72×4	45×45	14700	0.63	21
KET-LSQ-M76A	76×4	45×45	14700	0.63	27
KET-LSQ-M60B	60×4	64×64	34300	0.63	11
KET-LSQ-M64B	64×4	64×64	34300	0.63	13
KET-LSQ-M68B	68×4	64×64	34300	0.63	19
KET-LSQ-M72B	72×4	64×64	34300	0.63	21
KET-LSQ-M76B	74×4	64×64	34300	0.63	27
KET-LSQ-M80	80×4	64×64	34300	0.63	28
KET-LSQ-M85	85×4	64×64	34300	0.63	28
KET-LSQ-M90	90×4	64×64	34300	0.63	33
KET-LSQ-M95	95×4	64×64	34300	0.63	38
KET-LSQ-M100	100×4	64×64	34300	0.63	43
KET-LSQ-M105	105×4	64×64	34300	0.63	49
KET-LSQ-M110	110×4	64×64	34300	0.63	54
KET-LSQ-M120	120×4	64×64	34300	0.63	60
KET-LSQ-M130	130×4	64×64	34300	0.63	65
KET-LSQ-M140	140×4	64×64	34300	0.63	72

KIET Tour

Applications

[Hydraulic Bolt Tools] Use occasions

Our common hydraulic wrenches, hydraulic tensioners, etc. in the disassembly and assembly of bolts and nuts, as well as various multipliers, super nuts, nut splitters and other hydraulic bolt tools.

Industry Applications：Oil&Gas
