Professional supplier of synchronous hydraulic lifting system, synchronous pushing, synchronous hoisting, synchronous conveyor vehicle, hydraulic cylinder, hydraulic jacks.

  • Under Locking Type Hydraulic Nut
  • Under Locking Type Hydraulic Nut
Under Locking Type Hydraulic Nut
Request a Quote
We will respond to your inquiry within 8 hours

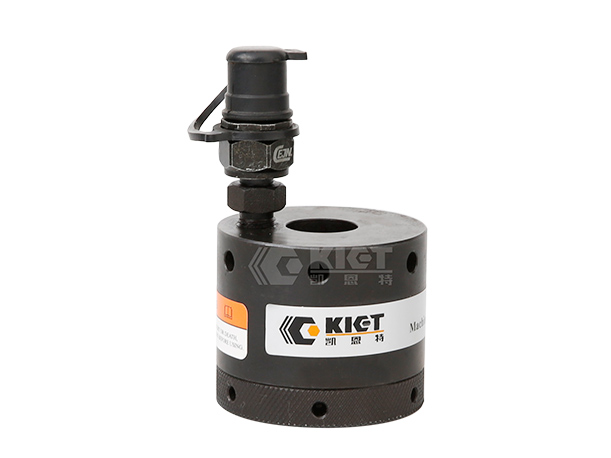

KET-XLMUnder Locking Type Hydraulic Nut

Features: Hydraulic nuts are an accurate and reliable bolt fastening tool.

Uses: It is a fastening of various vibrations, fast rotation, large force equipment and narrow space bolts.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry
Under Locking Type Hydraulic Nut
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail
Features:
  • Suitable for high temperature of 100℃
  • Provide special seal when temperature is higher than 100℃
  • Anti corrosion protective cap
  • Spherical washers can be used if the interface is not at right angles Non-standard customization
  • Assorted Applications Million tons press machine Nuclear power equipment Opencast machine Mineral processing equipment Marine diesel.
Specs& Dims
Model Bolt diameter Working Pressure （bar） Max. load （KN） Outside diameter （mm） Nut Height （mm） stroke （mm）
（inch） （mm）
KET-SLM-M33 1 ¼  M33 150 216 74 64 6
KET-SLM-M36   M36 150 246 80 71 4
KET-SLM-M39 1 ½ M39 150 296 87 75 4
KET-SLM-M42   M42 150 340 94 81 6
KET-SLM-M45 1 ¾ M45 150 406 101 88 6
KET-SLM-M48 1 ¼ M48 150 457 107 89 8
KET-SLM-M52 2 M52 150 553 117 96 8
KET-SLM-M56 2 M56 150 656 128 100 8
KET-SLM-M64 2 ¼ M64 150 817 144 113 10
KET-SLM-M68 2 ¾ M68 150 1008 157 119 10
KET-SLM-M72 3 M72 150 1051 163 123 12
KET-SLM-M80 3 ¼ M80 150 1459 187 142 12
KET-SLM-M90 3 ½ M90 150 1727 207 158 12
KET-SLM-M95 3 ¾ M95 150 1965 219 166 12
KET-SLM-M100 4 M100 150 2233 234 172 15
KET-SLM-M110 4 ½ M110 150 2688 255 184 15
KET-SLM-M125 5 M125 150 3636 296 210 15
KET-SLM-M140 5 ½ M140 150 4371 328 238 15
KET-SLM-M150 6 M150 150 5268 356 255 18
KIET Tour
Applications
Industry Application of [Hydraulic Nut]
Industry Application of [Hydraulic Nut]
Industry Application of [Hydraulic Nut]
Hydraulic nuts are mainly used in the tightening of large equipment nuts, replacing ordinary nuts. They have the characteristics of high reliability and high precision for long-term use!
Industry Applications：Building
Videos
Related Product
  • KET-SLM
    Special Hydraulic Locking Nut for Coal Mining Machine
    Special Hydraulic Locking Nut for Coal Mining Machine
    Bolt Diameter Range：
    M33 ~ M150
    Maximum Load:
    216 ~ 5268KN
    Stroke:
    4 ~ 18mm
    Live Chat Learn more
  • KET-ZLM
    Special Hydraulic Nut for Bearing Assembling and Disassembling
    Special Hydraulic Nut for Bearing Assembling and Disassembling
    Bolt Specifications：
    M50×1.5 ~ Tr500×4
    Area:
    2900 ~ 51500mm²
    Stroke:
    5 ~ 19mm
    Live Chat Learn more
  • KET-CLM
    Hydraulic Locking Nut for Coal Mining Machine
    Hydraulic Locking Nut for Coal Mining Machine
    Bolt Specifications：
    M16-M150
    Maximum Initial Load:
    216.6-3412kN
    Nut Outer Diameter:
    74-300mm
    Live Chat Learn more
  • KET-CLM
    Super Nut
    Super Nut
    Bolt Specifications：
    M24 ~ M160
    Jack-up Bolts:
    M8×36 ~ M20×165
    Pre-tightening Force:
    244300 ~ 15856600N
    Live Chat Learn more
