Product Detail

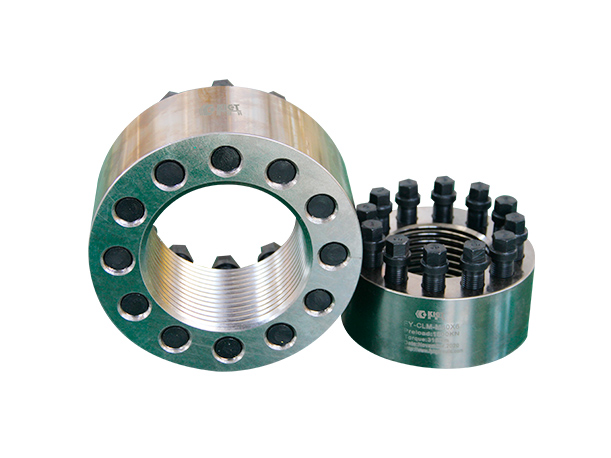

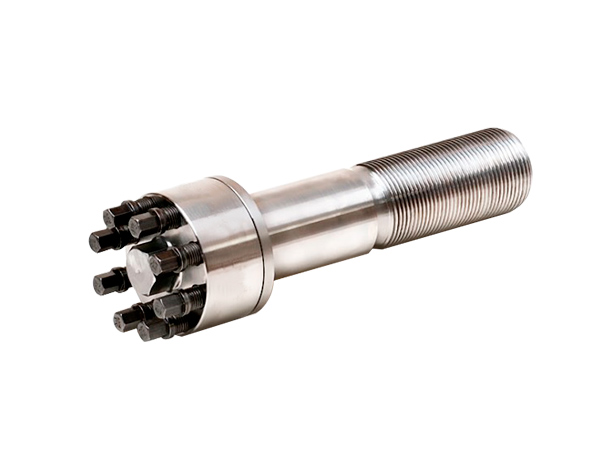

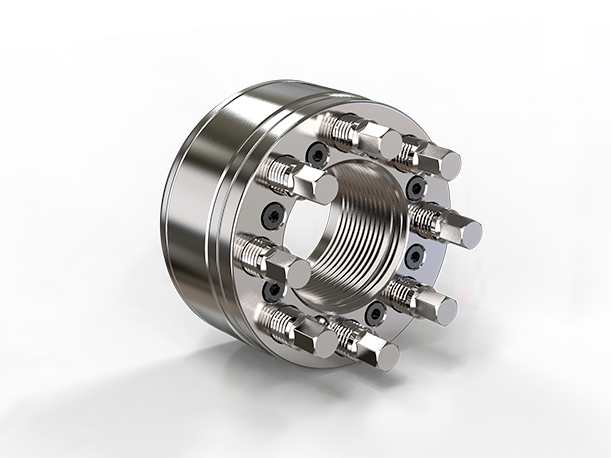

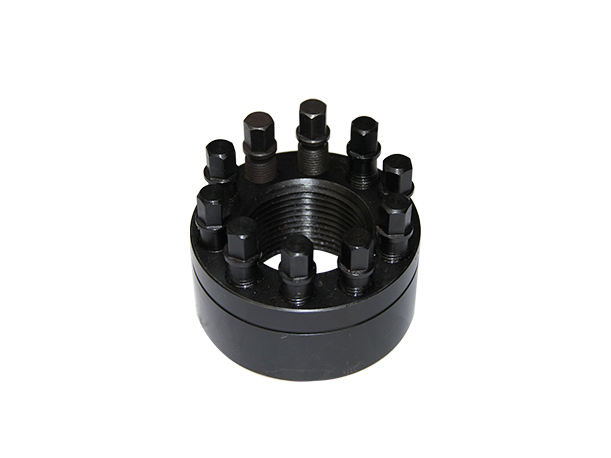

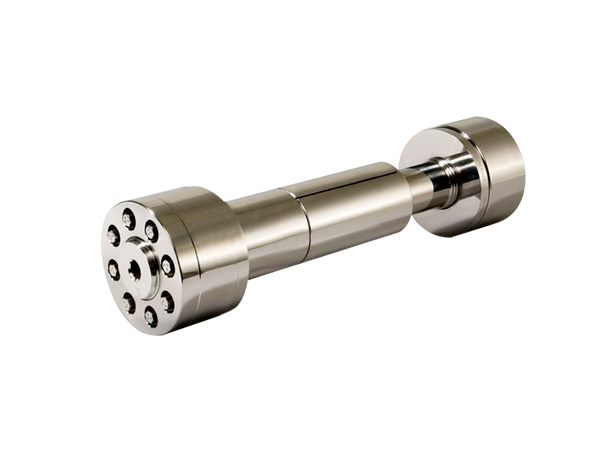

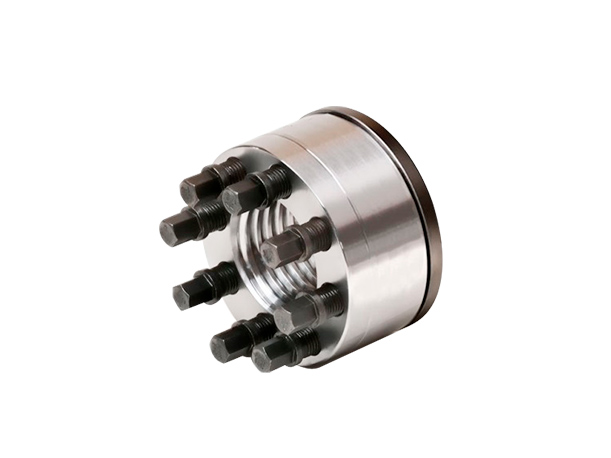

Super bolt is used together with multiple lifting screws to generate the required pre-tightening force so as to reach the purpose of tensioning the screw to fasten the workpiece.

Features：

Surface treatment: optional
Easy to operate: accurate preload force can be obtained by manual torque wrench
Suitable for different installation positions, small spaces, explosionproof and high temperature and other harsh environments
Simple structure and reusable.
Application examples: large studs for boiler feed pumps, boiler circulating pumps, reactors, heat exchangers, etc.

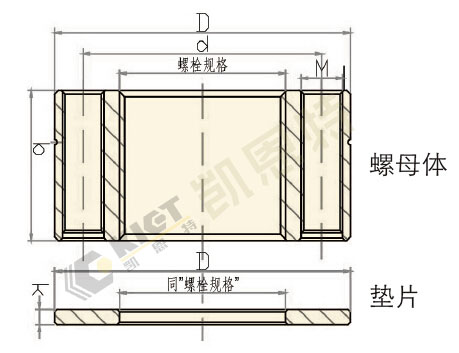

Specs& Dims

Model	Bolt Diameter	Dimensions				Lifting Bolt		8.8 Grade Bolt		10.9 Grade Bolt		Weight (kg)
Model	Bolt Diameter	D (mm)	d (mm)	b (mm)	k (mm)	-	QTY	Tightening Torque (N·M)	Pre-tightening Force (N)	Tightening Torque (N·M)	Pre-tightening Force (N)	Weight (kg)
KET-CLM-M24	M24	52	39	24	4	M8×36	8	47	188200	82	244300	0.4
KET-CLM-M27	M27	63	45	27	4	M10×45	8	60	238200	82	309200	0.7
KET-CLM-M30	M30	65	48	30	4	M10×50	8	73	293700	82	381250	0.8
KET-CLM-M33	M33	72	53	32	5	M12×50	8	89	355800	82	461880	1.0
KET-CLM-M36	M36	78	58	34	5	M12×50	8	106	423430	82	549650	1.3
KET-CLM-M39	M39	81	61	38	5	M12×56	10	99	496950	105	645100	1.6
KET-CLM-M42	M42	92	72	40	5	M12×58	12	96	576350	125	748150	2.1
KET-CLM-M45	M45	92	72	42	6	M12×60	12	110	661620	143	858850	2.2
KET-CLM-M48	M48	100	75	45	6	M16×65	8	188	752780	244	977150	2.8
KET-CLM-M52	M52	108	80	48	6	M16×65	8	221	883460	287	1146800	3.5
KET-CLM-M56	M56	109	84	50	6	M16×70	10	205	1024600	266	1330000	3.7
KET-CLM-M60	M60	113	88	55	6	M16×75	10	235	1176200	67	1526800	4.4
KET-CLM-M64	M64	114	92	58	8	M16×80	10	268	1338270	347	1737180	4.7
KET-CLM-M68	M68	122	96	60	8	M16×80	10	302	1510780	292	1961100	5.6
KET-CLM-M72	M72	126	100	65	8	M16×85	12	282	1693750	366	2198350	6.5
KET-CLM-M76	M76	129	104	68	8	M16×90	12	315	1887170	408	2449700	7.1
KET-CLM-M80	M80	134	108	70	8	M16×90	12	349	2091000	452	2714300	7.9
KET-CLM-M90	M90	156	130	78	8	M16×100	16	331	2646500	429	3435340	11.9
KET-CLM-M100	M100	192	160	86	8	M20×110	16	502	3267250	651	4241160	19.8
KET-CLM-M110	M110	224	192	95	10	M20×120	20	486	3953250	630	5131800	29.8
KET-CLM-M120	M120	238	154/200	108	10	M20×130	24	482	4703700	453	6614950	38.2
KET-CLM-M140	M140	268	174/236	126	12	M20×150	36	437	6403500	567	8311740	56.6
KET-CLM-M160	M160	268	194/256	144	12	M20×165	36	570	8364100	741	15856600	74.6

KIET Tour

Applications

[Hydraulic Bolt Tools] Use occasions

Our common hydraulic wrenches, hydraulic tensioners, etc. in the disassembly and assembly of bolts and nuts, as well as various multipliers, super nuts, nut splitters and other hydraulic bolt tools.

Industry Applications：Oil&Gas
