KET-NCSplit Type Hydraulic Nut Splitter

Features: It is more suitable when electricity and gas are strictly prohibited.

Uses: Disassembly of damaged nuts with rust and bite, thread bump and damage.

Split Type Hydraulic Nut Splitter
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail
Description:

Split type hydraulic nut splitter is used in industrial equipment in the open air, high temperature or corrosive environment, there rust corrosion killed, thread bump damage, etc. To remove the nut of the place, usually remove the rust nut is very difficult.

The usual practice is to use (gas) welding nut and bolt together cutoff, but in some special circumstances, some prohibit welding operation. Such as coal mines, coal-fired power plant coal storage, pipeline and high-pressure high-temperature pipelines, etc., replace the nut bolt even more difficult.

Features:
  • Spring return or double acting hydraulic return;

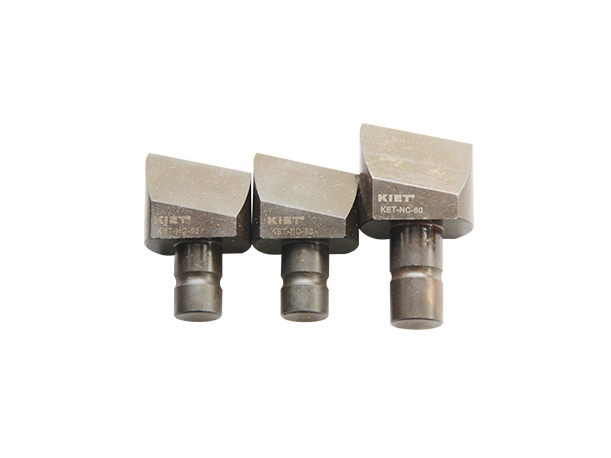

  • Three-blade blade design, a host machine can provide three blades;
  • Interchangeable working head provides maximum nut adaptability;
  • The extension distance of the blade is convenient for the preset, and ensures that the bolt is
  • not damaged;
  • Aluminum handle to make work more reliable, more convenient operation;
  • Cylinder body nickel-plated treatment, protecting tools from corrosion and harsh environment;
  • Built-in safety valve to provide overload protection.
Specs& Dims
Technical Parameters of Split Type Hydraulic Nut Splitter
Model Thread Diameter (mm) Across Flats (A/F) (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Weight (kg)
KET-NC-1319 6-11 13-19 40 220 6 19 28 48 0.8
KET-NC-1924 11-14 19-24 55 227 8 25 38 71 2.0
KET-NC-2432 14-19 24-32 66 260 10 31 49 76 3.0
KET-NC-3241 19-25 32-41 75 286 15 35 66 89 4.4
KET-NC-4150 25-32 41-50 96 325 21 45 73 109 8.2
KET-NC-5060 32-38 50-60 106 366 27 54 126 126 12
KET-NC-6075 38-48 60-75 156 367 27 75 110 180 34
Technical Parameters of Ultra High Pressure Hydraulic Nut Splitters
Model Across flats(A/F) (mm) Bolt Diameter (mm) Capacity (T) Oil Capacity (cm³) Weight (kg)
KET-NS-70-80 70-80 M45-M52 100 377 37
KET-NS-70-85 70-85 M45-M56 100 377 37
KET-NS-70-95 70-95 M45-M64 100 377 38
KET-NS-70-105 70-105 M45-M72 100 377 39
KET-NS-70-115 70-115 M76-M80 200 819 69
KET-NS-70-130 70-130 M76-M90 200 819 71
