Gasoline Engine Hydraulic Pump
Request a Quote
We will respond to your inquiry within 8 hours

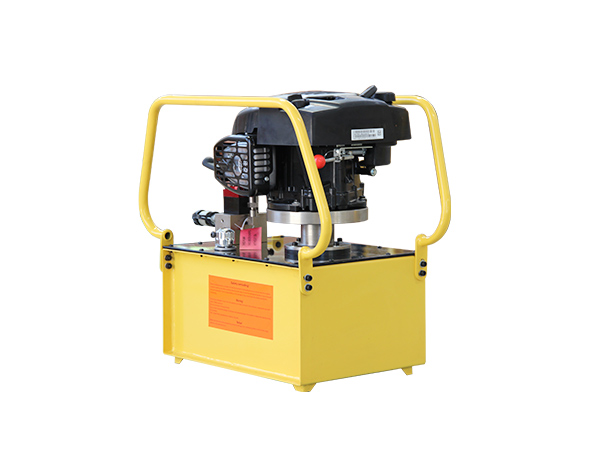

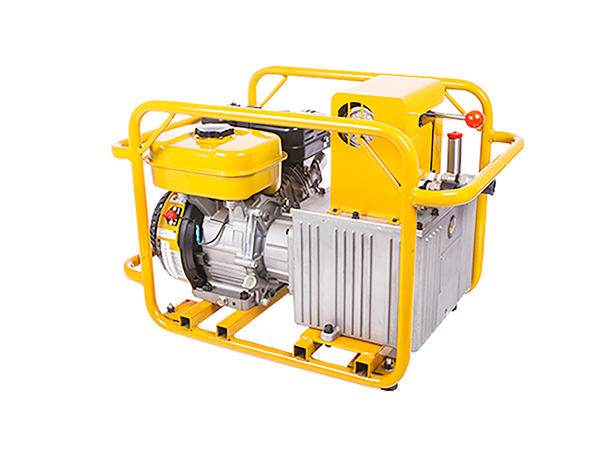

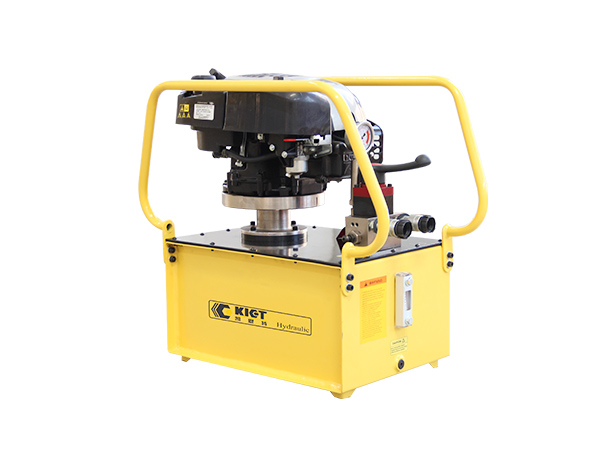

KET-QBZGasoline Engine Hydraulic Pump

Features: Large oil storage capacity, can withstand large capacity crimping equipment and is suitable for long-term operation, so as not to overheat the engine.

Uses: Adopts a high and low voltage dual-speed automatic switching design, and is equipped with crimping machines such as 60T, 100T, 200T, 300T, etc.

Gasoline Engine Hydraulic Pump
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail
Features:
  • Large oil tank. It can be used together with high capacity hydraulic tools for a long time.
  • Gasoline engine driven, suitable for construction work with hydraulic tools in the field
  • Rated pressure is 70MPa.
  • Low noise, environmental protection design. Efficient and fast output performance.
  • Simple construction, easy operation, light weight for easy moving.
  • Dual-circuit manual control, internal design return pressure protection
  • Safety relief valve, good protection for the crimping equipment.
Specs& Dims
Model Working Pressure (MPa) Oil Tank Capacity (L) Engine Rotating Speed (rpm/min) High Pressure Flow (L/min) Low Pressure Flow (L/min) Weight (with hydraulic oil) (kg)
KET-QBZ-700 70 16 3600 1.5 6 53
KET-HPE-700 70 42 3600 1.5 6 58
