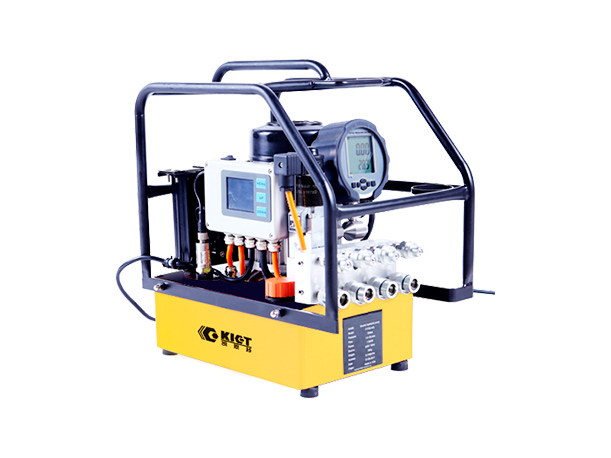

KET-PTIntelligent Electric Hydraulic Pump for Hydraulic Wrench

Features: The automatic mode and manual mode can be switched arbitrarily.

Uses: Hydraulic wrench power source.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry

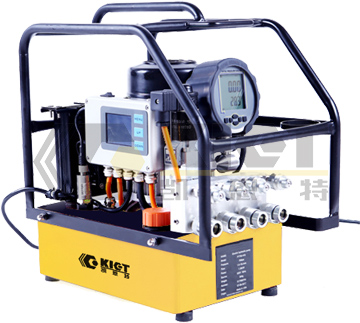

Intelligent Electric Hydraulic Pump for Hydraulic Wrench
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail
Features:
  • The pressure display uses an electronic LED digital display device, the pressure unit is a standard (bar, MPa and psi) unit and displays the temperature, the hydraulic pump has thermal overload protection, and the oil temperature exceeds 80 ° C automatically stops to protect the pump body.
  • The operation LCD screen displays torque N.m, and pressure Mpa, PSI and other units.
  • The hydraulic pump can be switched between automatic mode and manual mode at will, and the green button can be automatically tightened continuously.
  • The fully automatic hydraulic pump is self-diagnostic and tested.
  • Optional: The handle can be equipped with a CNC operator panel to control the pressure and torque of the hydraulic pumping station.
  • Optional: Each bolt, workstation, staff and installation date is numbered, and the device automatically saves the installation results and has the function of uploading data online or wirelessly.
Intelligent Electric Hydraulic Pump for Hydraulic Wrench

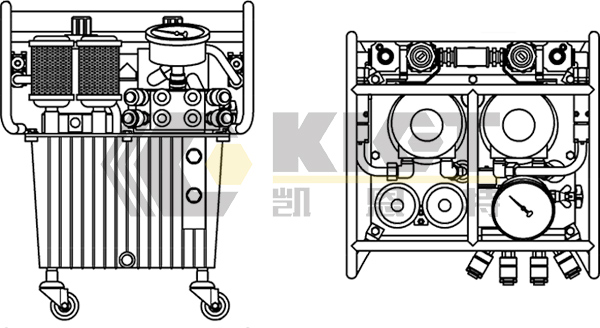

Specs& Dims
Intelligent Electric Hydraulic Pump for Hydraulic Wrench
Model Working Pressure (MPa) Flow   (L/min) Oil Tank Capacity (L) Motor  Power (KW) Power Supply Dimensions (mm) Weight (kg)
KET-PT-702 70 0.7-1.8-6.5 6 0.55 230v,50Hz 600×460×500 25
KET-PT-703 70 1.3-3.4-8.5 6 1.1 230v,50Hz 600×460×500 30
KET-PT-706 70 2.0-5.2-12.0 20 2.2 230v,50Hz 600×460×500 50
