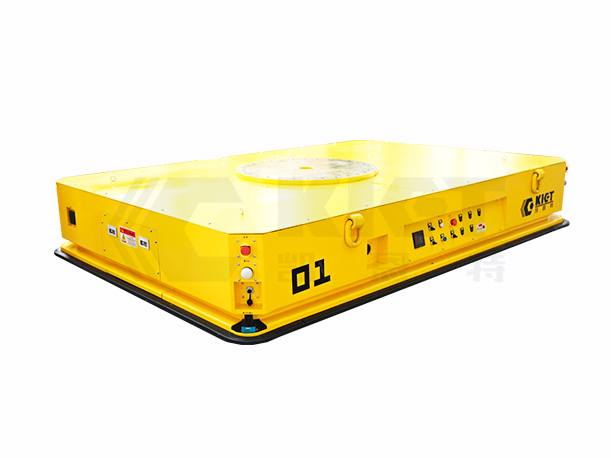

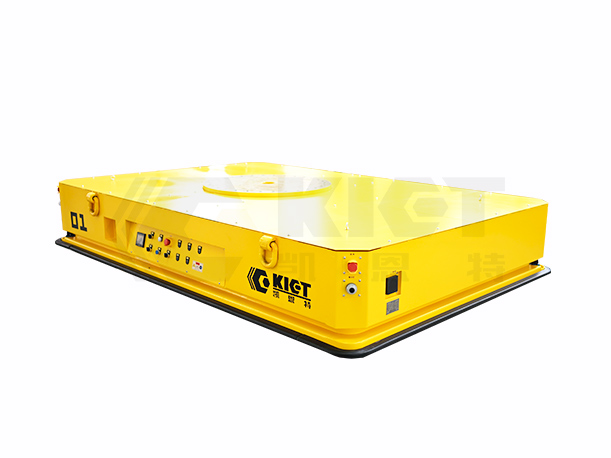

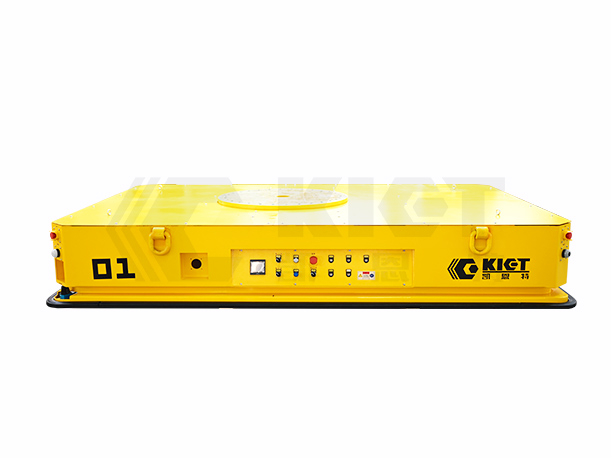

AGV intelligent Heavy-duty Transfer Vehicle
Request a Quote
We will respond to your inquiry within 8 hours
KET-AGVAGV intelligent Heavy-duty Transfer Vehicle

Features: Automated and unmanned devices with all-round intelligent mobile functions.

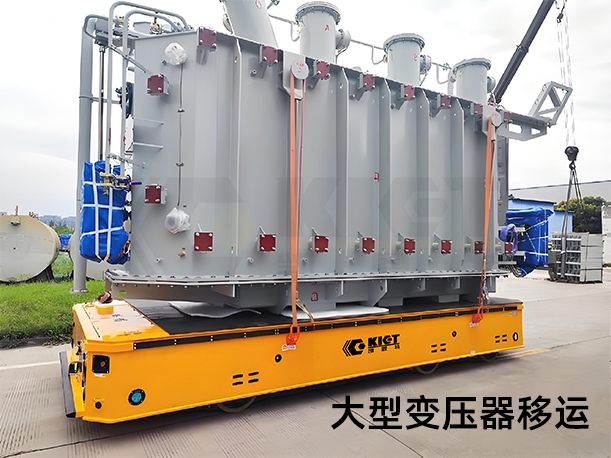

Uses: It is applied to the manufacturing and maintenance of subways and high-speed railways, the relocation of power facilities and the heavy-load relocation in industry.

AGV intelligent Heavy-duty Transfer Vehicle
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail

Intelligent heavy duty transfer vehicle adopts multi-wheel drive. Through the signal feedback of sensors combined with the effective control of the control system, the working performance of the heavy duty transfer vehicle is greatly improved. It can be expanded, communicated and integrated with various industrial equipment and devices to become an automated and unmanned device with all-round intelligent mobile functions. The smooth transfer in confined Spaces, the precise connection and assembly of large objects, the transfer and the maintenance of high-precision and advanced machinery and equipment play an irreplaceable role that ordinary vehicles cannot match.

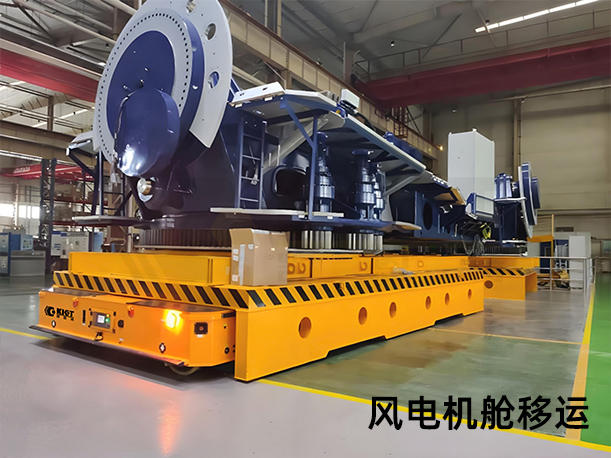

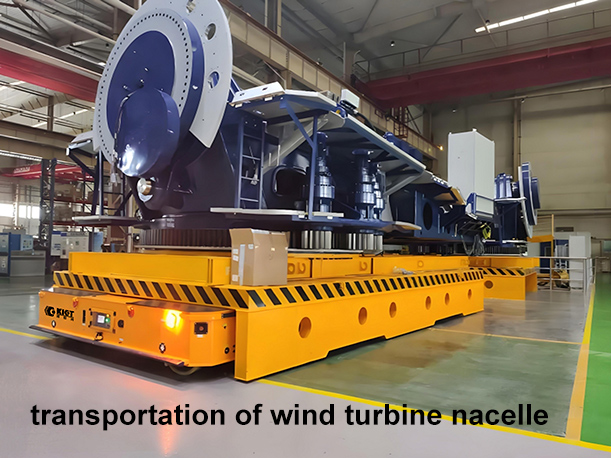

At present, intelligent heavy duty transfer vehicles are widely used in the manufacturing and maintenance of subways and high-speed railways. The manufacturing and maintenance of aircraft Places for the transportation and assembly of aerospace vehicles, etc. The handling and other fields of automated logistics and warehousing systems. It is an important equipment for future intelligent manufacturing, automation industries and digital factories.

Product Features:
  • Efficient operation: AGV intelligent heavy duty transfer vehicles can operate continuously for 24 hours, significantly enhancing production efficiency, reducing labor costs and the risk of work-related injuries.
  • Precise positioning: Some AGV intelligent heavy-duty transfer vehicles are equipped with LIDAR, with a positioning accuracy of ±5mm, ensuring a precise and error-free handling process.
  • Strong adaptability: By adopting McKnum wheels or other drive mechanisms and hydraulic lifting modules, it can achieve 360° omnidirectional movement and freely adjust the load, adapting to complex environments.
  • Safe and reliable: Equipped with LIDAR, 3D vision and ultrasonic sensing, it can achieve millimeter-level obstacle avoidance to ensure safety operation.
  • Strong load capacity: The load capacity range of AGV intelligent heavy duty transfer vehicles varies from 20 tons to 600 tons, capable of transporting heavy equipment and meeting the high load-bearing requirements in industrial production.
Specs& Dims
MODEL KET-AGV-20 KET-AGV-30 KET-AGV-40 KET-AGV-70 KET-AGV-100 KET-AGV-150 KET-AGV-150 KET-AGV-200 KET-AGV-300 KET-AGV-400 KET-AGV-500 KET-AGV-600
L(mm) 2800 3500 4700 4100 5200 6300 4800 6300 7500 9100 11000 12500
W(mm) 1600 2300 2380
H(mm) 320 360 420
VEHICLE FRAME LIFTING AND LOWERING
LIFTING AND LOWERING FORM HYDRAULIC
VEHICLE'S SELF-LIFTING STROKE (mm) 0-70 0-80 0-100
DYNAMIC LOAD CAPACITY
RATED LOAD, NET LOAD (t) 20 30 40 70 100 150 150 200 300 400 500 600
IMPACT RESISTANCE CAPACITY 1.5
SELF-WEIGHT OF THE EQUIPMENT (t) 3 4 5 5 6 8 6 9 12 16 20 26
REQUIREMENTS FOR GROUND LOAD CAPACITY (t/㎡) 5 10 15 20
DRIVE UNIT
DRIVE FORM OMNIDIRECTIONAL TYPE (DIFFERENTIAL ASSEMBLY)
NUMBER OF DRIVE UNITS 4 6 8 4 6 8 4 6 8 10 12 14
WHEEL DIAMETER (mm) 180 250 320
TIRE MATERIAL POLYURETHANE (HYDROLYSIS-RESISTANT/OIL-RESISTANT)
POWER SUPPLY
BATTERY TYPE LITHIUM IRON PHOSPHATE BATTERY
BATTERY VOLTAGE DC48V DC96V( HIGH-VOLTAGE SYSTEM CAN BE CUSTOMIZED )
BATTERY CAPACITY (kWh) 13 20 20 25 25 60 90
TYPICAL BATTERY LIFE 6h( IT CAN BE CUSTOMIZED FOR 12 HOURS ACCORDING TO THE USER'S REQUIREMENTS)
FULL CHARGE TIME ≤ 3h( FAST CHARGING CAN BE CUSTOMIZED )
CHARGER POWER SUPPLY SINGLE PHASE AC220V/ THREE PHASE AC380V-440V
POWER DEMAND OF CHARGER (kW) 5 10 20
CHARGING AND DISCHARGING MODE MANUAL BATTERY CHARGING \ BATTERY SWAPPING
