Gauge Adaptor
KET-YJTGauge Adaptor

特性：Special watch seats are convenient for mounting the pressure gauge on the watch seats.

用途：Used for installation of pressure gauge.

产品手册下载
拨打 0523-86186888
免费获取报价
Gauge Adaptor
  • 详细说明
  • 技术参数
  • 相关产品
返回上级
详细说明

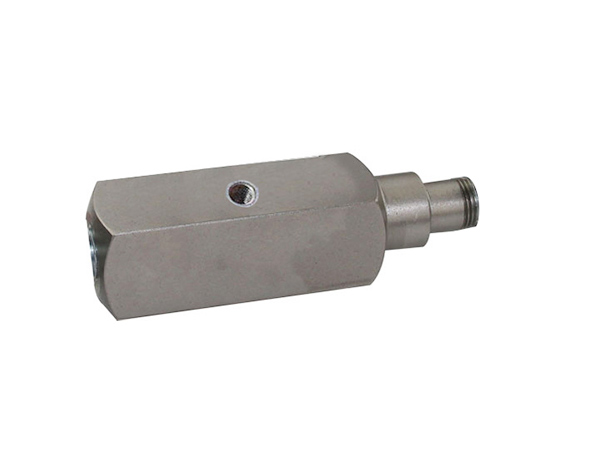

Gauge adaptor can connect with pressure gauge conveniently, used for the connection of hydraulic tool and pressure gauge. Male coupler thread is connected with cylinder, pump station and other hydraulic tools, female coupler thread is connected with hose and quick coupling. The third thread is used for the installation of pressure gauge which is convenient for pressure monitoring.

技术参数

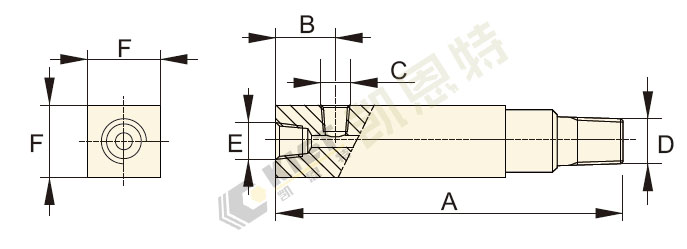

Model Gauge Coupler C(NPTF) Male Coupler D(NPTF) Female Coupler E(NPTF) Dimensions（mm）
A B C D E F
KET-YJT-C71 1/2 3/8 3/8 71 31 1/2NPTF 3/8NPTF 3/8NPTF 32
KET-YJT-C155 1/2 3/8 3/8 155 35 1/2NPTF 3/8NPTF 3/8NPTF 32
KET-YJT-C133 1/4 3/8 3/8 133 48 1/4NPTF 3/8NPTF 3/8NPTF 32
KET-YJT-C111 1/2 1/4 3/8 111 35 1/2NPTF 1/4NPTF 3/8NPTF 32
KET-YJT-C90 1/4 3/8 3/8 90 28 1/4NPTF 3/8NPTF 3/8NPTF 26H
KET-YJT-C50L 1/4 1/4 1/4 50 - 1/4NPTF 1/4NPTF 1/4NPTF 38
KET-YJT-C50Q 1/4 3/8 3/8 50 - 1/4NPTF 3/8NPTF 3/8NPTF 38
