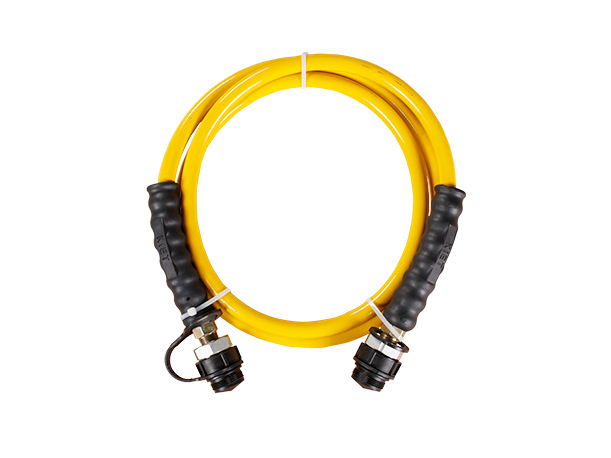

The reinforcement of hydraulic hose is high strength steel wire winding layer with special treatment. Outside jacket is polyurethane material to provide the maximum abrasion resistance. Small fluid resistance, small volume expansion, good chemical corrosion resistance, light weight small outside diameter, which greatly facilitates the use of various types of hydraulic tools. All hydraulic hoses conduct over-pressure testing before they leave the factory. High pressure bearing capacity, the maximum working pressure is up to 70MPa.

• For demanding applications, featuring a 4:1 safety factor;
• Applicable temperature: -40℃ ~100℃;
• Outside jacket is polyurethane, to provide maximum abrasion resistance;
• Both ends of hydraulic hose with NPT3/8 thread;
• Exhibits low volumetric expansion under pressure to enhance overall system efficiency.

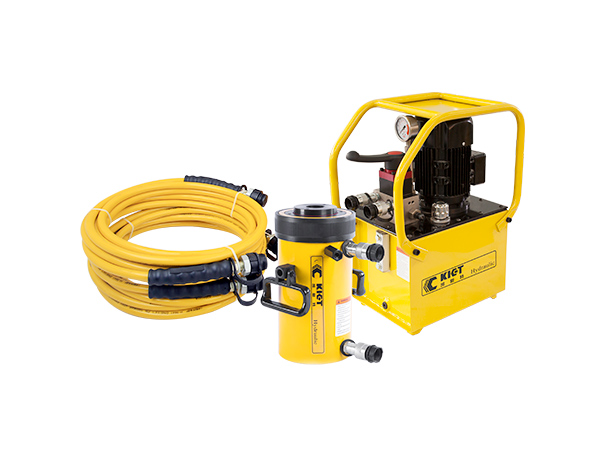

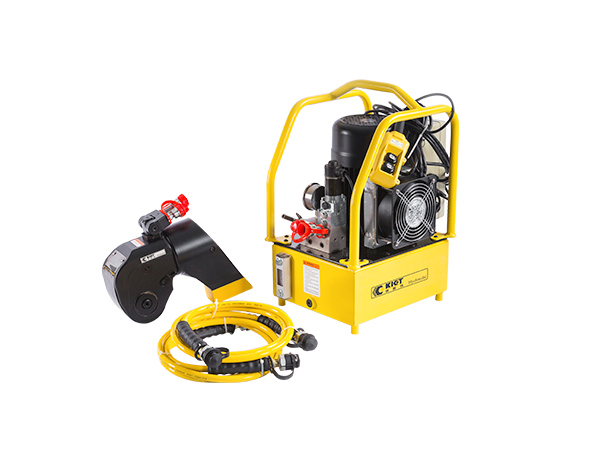

• Supporting the use of hydraulic cylinders, hydraulic pullers, hydraulic flange tools, hydraulic torque wrenches, nut splitters and is also suitable for other 70MPa pressure hydraulic tools.
