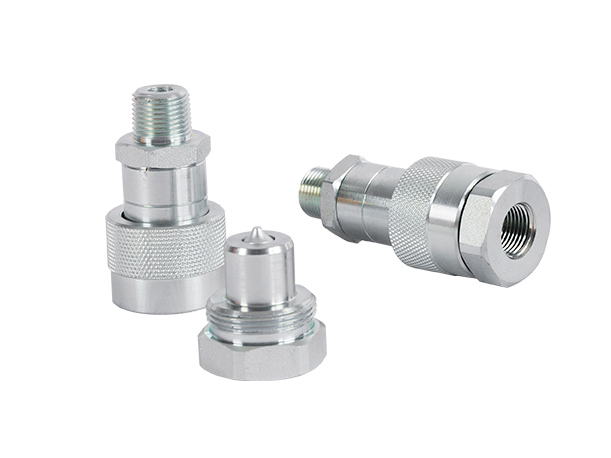

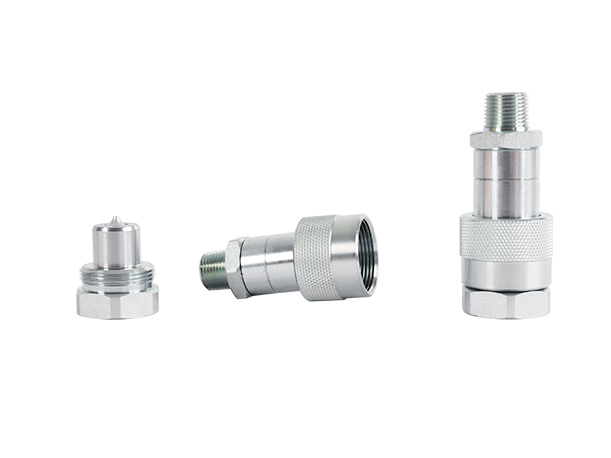

Hydraulic Couplers
KET-NPT3/8、1/4Hydraulic Couplers

特性：Large flow rate, high pressure resistance, each set of hydraulic joints is equipped with threaded protective sleeve.

用途：Used with various hydraulic tools.

产品手册下载
拨打 0523-86186888
免费获取报价
Hydraulic Couplers
  • 详细说明
  • 技术参数
  • 相关产品
返回上级
详细说明
Features:
  • Hydraulic couplers can be matched with hydraulic cylinder, hydraulic flange tools, hydraulic puller and other hydraulic tools.
  • High flow, high pressure resistance, each hydraulic coupler set is equipped with dust cap
  • Base of the male coupler is galvanized.
  • Optimized valve core design to ensure high flow and high sealing reliability
  • Max. working pressure: 70MPa
技术参数
Model Working Pressure（MPa） Male connector Female connector Female connector Connection Mode Matched Hydraulic Tools Matching tool
KET-NPT3/8 70MPa C701G C701M Internal/external thread NPT3/8” Thread connection Hydraulic cylinders,Hydraulic  flange tools, Hydraulic pullers Hydraulic wrench
KET-NPT-1/4 70 MPa C702G C702M  Internal/external thread NPT1/4” Thread connection Hydraulic torque wrench Hydraulic jack
