KET-FPDHydraulic Manifolds

特性：The port adopts standard NPT3/8 threads.

用途：Used to connect hydraulic pump stations with multiple hydraulic jacks.

产品手册下载

拨打 0523-86186888

免费获取报价

Hydraulic Manifolds

详细说明
技术参数
相关产品

返回上级

详细说明

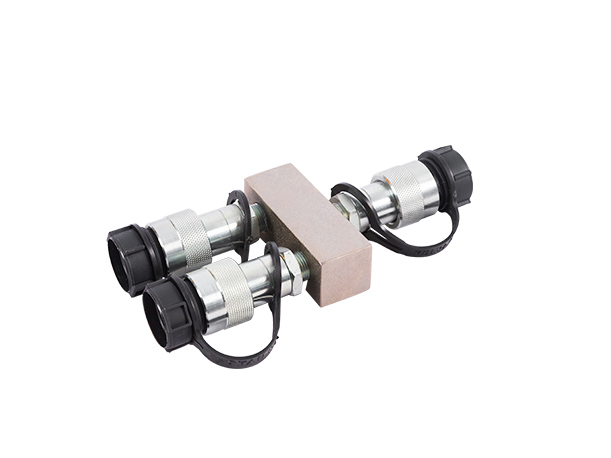

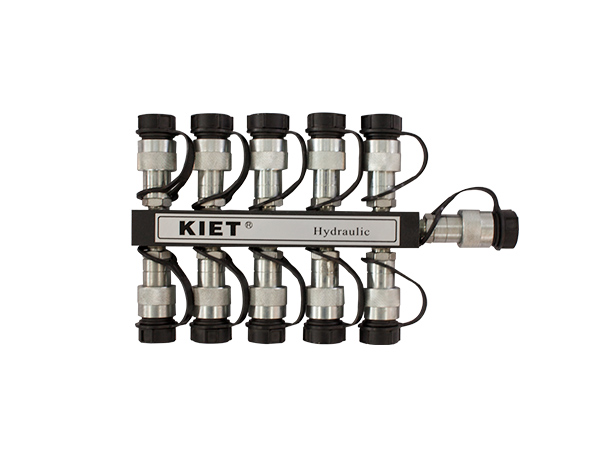

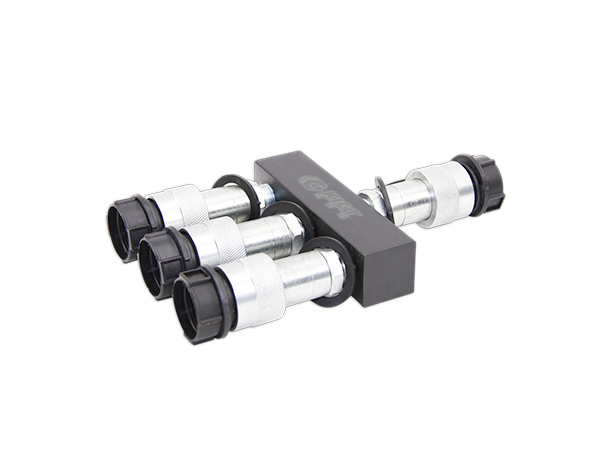

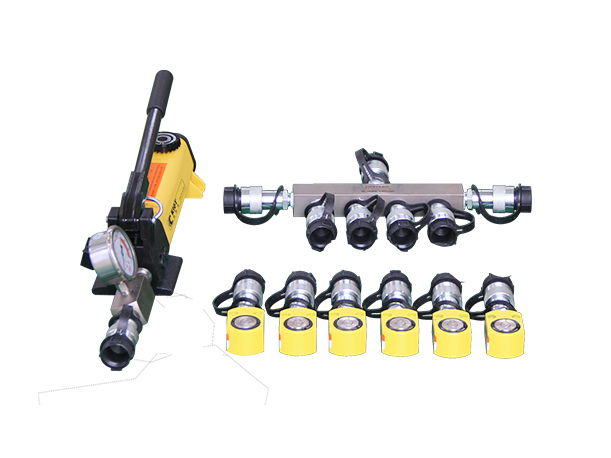

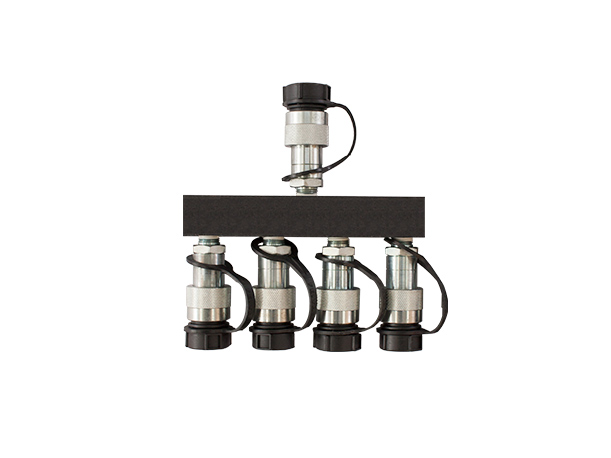

Hydraulic manifold is used for synchronous lifting of hydraulic pump station and multiple hydraulic cylinders, in the case of 1 set of hydraulic pump driving multiple hydraulic cylinders and other hydraulic tools, need to match the corresponding manifold. Oil port of manifold is standard NPT3/8” thread.

技术参数

Features:

Model	Working Pressure (MPa)	Number of outlets	Thread（in）	Matched Hydraulic Tool
KET-FPD-70-2	70	2	NPT3/8” internal thread	Hydraulic cylinder, hydraulic flange tool
KET-FPD-70-4	70	4	NPT3/8” internal thread	Hydraulic cylinder, hydraulic flange tool
KET-FPD-70-6	70	6	NPT3/8” internal thread	Hydraulic cylinder, hydraulic flange tool
KET-FPB-70-2	70	2	NPT1/4” internal thread	Hydraulic torque wrench
KET-FPB-70-4	70	4	NPT1/4” internal thread	Hydraulic torque wrench
KET-FPB-70-6	70	6	NPT1/4” internal thread	Hydraulic torque wrench
KET-FPB-70-8	70	8	NPT1/4” internal thread	Hydraulic torque wrench
