PLC jacking and slope control system is a control system that uses PLC technology to realize jack jacking and slope adjustment, which is used to control the lifting and tilt angle adjustment of the beam body in the overall jacking and slope adjustment project of bridge construction. The system usually consists of PLC controllers, sensors, hydraulic control valves and actuators, etc.
How to use:
1. Install the sensor: Install the sensor at the location where it needs to be measured, such as jacking device, tilt device, etc., to obtain the height and tilt angle of the object in real time.
2. Connect the hydraulic control valve and actuator: Connect the hydraulic control valve and actuator to the jack and tilt device to control the hydraulic system's work.
3. PLC programming: Through PLC programming software, write control programs, set control logic and adjust parameters. In programming, different control conditions and safety protection mechanisms need to be taken into account to ensure the normal operation and safety of the system.
4. Control Operation: Interact with the PLC controller through the operation panel or touch screen, etc., to set the required parameters such as jacking height, tilt angle, and adjustment speed.
5. System operation: Start the PLC controller, and the system starts working. The PLC controller will control the operation of the hydraulic control valve and actuator according to the written program logic and the data feedback from the sensor, so as to realize the control of jacking and slope adjustment.
6. Monitoring and adjustment: During the operation of the system, data such as jacking height and tilt angle are monitored in real time, and accurate control of jacking and slope adjustment is ensured through data analysis and adjustment.
The PLC jacking and slope control system utilizes the flexibility and programmability of PLC technology to achieve precise control of jack jacking and slope adjustment. It can improve work efficiency, reduce manual intervention, and ensure operational accuracy and safety.

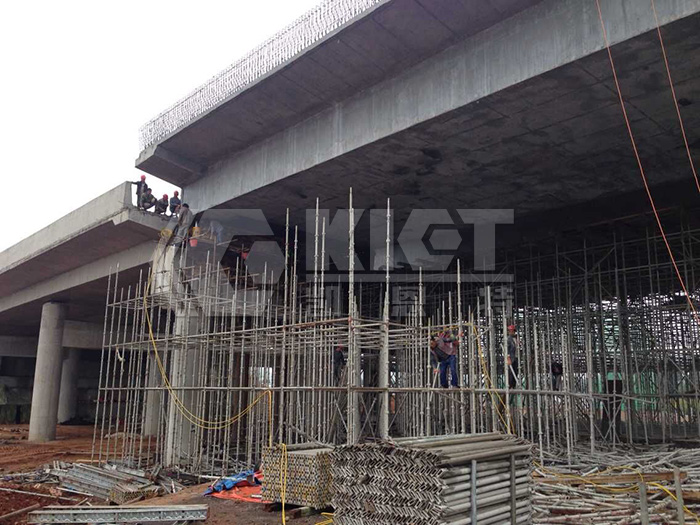

PLC jacking and slope control system is applied to Kunming Puxuan high-speed cast-in-place 2000T box girder drop girder 2.4 meters
For more information on slope regulation technology, you can check out the following article "Explanation of Bridge Overall Proportional Slope Regulation and Jacking Technology Key words: PLC control synchronous jacking system"
