In addition to training personnel to use our products skillfully, they also need to conduct on-site inspections to make plans and suggestions for the current project.
The three-dimensional adjustment equipment is used to realize the high-precision assembly of ships, and the use of automated measurement to ensure the displacement, offset and rotation parameters between the hull and parts can save labor, improve the assembly efficiency, and ensure the level and accuracy of the ship structure.

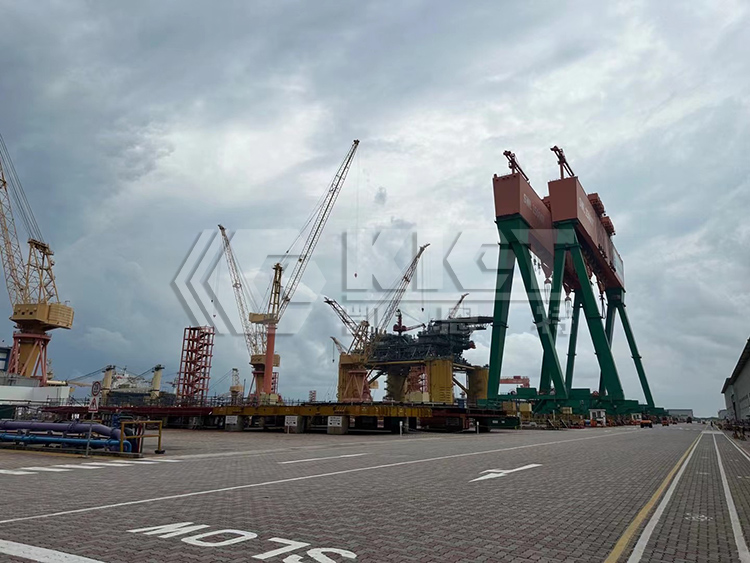

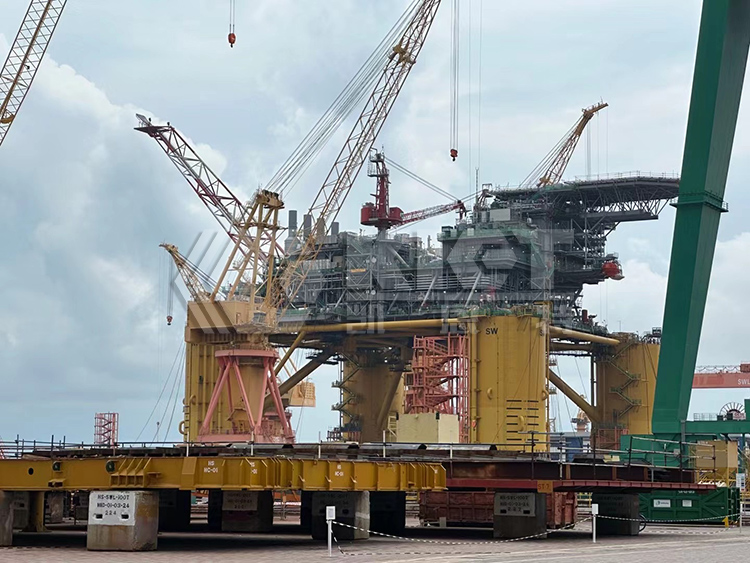

Ship segmented assembly site
Ship segmented assembly site
Shipbuilding uses a segmented adjustment process, which can save time and resources, and can be tailored to the ship to ensure that the ship design requirements are met and manufacturing costs are reduced.
Caint provides three-dimensional adjustment equipment for many shipyards at home and abroad all year round, and the products are widely praised, welcome to consult and negotiate!

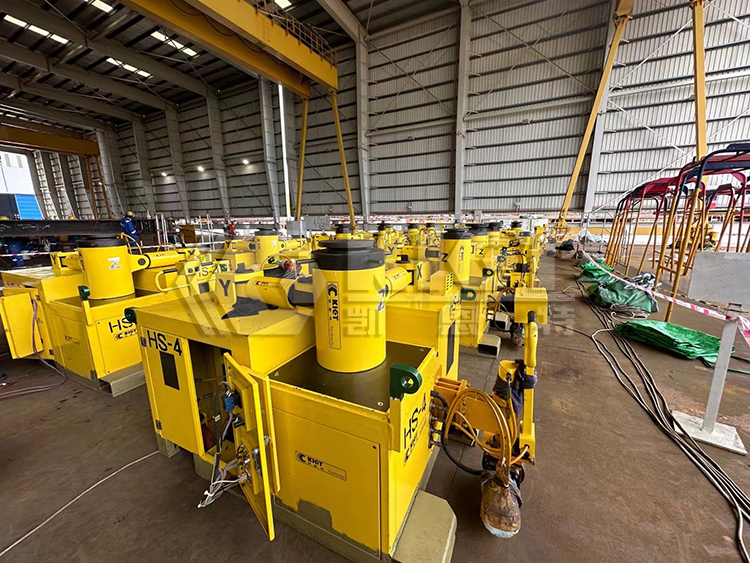

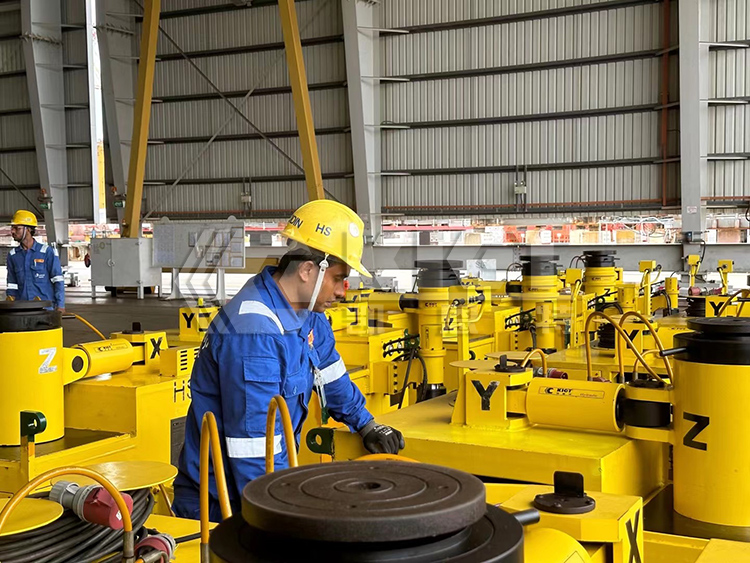

This time the three-dimensional adjustment equipment parameters are shown:
Single jacking capacity: 250 tons;
Vertical adjustment range: 0-250mm;
Horizontal adjustment range: 0-150mm;
Tiltable angle: 5°
Operation mode: wire control handle (standard), main console (optional);
Transportation mode: with power walking (hydraulic motor), crane lifting (equipped with hooks), forklift shoveling (equipped with shovel holes).
Number of simultaneous uses: 8 units;
