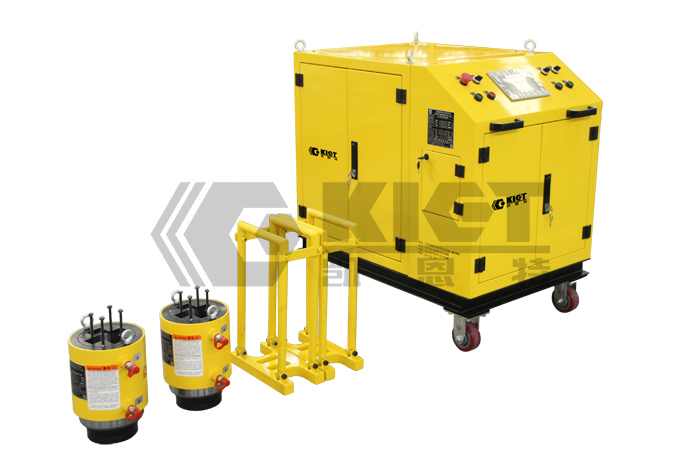

Special tooling for pulling out the rotor magnetic pole key

Special tooling for pulling out the rotor magnetic pole key

Key pulling tooling parameters:

Nominal pull-force: 267KN

Maximum pull-out force：340KN

Rated working pressure: 22MPa

Maximum working pressure: 28MPa

Pull-out stroke: 100mm

Suitable for key pulling specifications: length 24-27mm× thickness ≤22mm

Pumping station parameters:

Motor power: 2.2KW

System flow: 3.6L/min

Rated working pressure: 25MPa

Maximum working pressure: 30MPa
