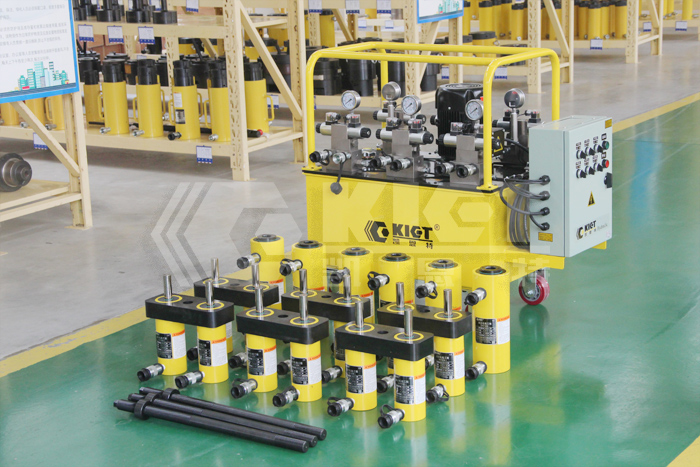

Vacuum Roll Tooling

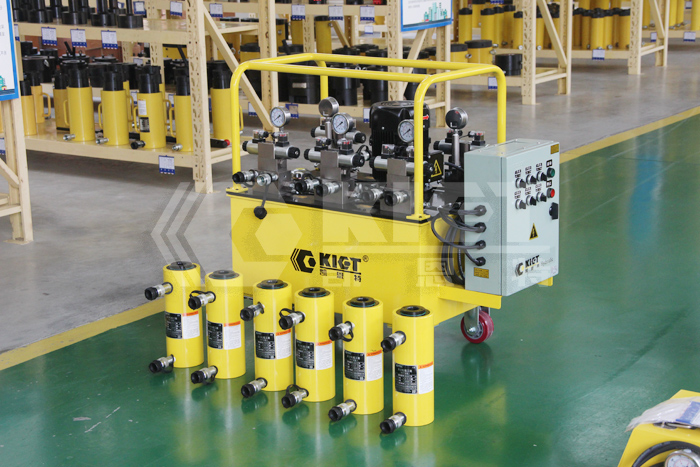

Vacuum Roll Fixture (for installation)

Vacuum Roll Fixture (for installation) Parameters:

Model: KET-AZ-30T-178

Working stroke: 178mm

Jacking Lift: 30T

Body height: 633mm

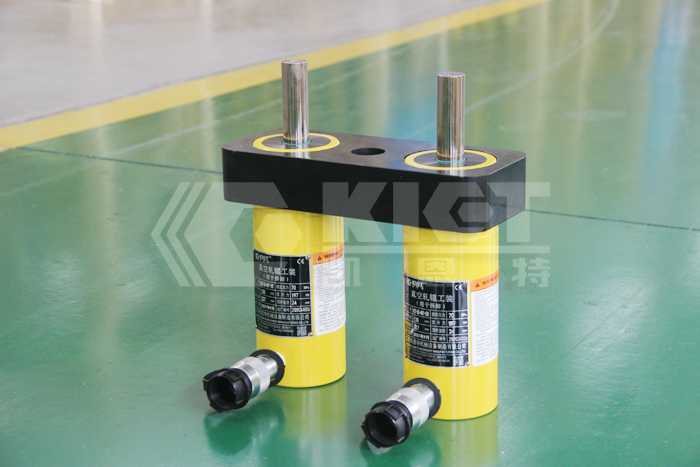

Vacuum roll fixture (for disassembly)

Vacuum Roll Tooling (for Disassembly) Parameters:

Model: KET-CX-40T-130

Working stroke: 130mm

Jacking Lift: 40T

Body height: 227mm

Ejector rod diameter: 24mm

Parameters of double-acting synchronous quantitative hydraulic pump:

Model: KET-TZB-220

Rated flow: 6×0.25L/min

Motor power: 2.2KW
