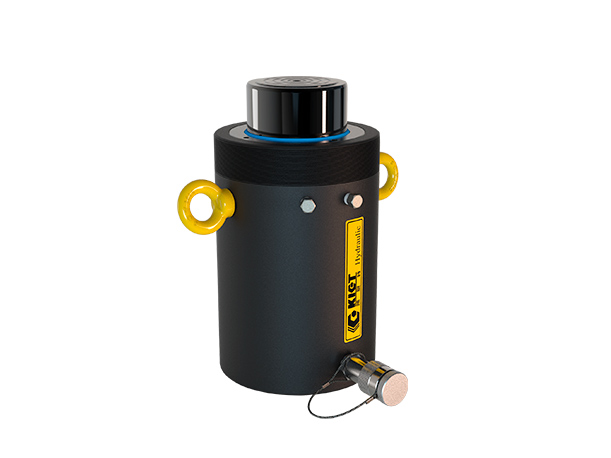

Single High Tonnage Hydraulic Cylinder (HCG Series)_Hydraulic Cylinders_Jiangsu Canete Machinery Manufacturing Co., Ltd.

Product Detail

Product Features：

The hardened surface is resistant to lateral loads and periodic wear
Withstands up to 10% side load resistance
A stop ring to prevent the plunger from overstretching
Replaceable bearings are mounted on both the upper and lower parts to provide support throughout the stroke of the plunger The cylinder block has an outer ring thread, mounting lugs, and mounting holes in the base
All models of jacks are equipped with 3/8-18NPT ultra-high pressure quick couplings and high strength aluminum titanium threaded protective sleeves

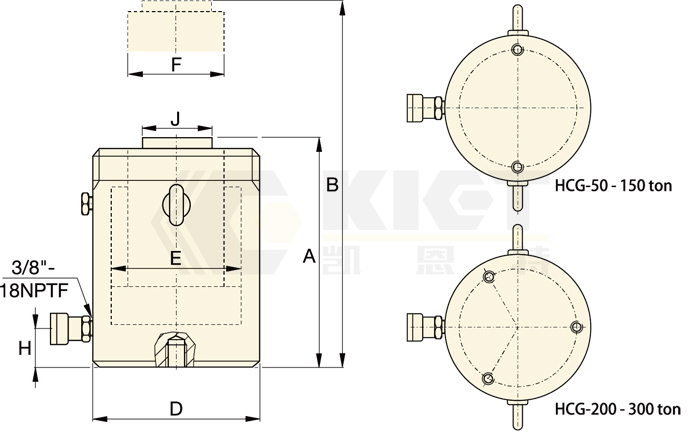

Specs& Dims

Model	Capacity (T)	Body Height A (mm)	Effective Stroke (mm)	Effective Area (cm²)	Hydraulic Oil Volume (cm³)	Cylinder outside diameter D (mm)	Plunger diameter F (mm)	Standard saddle diameter J (mm)	Weight (kg)
KET-HCG-502	50	183	50	78.5	393	130	70	50	17
KET-HCG-504		233	100		785				20
KET-HCG-506		283	150		1178				24
KET-HCG-508		346	200		1571				29
KET-HCG-5010		396	250		1963				32
KET-HCG-5012		446	300		2356				36
KET-HCG-1002	100	202	50	143.1	716	175	95	75	33
KET-HCG-1004		252	100		1431				40
KET-HCG-1006		302	150		2147				46
KET-HCG-1008		379	200		2863				58
KET-HCG-10010		429	250		3578				65
KET-HCG-10012		479	300		4294				71
KET-HCG-1502	150	220	50	213.8	1069	215	120	94	56
KET-HCG-1504		270	100		2138				66
KET-HCG-1506		320	150		3207				76
KET-HCG-1508		397	200		4276				94
KET-HCG-15010		447	250		5346				104
KET-HCG-15012		497	300		6415				115
KET-HCG-2002	200	231	50	283.5	1418	250	140	113	81
KET-HCG-2004		281	100		2835				95
KET-HCG-2006		331	150		4253				109
KET-HCG-2008		408	200		5671				136
KET-HCG-20010		458	250		7088				150
KET-HCG-20012		508	300		8506				164
KET-HCG-2502	250	241	50	363.1	1815	280	170	145	107
KET-HCG-2504		291	100		3631				125
KET-HCG-2506		341	150		5446				144
KET-HCG-2508		431	200		7261				182
KET-HCG-25010		481	250		9076				201
KET-HCG-25012		531	300		10892				219
KET-HCG-3002	300	296	50	433.7	2169	305	200	177	158
KET-HCG-3004		346	100		4337				182
KET-HCG-3006		396	150		6506				206
KET-HCG-3008		446	200		8675				230
KET-HCG-30010		496	250		10843				254
KET-HCG-30012		546	300		13012				278
KET-HCG-4002	400	321	50	572.6	2863	350	220	196	227
KET-HCG-4004		371	100		5726				257
KET-HCG-4006		421	150		8588				287
KET-HCG-4008		471	200		11451				317
KET-HCG-40010		521	250		14314				347
KET-HCG-40012		571	300		17177				378
KET-HCG-5002	500	344	50	730.6	3653	400	250	228	319
KET-HCG-5004		394	100		7306				359
KET-HCG-5006		444	150		10959				399
KET-HCG-5008		494	200		14612				439
KET-HCG-50010		544	250		18265				479
KET-HCG-50012		594	300		21918				519
KET-HCG-6002	600	352	50	855.3	4276	430	270	247	378
KET-HCG-6004		402	100		8553				424
KET-HCG-6006		452	150		12829				470
KET-HCG-6008		502	200		17106				516
KET-HCG-60010		552	250		21382				562
KET-HCG-60012		602	300		25659				608
KET-HCG-8002	800	404	50	1164.2	5821	505	320	297	606
KET-HCG-8004		454	100		11642				671
KET-HCG-8006		504	150		17462				735
KET-HCG-8008		554	200		23283				800
KET-HCG-80010		604	250		29104				864
KET-HCG-80012		654	300		34925				929
KET-HCG-10002	1000	442	50	1520.5	7603	570	340	323	840
KET-HCG-10004		492	100		15205				916
KET-HCG-10006		542	150		22808				992
KET-HCG-10008		592	200		30411				1068
KET-HCG-100010		642	250		38013				1145
KET-HCG-100012		692	300		45616				1221

KIET Tour

Applications

Hydraulic cylinders for Lifting Large Equipment

Hydraulic cylinders are compact yet capable of handling high loads, making them ideal for lifting and maintenance of large equipment. Below, we illustrate different types of hydraulic jacks used in various scenarios.
