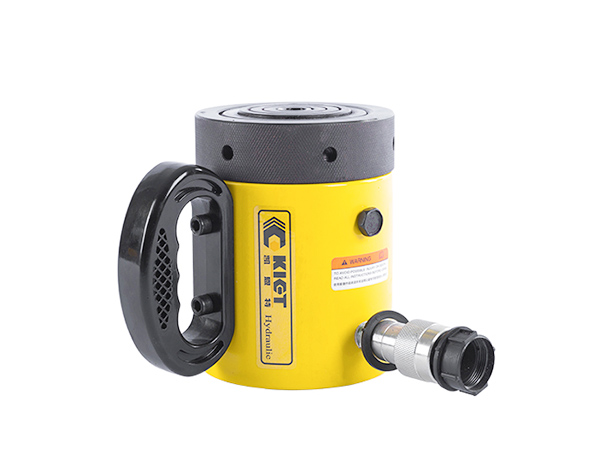

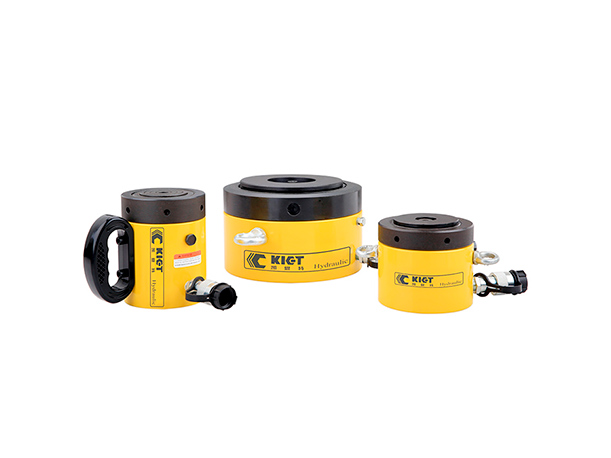

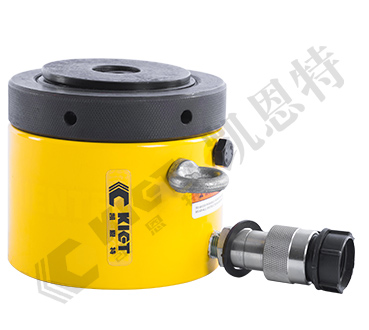

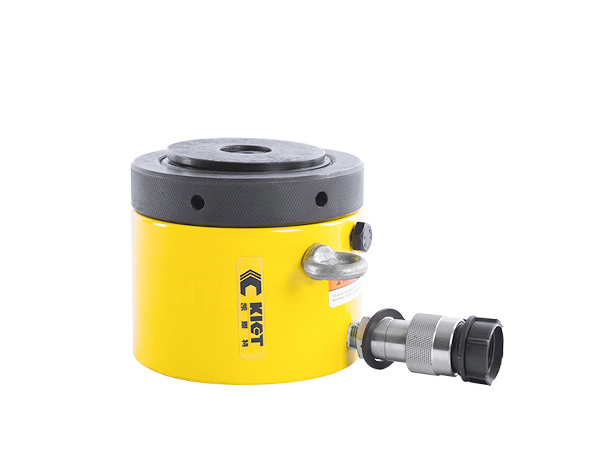

Flat self-locking hydraulic jacks are ideal for applications that require long-term lifting and support. The piston rod is threaded for mechanical locking.
● Max. Working pressure: 70MPa

● Single acting design, load return

● Suitable for lifting work which requires plunger extends for a long time

● Mechanical nut bearing with the load, so it can tighten

● the mechanical nut at any position in the stroke to make sure the operation safety

● Ultra-thin design, suitable for highly limited space

● Lateral load supported is equivalent 3% load capacity

● Cylinder equipped with ball type saddle to adapt component rough

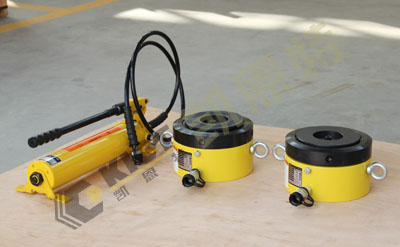

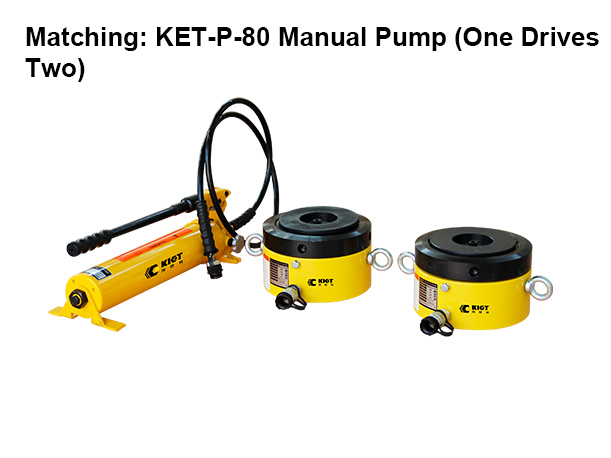

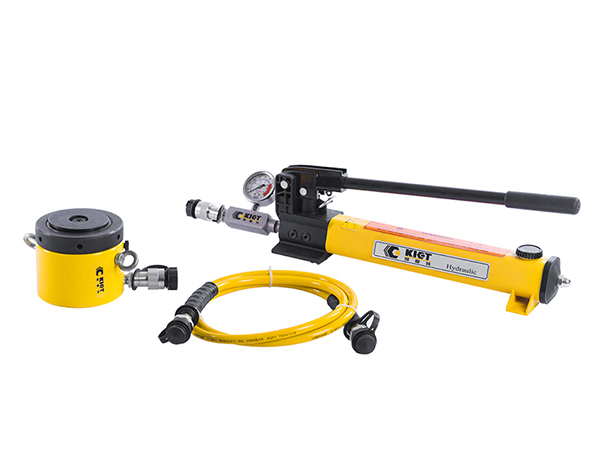

Self-Locking Jack with P-80 Manual Hydraulic Pump

● Operated manually, this configuration is perfect for locations without a power supply.

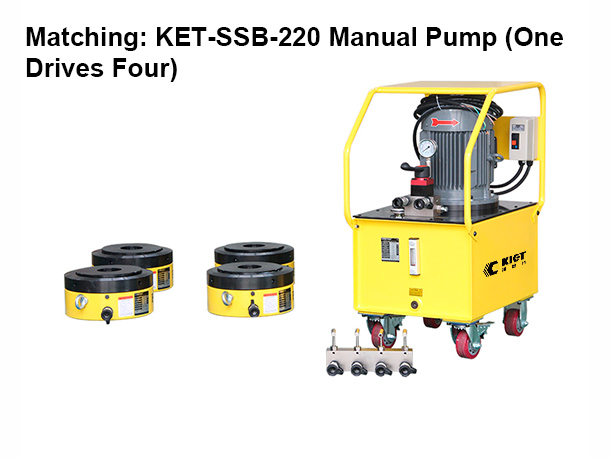

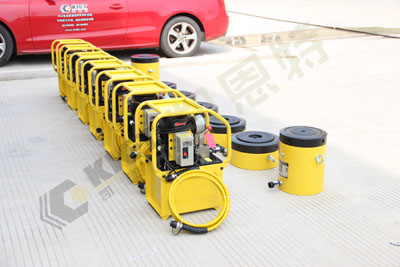

Self-Locking Jack with Electric Pump

● This setup quickly lifts the cylinder, saving time and labor.

24-Unit 50-ton Self-Locking Jack Synchronous Lifting System

● For synchronous lifting of multiple jacks, you can choose a pulse width controlled synchronous lifting system. This system ensures all lifting points are raised simultaneously with a maximum error of ≤0.5mm. It's often used for synchronous lifting projects in bridge construction and for the maintenance of large-scale equipment.
● For a single oil circuit with spring return, please select our separate-type jacks.

● For a lower body height and a larger working stroke, please consider our low profile hydraulic cylinders

● For higher lifting capacities (300 tons, 500 tons, or more), please choose our electric hydraulic jacks.

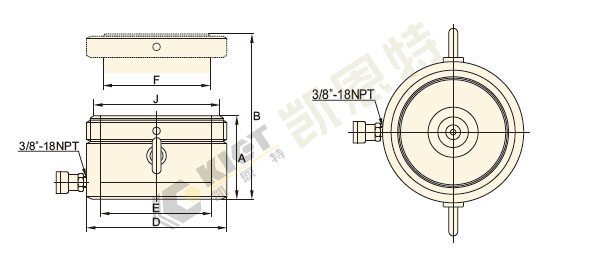

Specs& Dims

Model	Capacity	Stroke	Effective Area	Oil Capacity	Coll. Height	Ext. Height	O.D	Saddle Dia.	Weight
Model	(T)	(mm)	(cm2)	(cm3)	(mm)	(mm)	(mm)	(mm)	(kg)
KET-CLP-602	60	50	86.6	432	125	175	140	96	15
KET-CLP-1002	100	50	146.8	734	137	187	175	126	26
KET-CLP-1602	160	45	231.3	1040	148	193	220	160	44
KET-CLP-2002	200	45	285.6	1285	155	200	245	180	57
KET-CLP-2502	260	45	366.8	1650	159	204	275	200	74
KET-CLP-4002	400	45	559.5	2517	178	223	350	250	134
KET- CLP-5002	520	45	730.6	3287	192	237	400	290	189

Ultra High Pressure Single Acting Low Height Lock Nut Hydraulic Cylinder

Capacity	Capacity（T）	Working Pressure（MPa）	Coll. HeightA(mm)	Stroke(mm)	Effective Area(cm²)	Outside DiameterD(mm)	Plunger DiameterE(mm)	Tilting Angle (º)	Oil Capacity (L)	Weight (kg)
KET-HCLP-1002	100	200	137	50	50	118	80	5	0.25	11
KET-HCLP-2002	200	200	148	50	103	174	115	5	0.52	26
KET-HCLP-3002	300	200	160	50	154	198	140	5	0.77	33
KET-HCLP-4002	400	200	178	50	200	238	160	5	1.01	52
KET-HCLP-5002	500	200	180	50	254	256	180	5	1.27	67
KET-HCLP-10002	1000	200	192	50	452	320	240	5	2.26	108
