Features: Unique guiding design to improve the product's anti-eccentric load ability and durability.

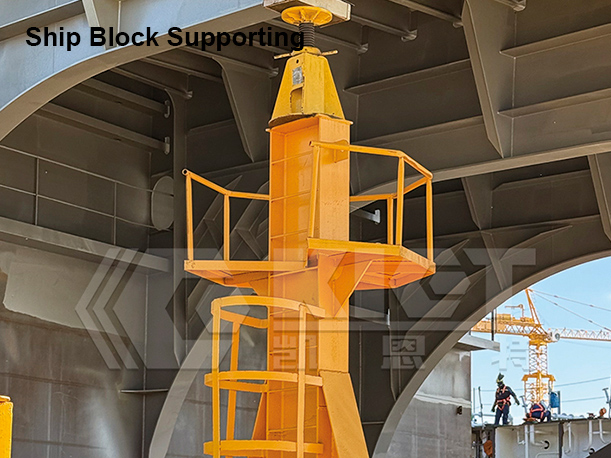

Uses: For long-term support of hull sections.
| Model No. | Capacity(t) | Closed Height(mm) | Height adjustment(mm) | Extension height(mm) | Tilt angle(°) | Fixture hole(mm) | Weight(kg) |
| KET-HJX-504 | 50 | 255 | 100 | 355 | 5 | 6 14 | 44 |
| KET-HJX-508 | 50 | 355 | 200 | 555 | 5 | 6 14 | 56 |
| KET-HJX-5012 | 50 | 455 | 300 | 755 | 5 | 6 14 | 68 |
| KET-HJX-1008 | 100 | 400 | 200 | 600 | 5 | 6 14 | 92 |
| KET-HJX-10010 | 100 | 450 | 250 | 700 | 5 | 6 14 | 104 |
| KET-HJX-2008 | 200 | 460 | 200 | 660 | 5 | 6 22 | 182 |
| KET-HJX-20012 | 200 | 560 | 300 | 860 | 5 | 6 22 | 213 |
| KET-HJX-3008 | 300 | 510 | 200 | 710 | 5 | 6 26 | 310 |
| KET-HJX-30012 | 300 | 610 | 300 | 910 | 5 | 6 26 | 310 |
