Square Drive High Torque Hydraulic Wrench
Request a Quote
We will respond to your inquiry within 8 hours
KET-DNBSquare Drive High Torque Hydraulic Wrench

Features: It can be equipped with large-size sleeves and extra-long sleeves to adapt to different working conditions.

Uses: Oil pipeline flange bolts are pre-tightened.

Square Drive High Torque Hydraulic Wrench
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail
Features:

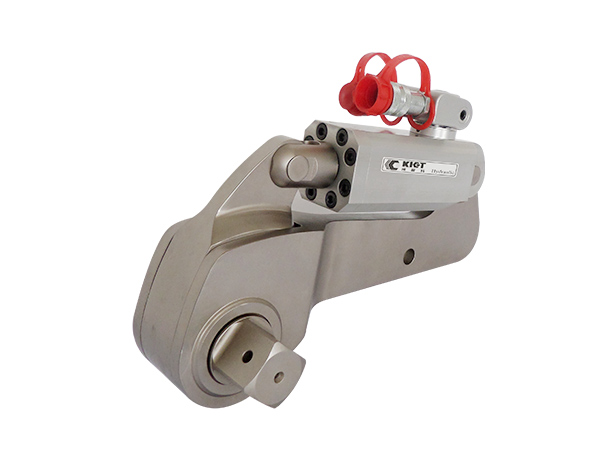

  • This hydraulic wrench is a universal type wrench, with a square drive head. Alloy steel body, strong and durable.
  • Torque range 2000-110934Nm, torque accuracy ±3%.
  • Integrated quick connector can be rotated 360 degrees, convenient for on-site use.
  • The integral tie rod structure can completely prevent the tie rod from breaking and crushing the plunger.
  • The wrench is equipped with a special handle, which can easily locate and install the wrench, and is convenient for the
  • handling of the wrench.
  • The reaction support feet are continuously adjustable in 360 degrees, which is suitable for various working conditions
  • on site. Due to the use of the rear button to release the locking structure, the adjustment of the reaction feet is more
  • convenient and quick.

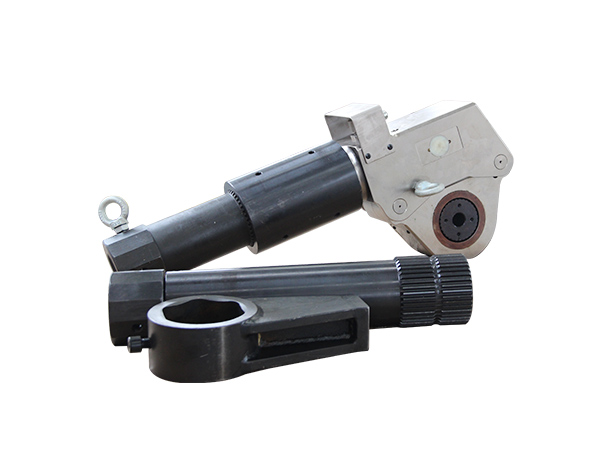

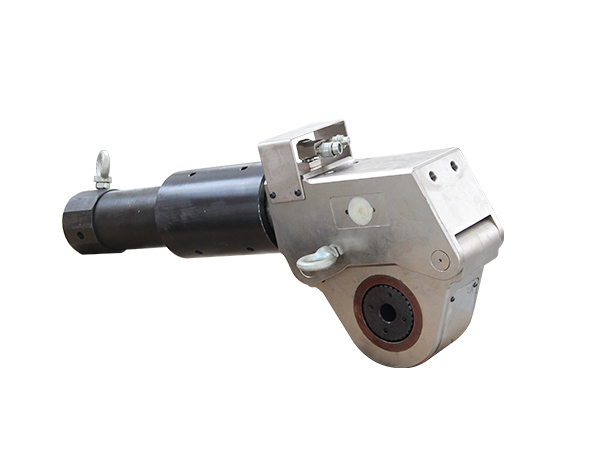

  • Optional 360-degree lengthened reaction arm, specially designed for special site conditions of high and medium
  • pressure steam turbine cylinder head bolts in power plants.
  • The socket can be selected according to the on-site working conditions and bolt specifications, and can also be
  • customized for users.
如何选择正确的液压扭矩扳手:

在选择扭矩扳手前应确定一个原则,即拆松螺栓的扭矩至少应该是拧紧螺栓的扭矩的1.5-2倍。

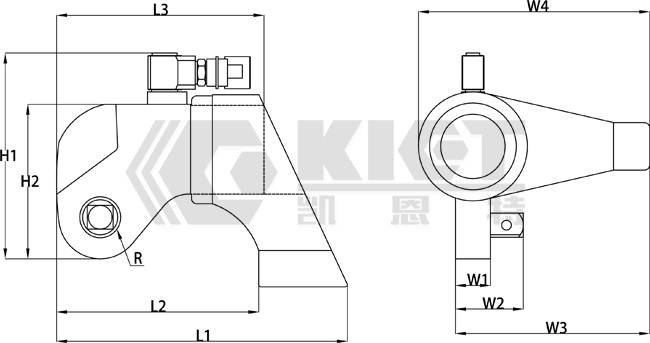

Specs& Dims
Model Square Drive Max. Torque (Nm) Bolt Diameter Nut A/F Size (mm) L1 L2 L3 H1 H2 W1 W2 W3 W4 R Weight (kg)
Dimensions(mm)
KET-TMCS-2 3/4" or1" 2106 M16-M36 24-55 216 163 151 155 102 51 82 119 128 31 3.48
KET-TMCS-3 1" 4329 M22-M48 32-75 234 144 175 178 125 60 92 130 159 36 5.44
KET-TMCS-5 1-1/2" 7123 M24-M52 36-80 268 195 208 207 153 70 111 153 164 45 8.14
KET-TMCS-8 1-1/2" 10823 M30-M64 46-95 352 267 244 230 176 77 118 204 213 52 12.15
KET-TMCS-10 1-1/2" or2" 15195 M36-M76 55-110 359 274 251 241 185 84 125 207 219 57 14.9
KET-TMCS-15 2-1/2" 21034 M39-M85 60-120 434 332 300 269 212 98 160 255 267 64 20.1
KET-TMCS-25 2-1/2" 36365 M48-M100 75-145 498 382 346 308 251 116 178 288 304 78 30.5
KET-TMCS-35 3-1/2" 50826 M56-M110 85-155 587 444 414 367 297 132 231 344 349 94 50.6
KET-TMCS-60 3-1/2" 81766 M76-M130 110-185 560 445 515 438 362 168 263 374 378 102 84.3
KET-TMCS-80 3-1/2" 110934 M90-M140 130-200 586 466 540 461 385 172 268 396 403 107 123
