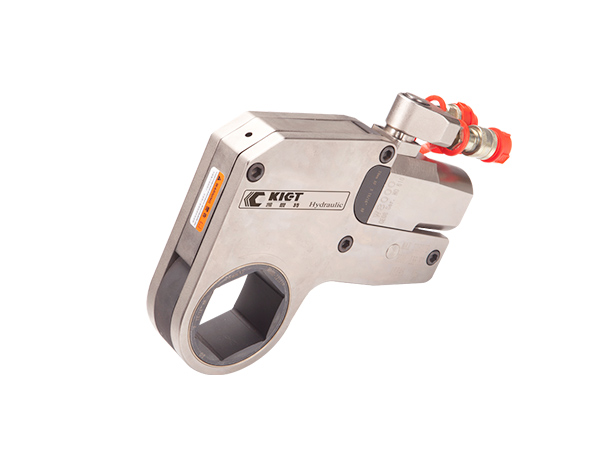

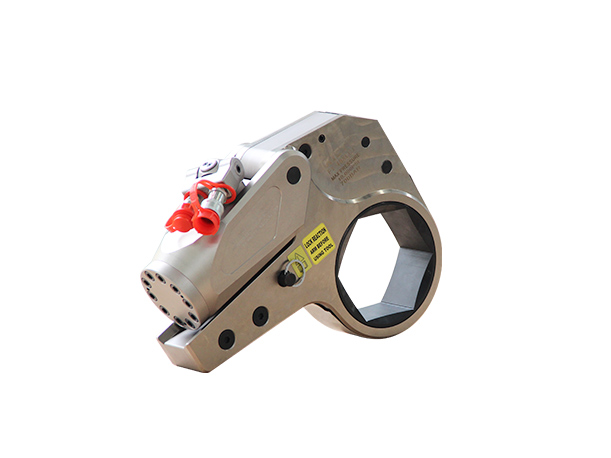

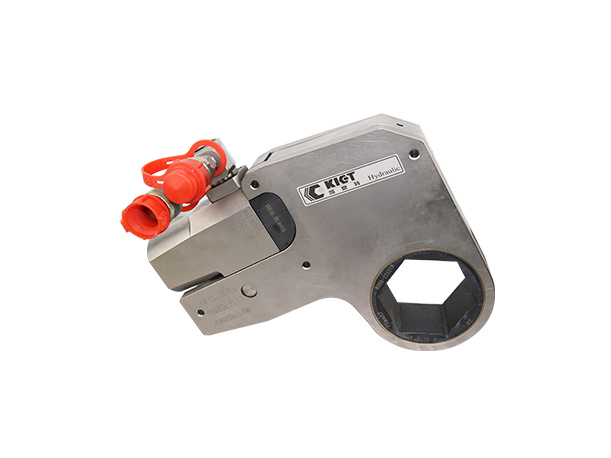

KET-WSteel Hollow Hydraulic Torque Wrench

Features: 镀镍处理以增强抗腐蚀性。

Uses: 狭小空间下的螺栓螺母拆卸预紧。

Send us an email

Inquiry

Steel Hollow Hydraulic Torque Wrench

Back

Product Detail

Features：

Cylinders and low profile cassettes have been engineered to give ultra slim, compact low clearance tooling with a small nose radius.
High efficiency, fast operation due to the large nut rotation per wrench cycle (30 degree rotation angle) and rapid return stroke.
All wrenches are nickel-plated for excellent corrosion protection and improved durability in harsh environments.
All wrenches are fitted with bronze bushings to ensure the ratchet will never seize in the sideplates, thus eliminating costly repairs.
Constant torque output provides high accuracy across the full stroke.
In-line reaction foot ensures accuracy by reducing internal deflections.

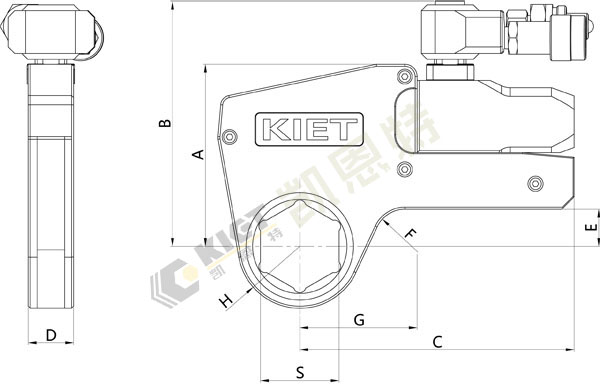

Specs& Dims

Model	Nut Across Flats		Max. Torque @700bar		Min. Torque		Weight without Hexagon Head (kg)
Model	（inch)	(mm)	（Ft.lbs)	(Nm)	（Ft.lbs)	(Nm)	Weight without Hexagon Head (kg)
KET-W-2000	1 1/8-2 3/16	30-55	2000	2721	200	271	1.4
KET-W-4000	1 5/16-2 9/16	36-65	4000	5423	400	542	2.0
KET-W-8000	1 7/8-2 15/16	50-75	8000	10846	800	1084	3.0
KET-W-15000	2 7/16-4 5/8	65-115	15000	20337	1500	2033	5.0
KET-W-22000	2 15/16-5 3/8	75-130	225000	30510	2250	3050	7.7
KET-W-35000	3 1/8-6 1/8	80-155	35000	47454	3500	4745	11.4
