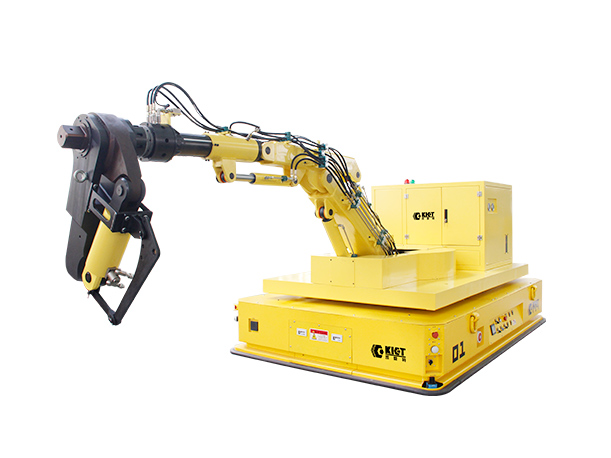

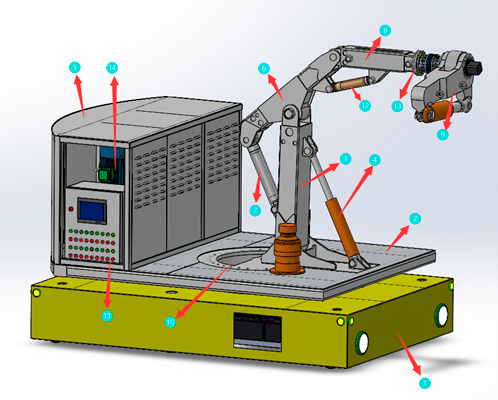

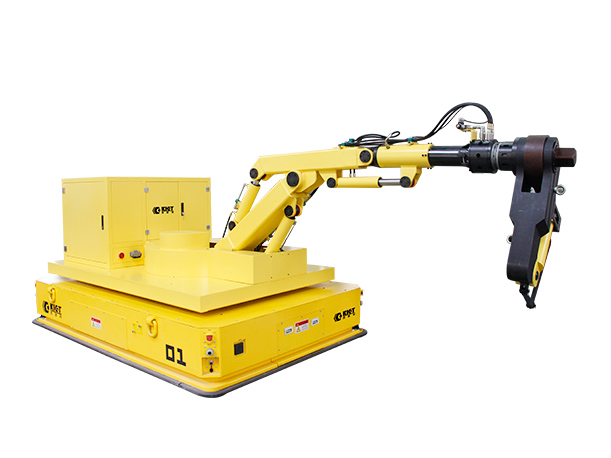

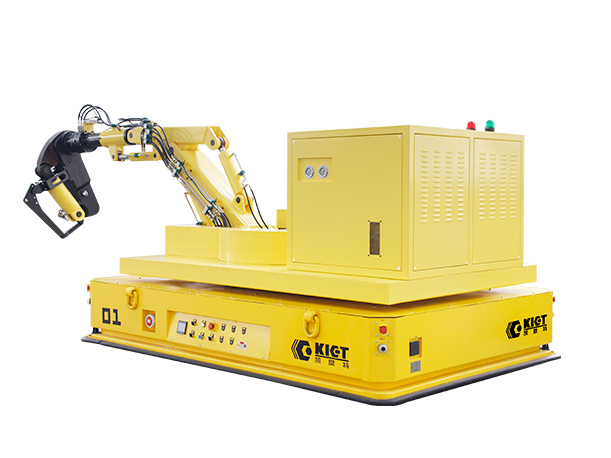

The blade bolt disassembly and assembly equipment is designed for the purpose of "time-saving, labor-saving, reliable, safe and easy to use", and adopts a multi-degree-of-freedom collaborative operation system：

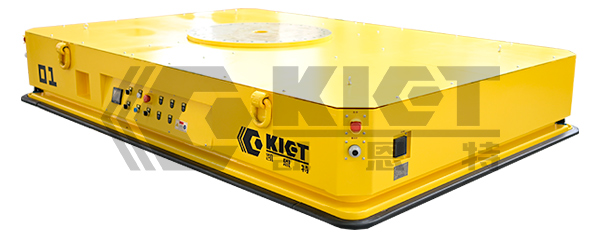

Moving system：The AGV trolley is equipped with a steering wheel drive, which can realize 360° rotation and omnidirectional walking on the spot, and adjust the left and right positions of the equipment through steering wheel steering or chassis turntable rotation

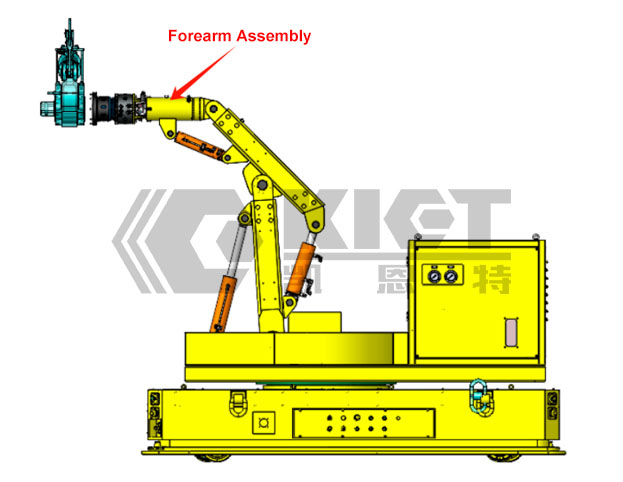

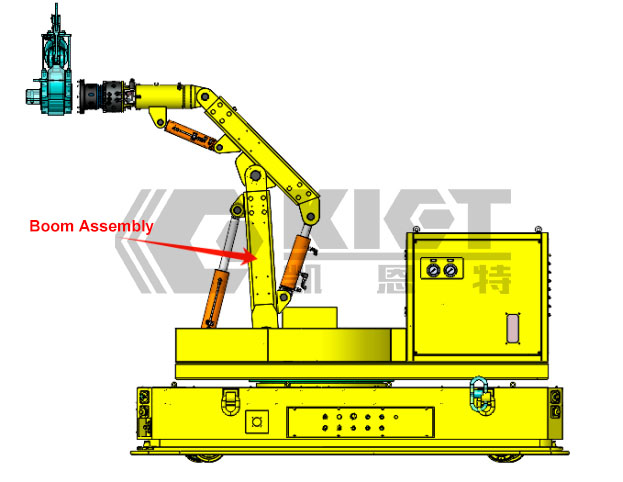

Robotic arm system：three-axis linkage of large arm, middle arm and small arm, supporting six-degree-of-freedom attitude adjustment of torque wrench (left and right/high and low/far and near), of which the small arm is dedicated to leveling the parallelism between the torque wrench and the bolt hole.

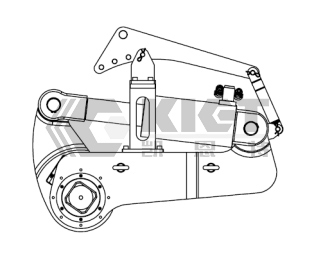

Torque operation system: The hydraulic motor drives the torque wrench to rotate and position, and cooperates with the telescopic follower arm to compensate for the axial displacement during the disassembly and assembly of the bolt in real time to ensure the continuity of operation.
The whole system realizes precise spatial positioning and adaptive adjustment through a modular motion mechanism, taking into account operational flexibility and operational safety.
● Reliable energy transfer: The liquid can transfer energy in a closed pipeline, and there will be no loss in the transmission process, and the transmission efficiency is high, which can ensure the reliability of the system.

● Strong pressure capacity: The hydraulic system can withstand high pressure, and can realize high-power transmission and large-tonnage transmission.

● High precision: Due to the high precision of the hydraulic system to transmit energy, it is widely used in some fields that require precise movement, such as CNC machine tools, aircraft, spacecraft, etc.

● Stable work: Due to the stable transmission energy of the hydraulic system, there will be no obvious vibration and noise in the working process, and the working process is relatively stable.

● Easy to control: The flow control and pressure control of the hydraulic system are very easy, and can be accurately controlled by adjusting the solenoid valve and oil pump, etc.

● Simple structure: The structure of the hydraulic system is relatively simple, and it does not require too many components and connections, so the maintenance and maintenance work is relatively simple.
● Multi-directional movement ability: The AGV trolley can move in any direction of 360° before and after turning around, and can complete 360-degree rotation in situ, with strong mobility.

● Good stability: The AGV trolley has multiple wheels independently, which can adapt to the ground, and the action process is stable, and it is not easy to overturn.

● Simple operation: The overall control of the AGV trolley is simple, and it can be remotely controlled through remote control, mobile phone application, etc., which is convenient to operate.

● Adapt to the site: The AGV trolley is suitable for various scenarios, including the construction site, which is used to move and handle torque wrenches. The walking wheel group can be equipped with anti-skid drive wheels, which can make the AGV run stably on various special surfaces such as wet, waterlogged, oily, and extremely smooth ground, and solve the slipping phenomenon, and the adhesion coefficient between the anti-skid drive wheel and the ground is more than 50% higher than that of the general drive wheel, so as to ensure that the AGV can provide sufficient traction capacity under various loads, and does not deviate or slip.

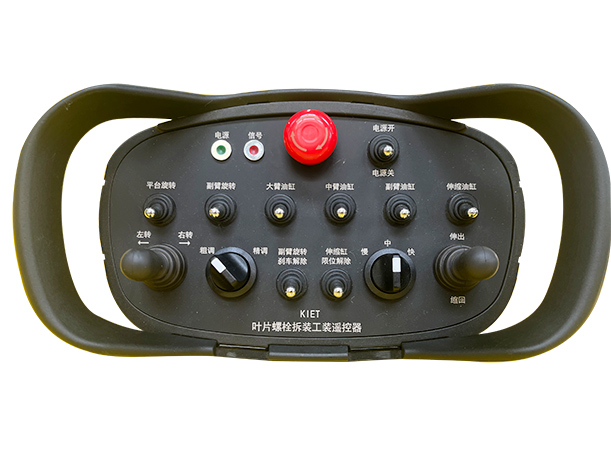

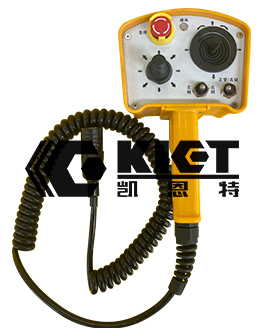

● In order to realize the portability of the on-site operation equipment, the equipment is developed with a hand-held wireless operating handle, which is developed in complete sets with the functional parts of the handle and the equipment, with a high degree of intelligence.

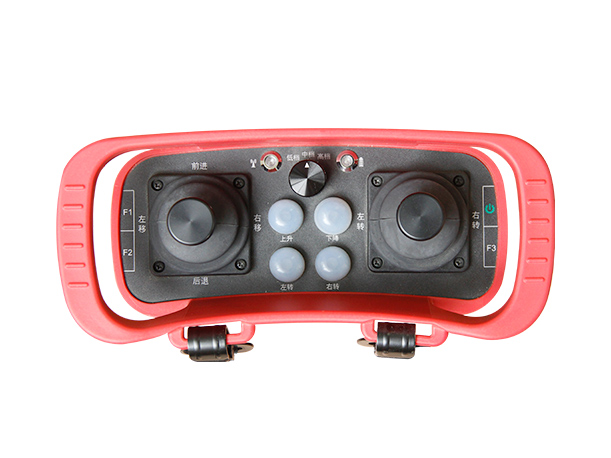

● AGV wireless remote control.

● AGV wired remote control.
