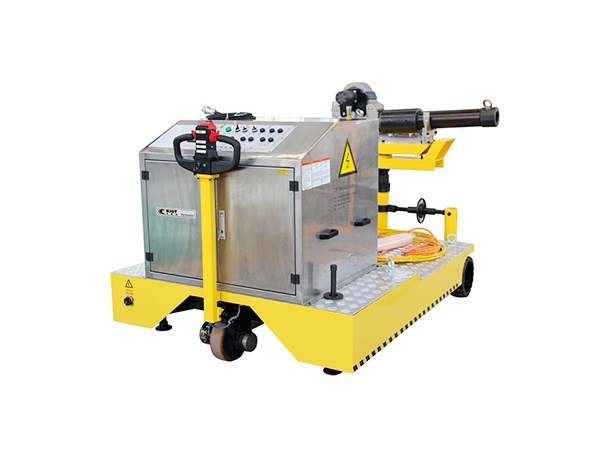

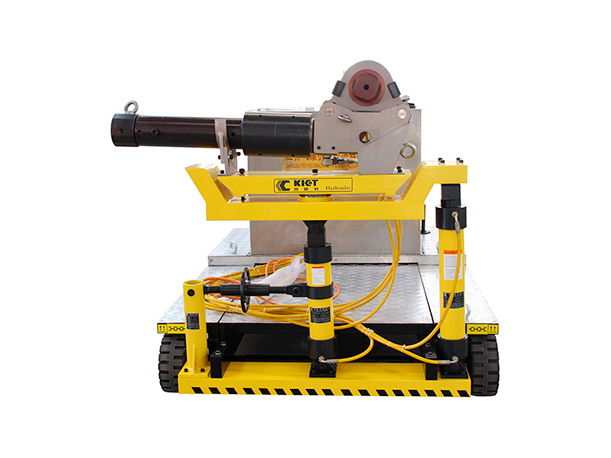

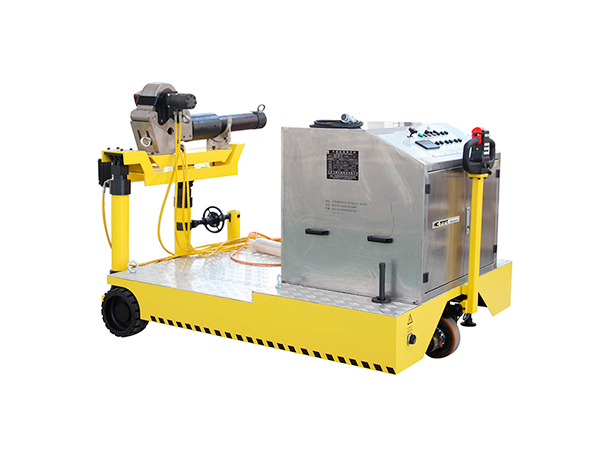

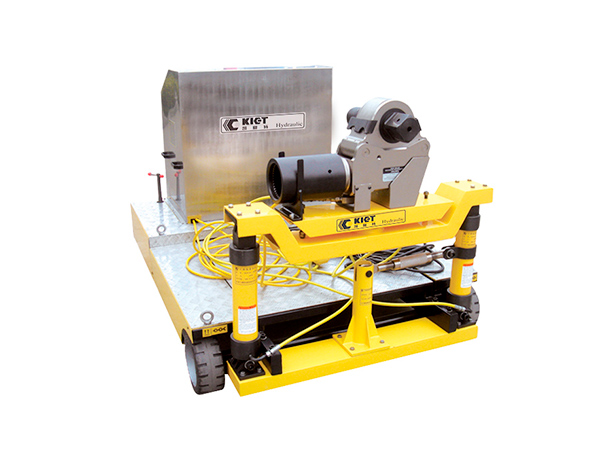

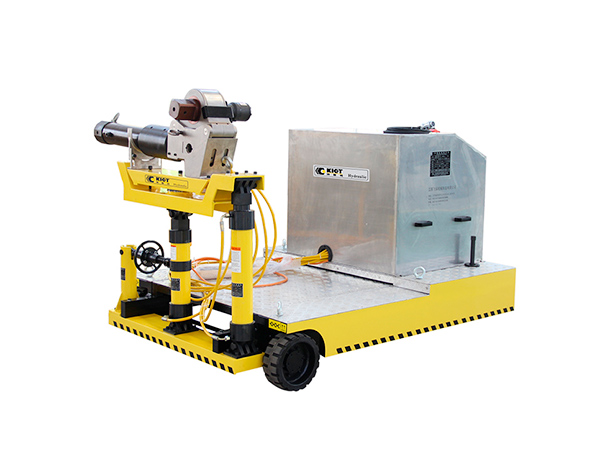

Features: Quick disassembly, lightweight and flexible, easy to use.
Uses: It is specially designed for the disassembly and installation of rotary blade bolts of hydraulic turbines in hydropower plants.
| Model | Motor Power（KW） | Travel Speed（m/min） | Battery Power（Ah、V） | Displacement Stroke of Mobile Station（mm） | Lifting Height of Mobile Support Platform（mm） | Swing Angle of Mobile Support Platform（°） |
| KET-QZD-11000 | 0.75 | 0-80 | 120、24 | 0-500 | 0-700 | ±15 |
| Model | Hydraulic Motor Torque （N.m） | Hydraulic Wrench Torque （N.m） | Motor Power | Working Pressure（MPa） | Dimensions （mm） |
| KET-QZD-11000 | 465 | 110000 | 380V/50Hz 3KW 1400rpm | low pressure:20 high pressure:70 |
2170×1560×870 |
