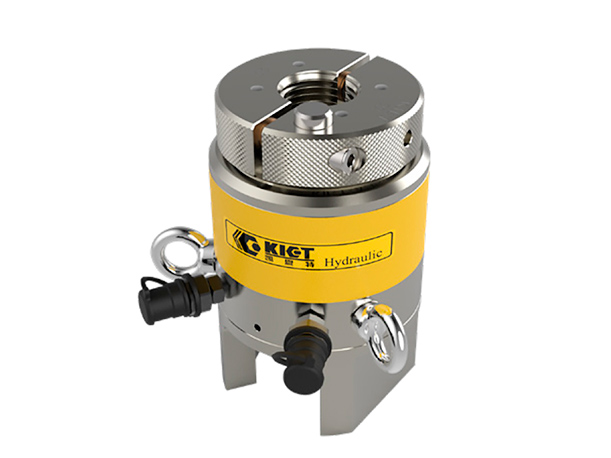

Subsea Bolt Tensioner_Hydraulic Bolt Tensioners_Jiangsu Canete Machinery Manufacturing Co., Ltd.

Product Detail

Features:

Piston travel – 1.18 inches (-0.79 inches except WST1)
Maximum working pressure 1500 bar
“D” contains the range within which the bolt is allowed to move after tightening up to a stroke of 30 mm
Ultra-high pressure manual hydraulic pump, ultra-high pressure pneumatic hydraulic pump, ultra-high pressure electric hydraulic pump can be used together

Specs& Dims

Model	Working Pressure （Mpa）	bolt diameter	Maximum load (kN)	Body height （mm）	Maximum stroke（mm）	Cylinder body diameter（mm）	Cylinder height（mm）	Support base outside diameter（mm）	Cylinder area of action (mm²)	Weight (kg)
KET-WST-20	150	M20	140	117	20	66	96.5	48	943	1.7
KET-WST-22	150	M22	140	117	20	66	96.5	48	943	1.7
KET-WST-24	150	M24	239	147	30	82	127	60	1569	3.7
KET-WST-27	150	M27	239	147	30	82	127	60	1569	3.7
KET-WST-30	150	M30	239	147	30	82	127	60	2533	3.7
KET-WST-33	150	M33	380	163	30	97	137	77	2533	6
KET-WST-36	150	M36	380	163	30	97	137	77	3676	6
KET-WST-39	150	M39	551	169	30	111	145	90	3676	7
KET-WST-42	150	M42	551	169	30	111	145	90	5868	7
KET-WST-45	150	M45	880	189	30	111	145	90	5868	11.2
KET-WST-48	150	M48	880	189	30	136	158	114	5868	11.2
KET-WST-52	150	M52	880	189	30	136	158	114	10433	11.2
KET-WST-56	150	M56	1564	223	30	177	180	140	10433	21.3
KET-WST-60	150	M60	1567	223	30	177	180	140	10433	21.3
KET-WST-64	150	M64	1564	223	30	177	180	140	10433	21.3
KET-WST-72	150	M72	1564	223	30	177	180	140	17174	33.6
KET-WST-76	150	M76	2576	255	30	217	202	180	17174	33.6
KET-WST-80	150	M80	2576	255	30	217	202	180	17174	33.6
KET-WST-85	150	M85	2576	255	30	217	202	180	17174	33.6
KET-WST-90	150	M90	2576	255	30	217	202	180	17174	33.6
