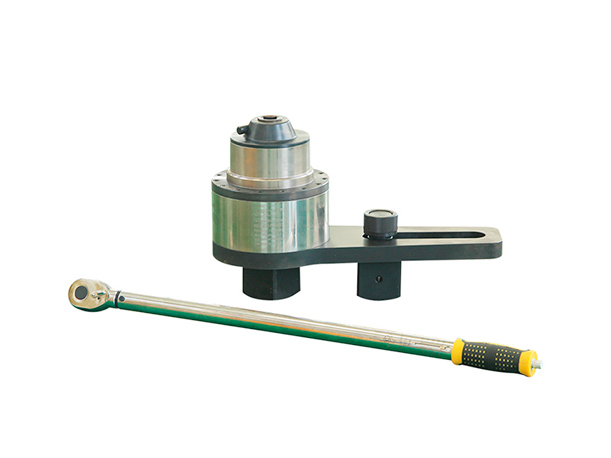

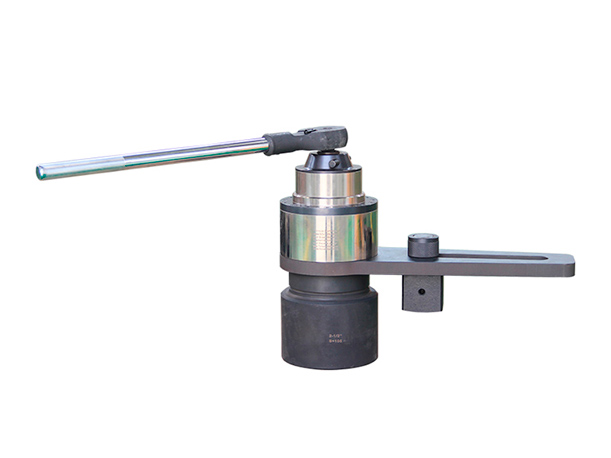

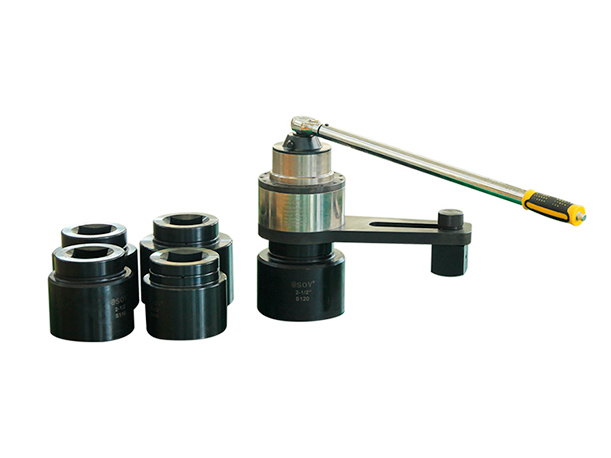

KET-FDBStraight Handle Torque Multiplier

Features: Precision planetary gear structure, strong and durable.

Uses: For quick bolt installation and removal.

Send us an email

Tel 0086-523-86183388

Back to List

Inquiry

Straight Handle Torque Multiplier

Details
Specs
Cases
Video
Related

Back

Product Detail

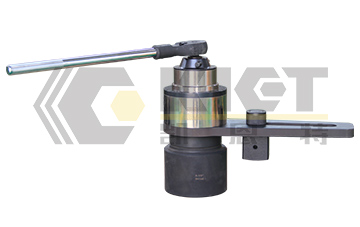

Torque multipliers are widely used for quick installation and disassembly of bolts, without power and gas source. It is very convenient to use on site. You can output a large torque accurately, with a small torque input. It is widely used in petrochemical industry, railway construction and bridge construction.

Features:

High gear ratio, just use a small torque wrench
Multipliers with a magnification ratio of more than 25:1 are equipped with anti-rebound safety devices, which are safe and convenient
A wide variety of reaction arms are available for a variety of occasions
Can be used with torque sensor, display, can display torque value
Precise planetary gear structure, strong and durable
Anti-reverse device, improve work efficiency and operate more safely
Use with manual torque wrench, torque accuracy: ±3%
Integrated 360° reaction arm for better field support

Specs& Dims

Model	Bolt Diameter	Nut Across Flat	Input Square	Output Square	Torque(Nm)	Torque Ratio	Transmission Ratio	Weight （kg）
KET-FDB-10	M20-30	S30-46	1/2＂	1＂	1000	1:4.5	1:5.5	2.1
KET-FDB-20	M22-35	S32-55	1/2＂	1＂	2000	1:12	1:16	3.15
KET-FDB-35	M30-45	S46-70	1/2＂	1＂	3500	1:15.4	1:20.25	4.9
KET-FDB-55	M42-60	S55-80	1/2＂	1 1/2＂	5500	1:18.8	1:25.4	8.1
KET-FDB-75	M52-72	S65-90	1/2＂	1 1/2＂	7500	1:21.5	1:29.33	10.6
KET-FDB-100	M52-72	S80-105	1/2＂	1 1/2＂	10000	1:27.8	1:37.71	14
KET-FDB-150	M60-85	S80-120	1/2＂	2 1/2＂	15000	1:50	1:70.19	24.1
KET-FDB-200	M72-100	S105-145	1/2＂	2 1/2＂	20000	1:72	1:101.62	27.8

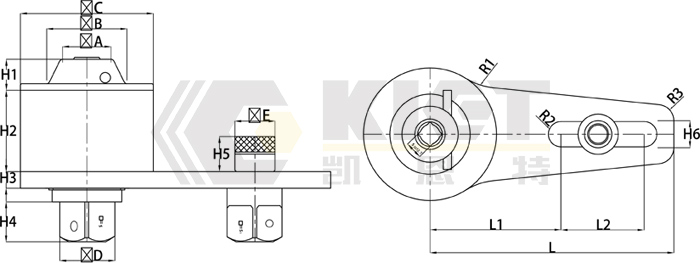

Model	ΦA	ΦB	ΦC	ΦD	ΦE	H	H1	H2	H3	H4	H5	H6	L	L1	L2	R1	R2	R3	R4	S	S1
KET-FDB-20	50	68	82	34	32	120	120	57.5	10.5	25	25	17.5	160	80	62	30	8	12	3	1″	1″
KET-FDB-35	53	77	98	34	34	128	128	63.5	12	25	25	22.5	180	90	68	30	9	12	3	1″	1″
KET-FDB-55	52	80	115	50	38	157	157	71	14	32	32	26	210	115	70	30	12	15	3	1.5″	1.5″
KET-FDB-75	64	92	127	50	49	168	168	80	16	32	32	30	240	120	90	30	13.5	15	3	1.5″	1.5″
KET-FDB-100	78	106	141	50	49	186	186	90	18	32	32	47	270	125	110	30	15	15	3	1.5″	1.5″
