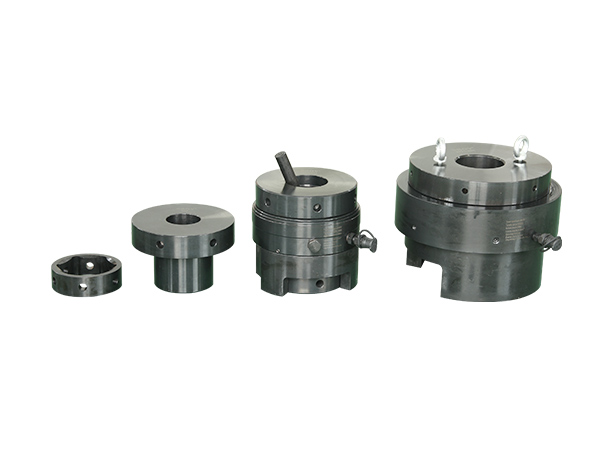

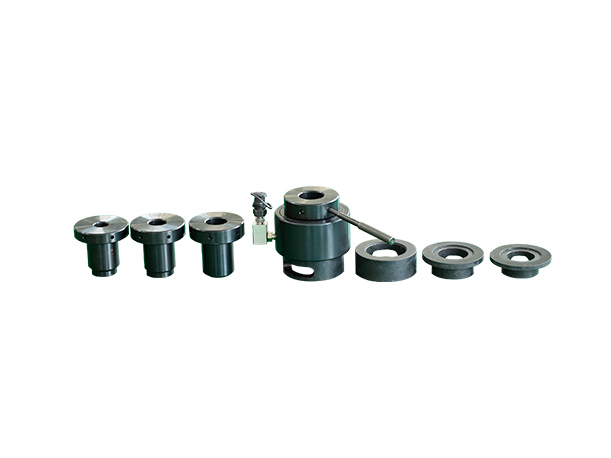

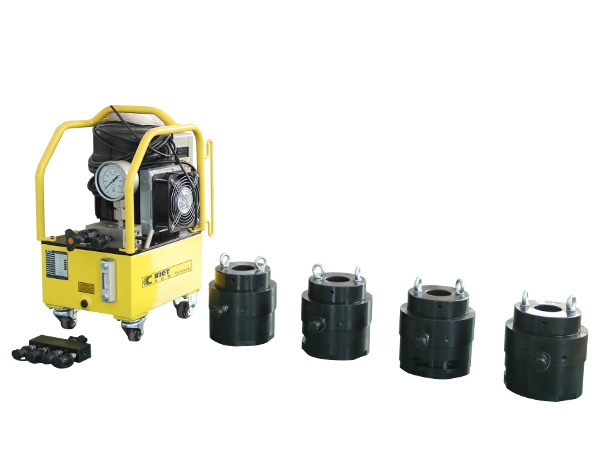

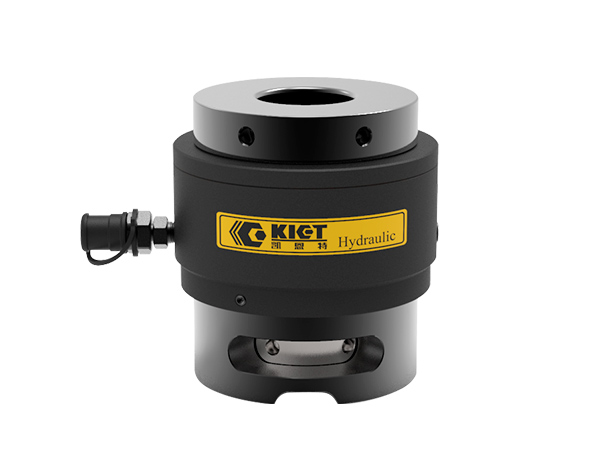

Replaceable Head Hydraulic Bolt Tensioner_Hydraulic Bolt Tensioners_Jiangsu Canete Machinery Manufacturing Co., Ltd.

Product Detail

Replaceable head hydraulic bolt tensioner features:

Spring automatic recovery, over-stroke protection, suitable for frequent use;
Over-stroke protection, which greatly reduces seal damage caused by operation errors;
It has the advantages of other forms of stretchers;
Strong applicability, one model can be used for a variety of specifications of bolts

Specs& Dims

Model	Max. Tensioning Force （kN）	Stroke （mm）	Dimensions (mm)						Weight （kg）
Model	Max. Tensioning Force （kN）	Stroke （mm）	A	B	C	D	E	F	Weight （kg）
KET-HTS-1-20	307	8	109	55	23	25	111	128	5
KET-HTS-1-22	307	8	109	59	25	27	113	130	5
KET-HTS-1-24	307	8	109	66	27	29	115	132	5
KET-HTS-1-27	307	8	109	72	30	32	118	135	5
KET-HTS-2-30	530	8	109	80	35	35	126	144	5
KET-HTS-2-33	530	8	109	85	38	38	129	147	5
KET-HTS-3-36	486	8	109	80	35	35	126	144	7
KET-HTS-3-33	486	8	109	85	38	38	129	147	7
KET-HTS-3-36	486	8	109	90	38	38	129	147	7
KET-HTS-4-39	814	8	132	85	37	40	131	146	10
KET-HTS-4-36	814	8	132	96	43	43	134	149	10
KET-HTS-4-39	814	8	132	98	43	47	139	154	10
KET-HTS-4-42	814	8	132	110	54	50	141	156	10
KET-HTS-5-39	989	10	150	110	40	42	136	150	15
KET-HTS-5-42	989	10	150	113	44	44	138	152	15
KET-HTS-5-45	989	10	150	114	50	50	144	161	15
KET-HTS-5-48	989	10	150	118	52	52	146	163	15
KET-HTS-6-52	1413	10	174	132	55	56	154	174	20
KET-HTS-6-56	1413	10	174	135	59	60	158	178	20
KET-HTS-7-56	1649	12	198	135	60	60	161	179	25
KET-HTS-7-60	1649	12	198	143	64	64	165	183	25
KET-HTS-7-64	1649	12	198	150	65	65	166	184	25
KET-HTS-7-68	1649	12	198	158	72	72	175	193	25
KET-HTS-8-72	2131	12	222	165	75.5	76	184.5	207.5	35
KET-HTS-8-76	2131	12	222	170	80	80	188.5	211.5	35
KET-HTS-9-76	2544	12	252	170	80	80	194	221	50
KET-HTS-9-80	2544	12	252	175	85	85	199	226.5	50
KET-HTS-9-85	2544	12	252	190	76.5	85	199	226.5	50
KET-HTS-9-90	2544	12	252	205	95	94	208	235.5	50
KET-HTS-10-95	3101	12	282	215	100	104.5	218	247	65
KET-HTS-10-100	3101	12	282	235	105	109.5	223	252	65
KET-HTS-11-105	3792	12	318	225	93	98	212	242	85
KET-HTS-11-110	3792	12	318	235	115	120	234	264	85
KET-HTS-11-115	3792	12	318	260	120	125	239	269	85
KET-HTS-12-115	4900	12	360	260	120	120	261	297	110
KET-HTS-12-120	4900	12	360	270	125	125	266	302	110
KET-HTS-12-125	4900	12	360	272	130	140	271	307	110
KET-HTS-13-130	6255	12	408	285	135	135	276	312	130
KET-HTS-13-135	6255	12	408	292	140	140	281	317	130
KET-HTS-13-140	6255	12	408	300	155	145	286	322	130
KET-HTS-13-145	6255	12	408	312	166	155	296	332	130
KET-HTS--14-145	8423	12	456	312	150	150	301	337	150
KET-HTS-14-150	8423	12	456	340	165	155	306	342	150
KET-HTS-14-160	8423	12	456	350	165	165	316	352	150
