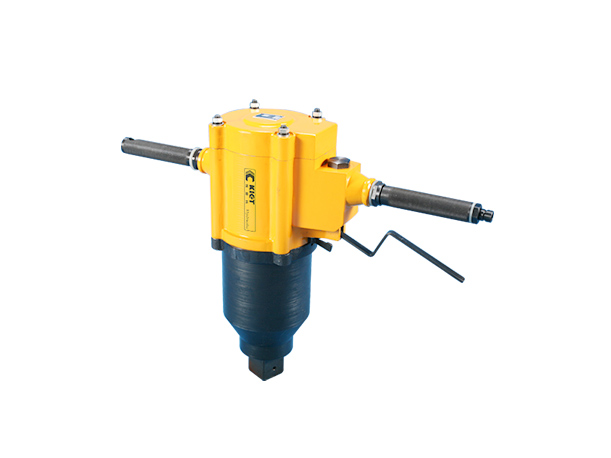

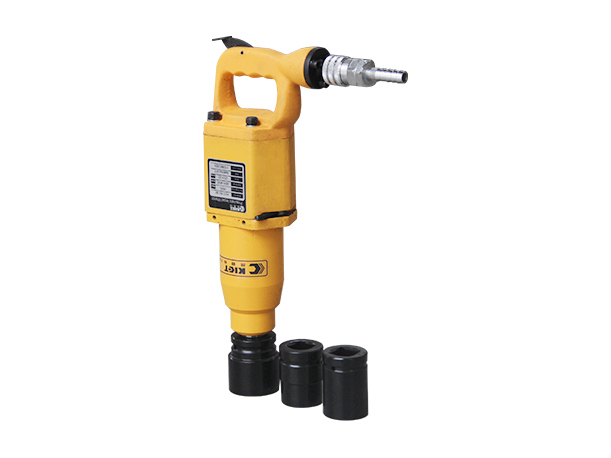

Pneumatic Impact Wrench
Request a Quote
We will respond to your inquiry within 8 hours
KET-BEPneumatic Impact Wrench

Features: Industrial-grade design, large torque, light weight.

Uses: Pneumatic impact wrench is a special wrench specialized for high strength and continuous disassembly and installing bolts.

Pneumatic Impact Wrench
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail

Pneumatic impact wrench is a professional wrench for high strength and continuous demolition and installation of bolts.,product series, compact structure and low vibration, low noise to reduce the operator’s fatigue. The machine torque large, light weight, the use of standard 6 bar air pressure for bolt removal and installation.

Features:
  • Industrial design, high torque, light weight
  • Innovative non-impact clutch system
  • Low noise and low vibration design
  • Use the standard 6 bar air pressure
  • Specs& Dims
    Model Bolt size M (mm) Driving square (mm) Torque (Nm) Air consumption (L/S) Weight (kg)
    KET-QBJ-20 18-20 20×20 490 30 4.5
    KET-QBJ-30 24-30 25×25 1605 40 7.4
    KET-QBJ-42 32-42 30×30 4492 50 11.5
    KET-QBJ-56 45-56 30×30 9980 60 15.5
    KET-QBJ-72 58-72 45×45 18076 75 33
    KET-QBJ-100 76-100 63.5×63.5 43576 90 88
