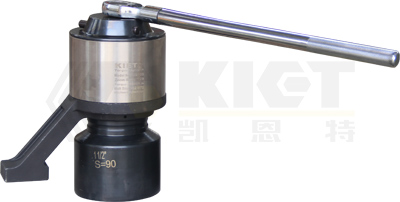

Angled Handle Torque Multiplier

Details
Specs
Cases
Video
Related

Back

Product Detail

Torque multipliers are widely used for quick installation and disassembly of bolts, without power and gas source. It is very convenient to use on site. You can output a large torque accurately, with a small torque input. It is widely used in petrochemical industry, railway construction and bridge construction.

Features:

High gear ratio, just use a small torque wrench
Multipliers with a magnification ratio of more than 25:1 are equipped with anti-rebound safety devices, which are safe and convenient
A wide variety of reaction arms are available for a variety of occasions
Can be used with torque sensor, display, can display torque value
Precise planetary gear structure, strong and durable
Anti-reverse device, improve work efficiency and operate more safely
Use with manual torque wrench, torque accuracy: ±3%
Integrated 360° reaction arm for better field support

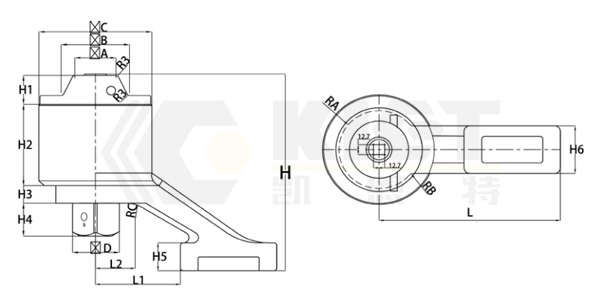

Specs& Dims

Model	ΦA	ΦB	ΦC	ΦD	H	H1	H2	H3	H4	H5	H6	L	L1	L2	RA	RB	RC	S
KET-FDB-20Z	50	68	82	34	147	22	56.5	15	25	14	30	105	65	37	33	5	10	1″
KET-FDB-35Z	53	77	98	34	163	22	69	15	25	16	36	120	55	43	36	5	10	1″
KET-FDB-55Z	52	80	115	50	199	26	86.5	13	38	16	40	137	87	43.5	45	8	15	1.5″
KET-FDB-75Z	64	92	127	50	215	26	97	12	38	20	44	146	91	45	48	25	15	1.5″
KET-FDB-100Z	78	106	141	50	238	28	90	12	40	22	50	164	102	50.5	53	10	15	1.5″

Model	Bolt Diameter	Nut Across Flat	Input Square	Output Square	Torque	Torque Ratio	Transmission Ratio	Weight(kg)
KET-FDB-10	M20-30	S30-46	1/2＂	1＂	1000	1:5	1:5.5	2.4
KET-FDB-20	M22-35	S32-55	1/2＂	1＂	2000	1:13.6	1:16	3.5
KET-FDB-35	M30-45	S46-70	1/2＂	1＂	3500	1:17.5	1:20.25	5.0
KET-FDB-55	M42-60	S55-80	1/2＂	1 1/2＂	5500	1:20.5	1:25.4	8.7
KET-FDB-75	M52-72	S65-90	1/2＂	1 1/2＂	7500	1:23.7	1:29.33	11.7
KET-FDB-100	M52-72	S80-105	1/2＂	1 1/2＂	10000	1:30.5	1:37.71	15.2
KET-FDB-150	M60-85	S80-120	1/2＂	2 1/2＂	15000	1:50	1:70.19	24.1
KET-FDB-200	M72-100	S105-145	1/2＂	2 1/2＂	20000	1:72	1:101.62	27.8

Aluminum torque multiplier

Model	Bolt Diameter	Nut Across Flat	Input Square	Output Square	Torque(Nm)	Torque Ratio	Transmission Ratio	Weight(kg)
KET-FDB-20	M20-30	S30-46	1/2＂	1＂	2000	1:13.5	1:18.3	2.3
KET-FDB-35	M22-35	S32-55	1/2＂	1＂	3500	1:16	1:20.25	4.0
KET-FDB-55	M30-45	S46-70	1/2＂	1＂	5500	1:19.3	1:25.4	6.5
KET-FDB-75	M42-60	S55-80	1/2＂	1 1/2＂	7500	1:22.7	1:29.33	8.3
