Integrated Hydraulic Puller
Request a Quote
We will respond to your inquiry within 8 hours

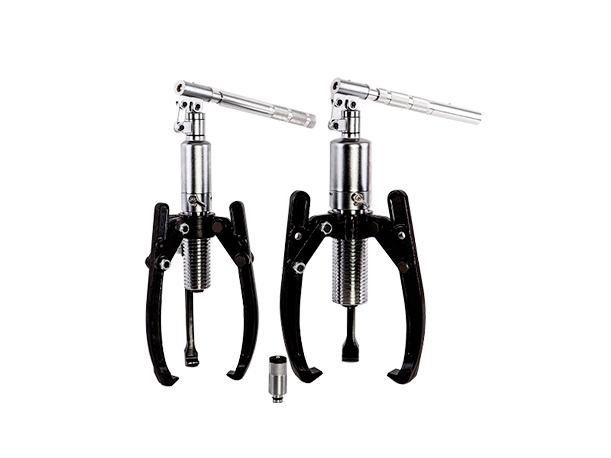

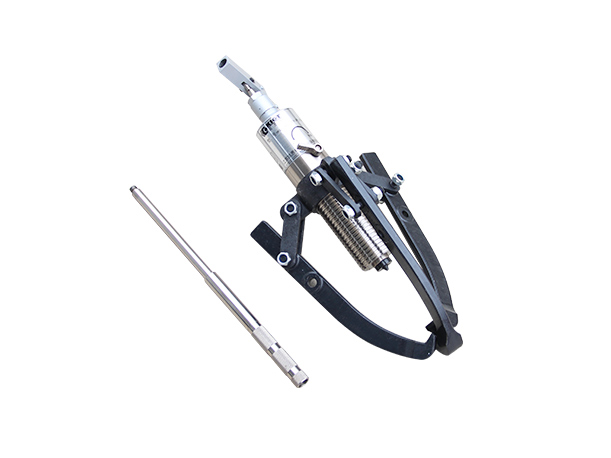

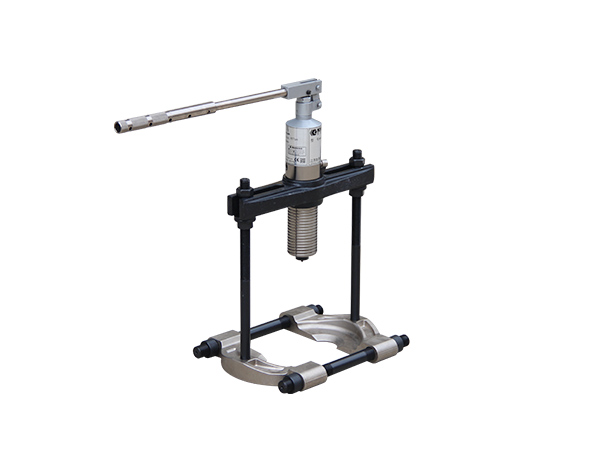

KET-PLIntegrated Hydraulic Puller

Features: Integrated oil cylinder, small in size and light in weight, easy to use.

Uses: Suitable for disassembling workpieces such as bearings, gears, couplings, etc.

Send us an email
Tel 0086523-86183388 Tel 0086-523-86183388 Back to List
Inquiry
Integrated Hydraulic Puller
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail
  • Integrated cylinder, small size, light weight, easy to use, strong versatility;
  • The unique arc-shaped jaw can automatically generate clamping force when the plunger of the cylinder is stressed, and the clamping force is automatically aligned and the positioning is simple;
  • The jaws are forged and heat-treated from high-strength steel, which is strong and durable;
  • Rated output of oil cylinder: 8 tons, it can still be used normally when overload is 50%;
  • It can be composed of 3 claws, 2 claws and ejector rod type push-pull dual-purpose and other pullers, suitable for different occasions;
  • All kits come with a steel storage box.
Specs& Dims
Specification Tonnage(T) Depth（mm） Spread（mm） Mechanical Stroke（mm）E Hydraulic Stroke（mm）F Claws
A B C D G H
KET-PL60 6 185 70 75 225 84 60 11 6
KET-PL80 8 229 57 100 350 122 85 11 10
KET-PL150 15 269 103 90 375 118 85 14 10
KET-PL200 20 360 190 210 520 161 111 20 27
KET-PL300 30 360 190 225 550 155 111 20 27
KIET Tour
Applications
Hydraulic Pullers for Disassembly of Bearings, Gears, and Couplings
Hydraulic Pullers for Disassembly of Bearings, Gears, and Couplings
Hydraulic Pullers for Disassembly of Bearings, Gears, and Couplings
Industry Applications：Metallurgy
