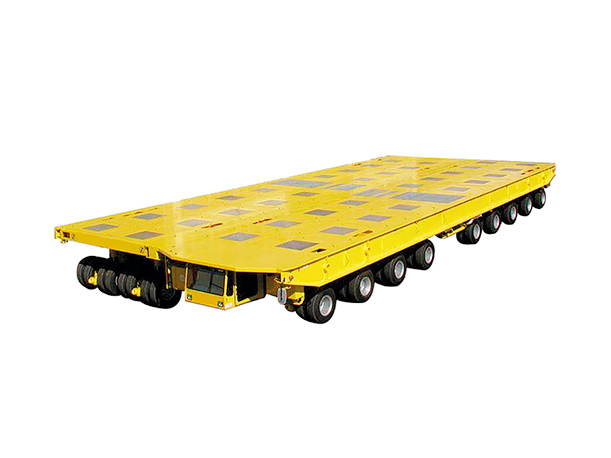

Features: It has a large load, modularity, intelligence, and multi-mode steering.

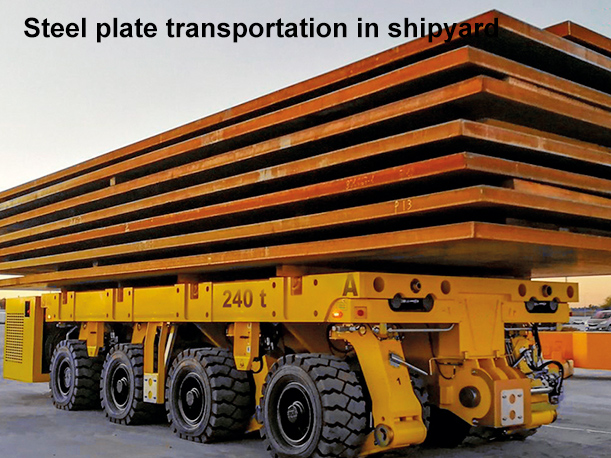

Uses: Used for large-scale heavy-duty transportation in various industries, such as ship propeller transportation.
| Model No. | Rated Load (t) | Platform Height (mm) | Trave (mm) | Maximum driving speed (fully loaded / unloaded)(km/h) | Grade ability at full load ( Longitudinal slope / cross slope) (%) | Ground clearance frame height (mm) | Tire specifications / quantity | Center rotation half-diameter (m) | Dimensions (L× W) | Empty car weight (t) |
| KET-PBC-100A | 100 | 1400~2000 | 600 | 6/10 | 6/2 | ≥150@1700 | 8.25-15/32 | R = 0 | 12×5.1 | 28 |
| KET-PBC-100B | 100 | 1600~2300 | 700 | 6/10 | 6/2 | ≥150@1950 | 12.00-20/16 | R = 0 | 11.5×5.1 | 28 |
| KET-PBC-150 | 150 | 1600~2300 | 700 | 6/10 | 6/2 | ≥150@1950 | 12.00-20/24 | R = 0 | 12.4×5.1 | 42 |
| KET-PBC-200 | 200 | 1600~2300 | 700 | 6/10 | 6/2 | ≥150@1950 | 8.5-20/32 | R = 0 | 15×5.5 | 56 |
| KET-PBC-320 | 320 | 1600~2300 | 700 | 6/10 | 6/2 | ≥150@1950 | 12.00-20/48 | R = 0 | 18×6.1 | 64 |
| KET-PBC-380 | 380 | 1600~2300 | 700 | 5/10 | 6/2 | ≥150@1950 | 12.00-20/56 | R = 0 | 20×6.1 | 68 |
| KET-PBC-550 | 550 | 1600~2300 | 700 | 5/10 | 6/2 | ≥150@1950 | 12.00-20/80 | R = 0 | 27.5×6.8 | 100 |
