Analysis of the Causes of Tilt:
High-rise building lifting correction, Among the existing buildings in our country, a large proportion have suffered varying degrees of damage and deformation due to various reasons such as design level, construction quality and complex geological conditions. PLC synchronous lifting system is used in conjunction with cylinders to achieve the purpose of lifting correction with a synchronization accuracy of ±0.2mm.
Lifting correction plan:
Due to the emergence of the PLC synchronous lifting system, the synchronization accuracy during lifting can be well controlled, so the lifting method has been well utilized. The lifting method takes the original pile foundation as the reaction point for lifting. By arranging a large number of hydraulic cylinders and through synchronous control, each pile node is lifted synchronously.
Using equipment:

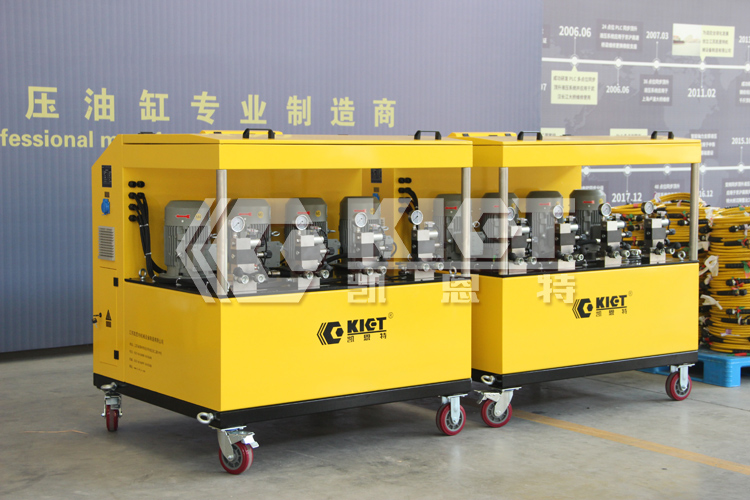

PLC synchronous lifting system
Displacement synchronization accuracy: ≤±0.2mm
Display mode: Human-machine interface
Control points: 4

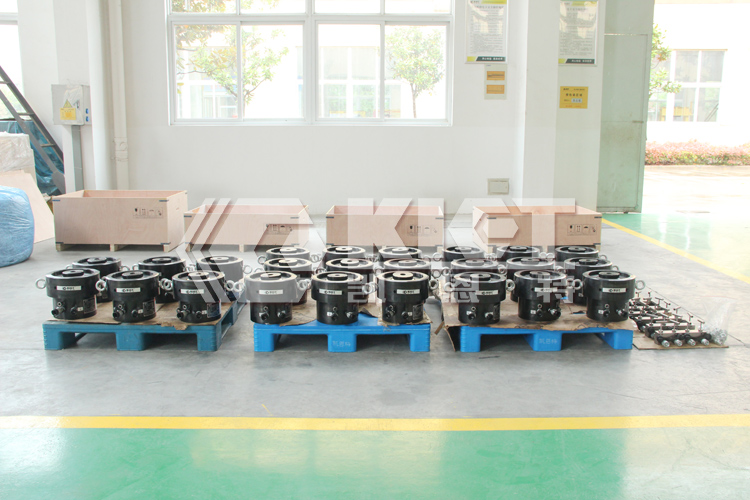

Outer ring lock nut hydraulic cylinder:
Single-point carrying capacity: 100T
Closed height: 296mm
Stroke: 130mm
Working pressure: 70Mpa

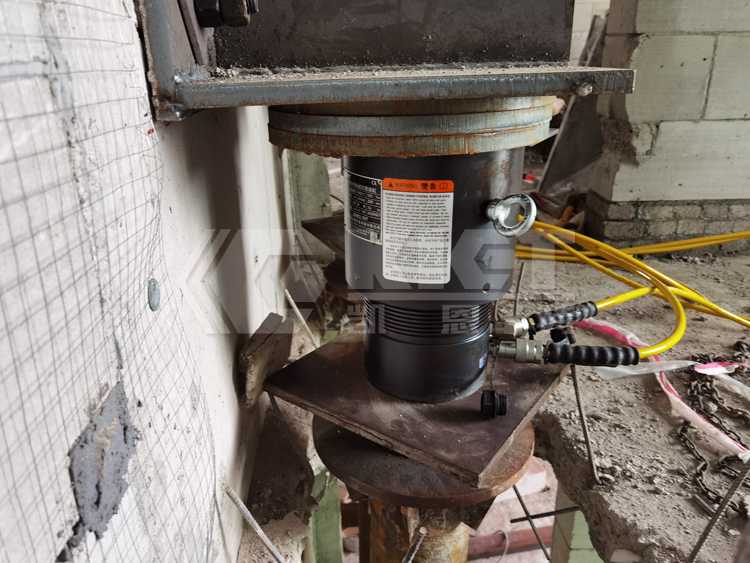

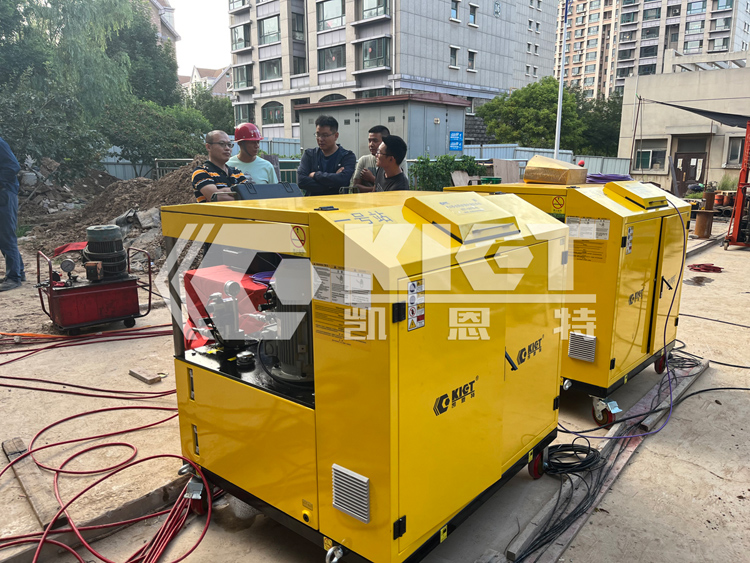

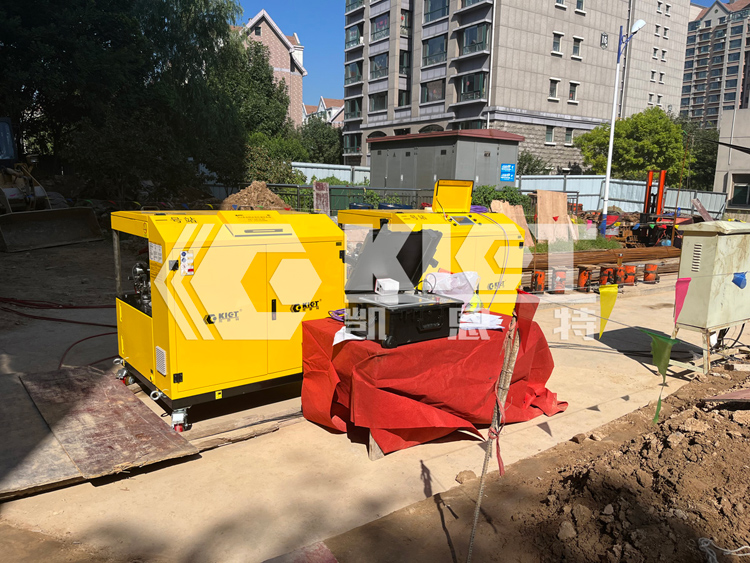

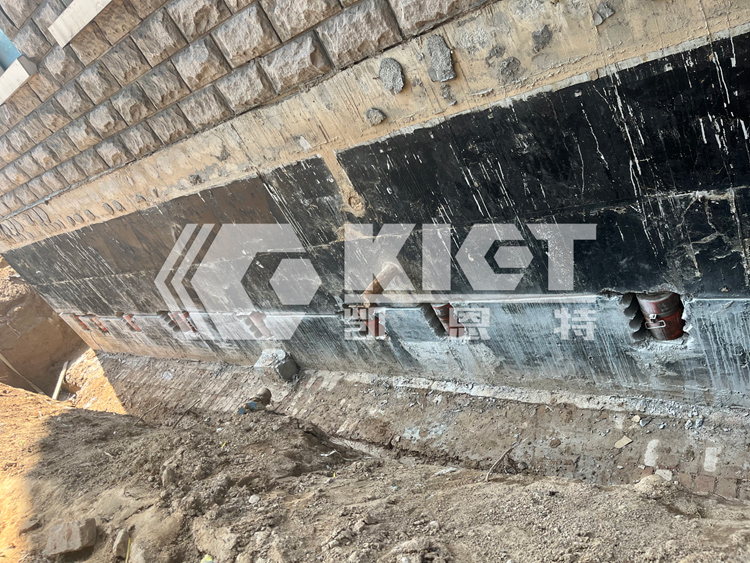

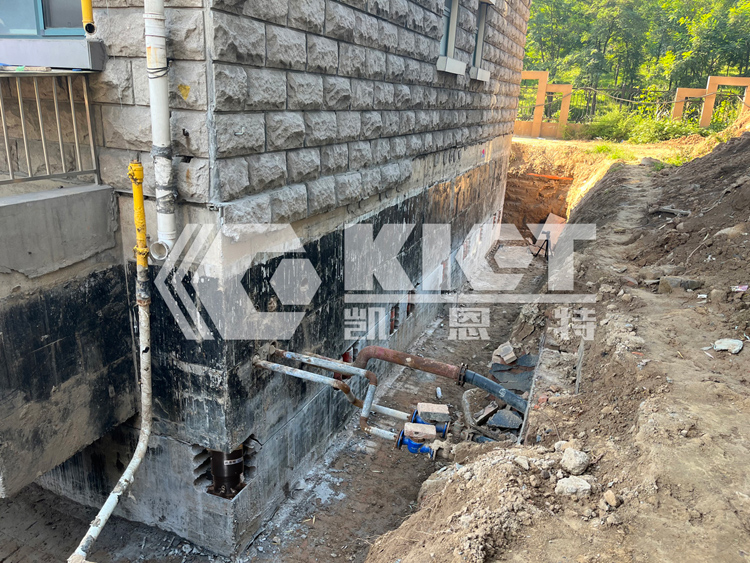

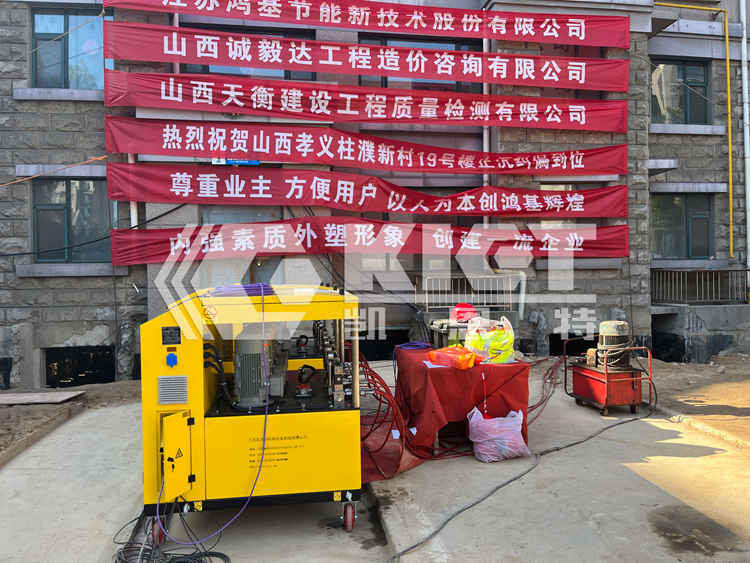

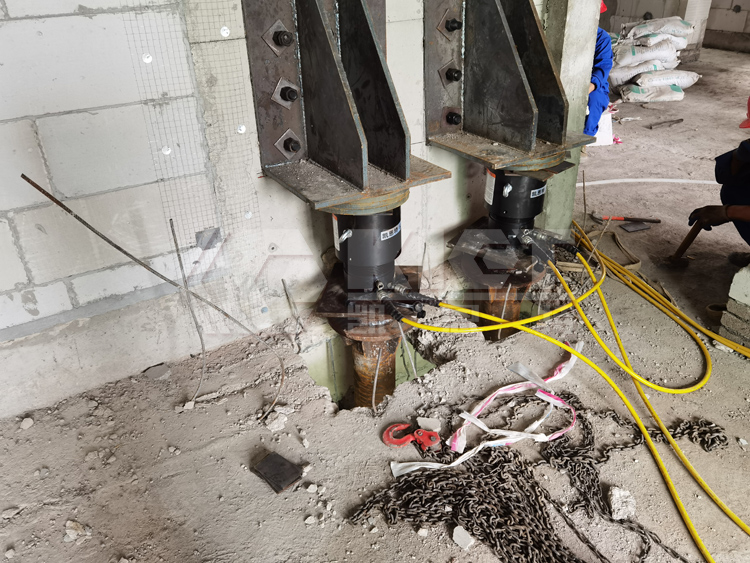

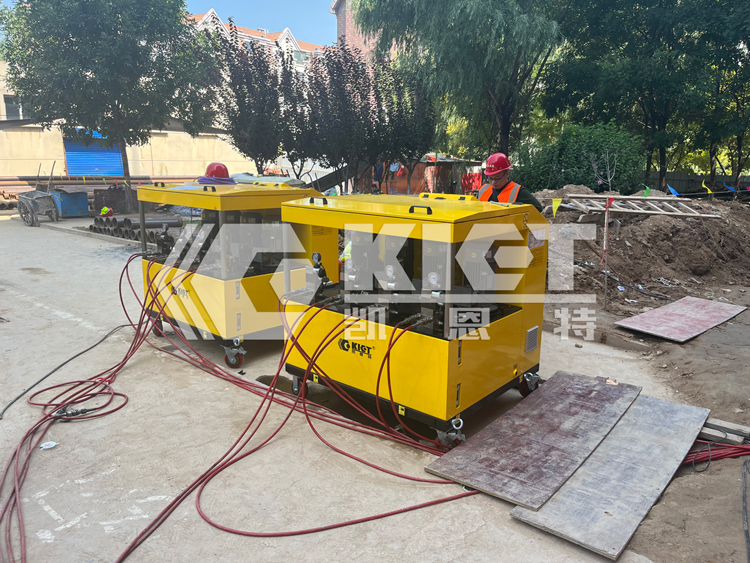

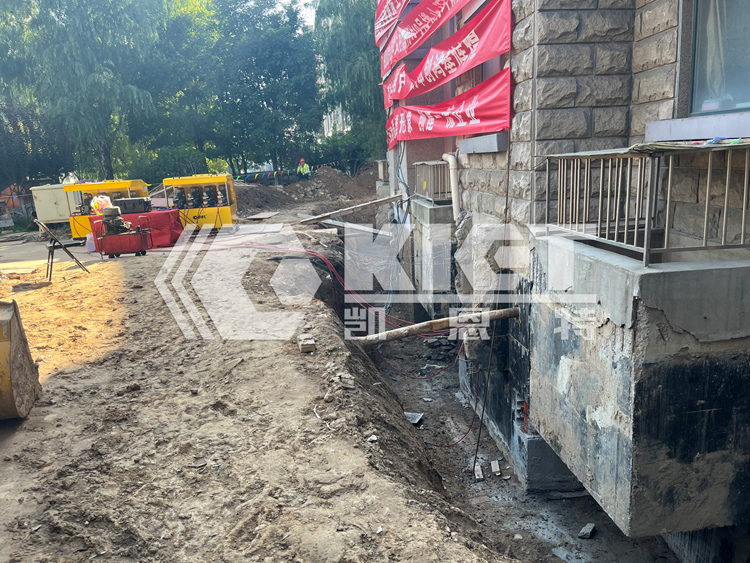

Construction site drawing
:
Construction site drawing
