Synchronous lifting hydraulic system is used to install roof lifting reinforcement

If the house has settlement during use, it will cause cracks in the wall, tilting of the wall and other phenomena. It is feasible to use the Canete synchronous lifting hydraulic system to repair the house. The specific principle is to truncate the foundation to lift the entire balance surface. After it is in place, fill in the gap of the section, which has achieved the purpose of stabilizing the house.

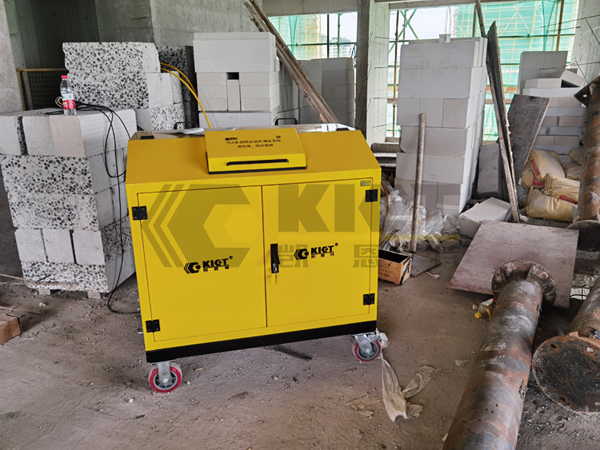

Canete synchronous lifting hydraulic system

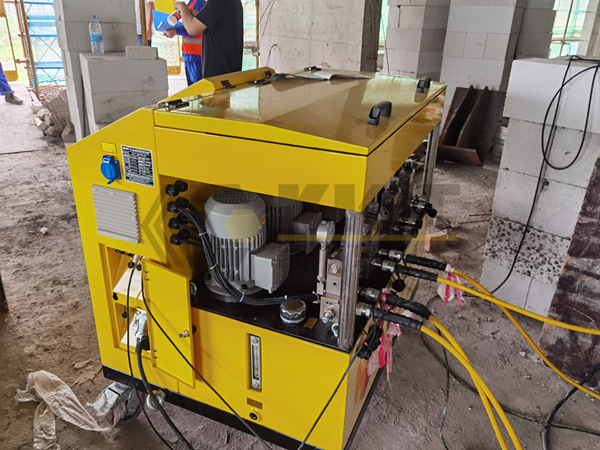

This construction uses a four-point variable frequency control synchronous lifting hydraulic system

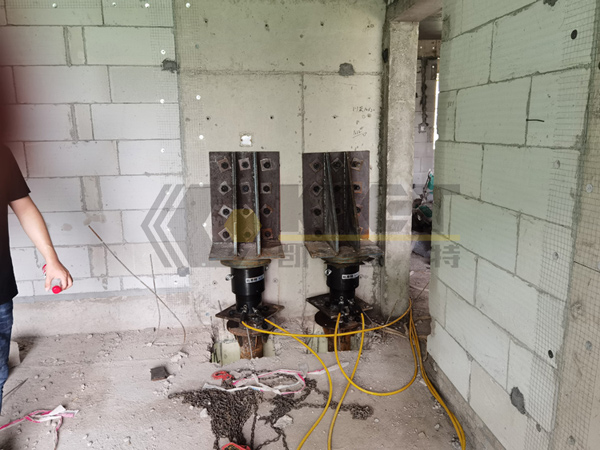

Use double-acting nut self-locking hydraulic jacks to increase stability during lifting

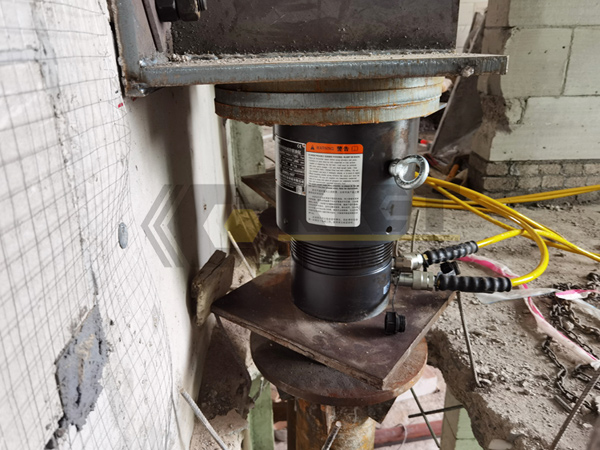

The steel structure column foot is installed at the lifting point as the contact surface of the hydraulic jack

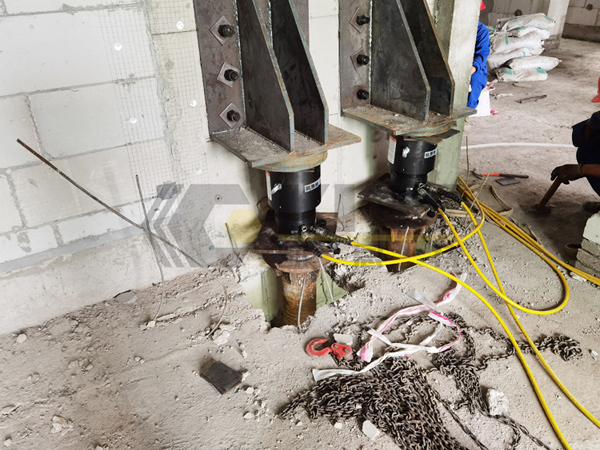

The lifting point without lifting space adopts the steel structure column foot as the contact surface

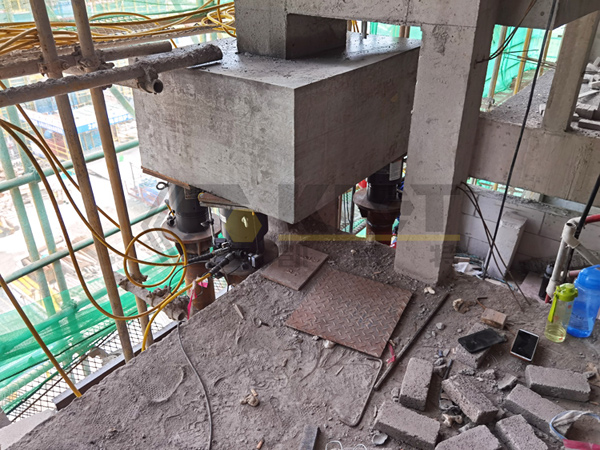

A single lifting point uses four hydraulic jacks to lift synchronously

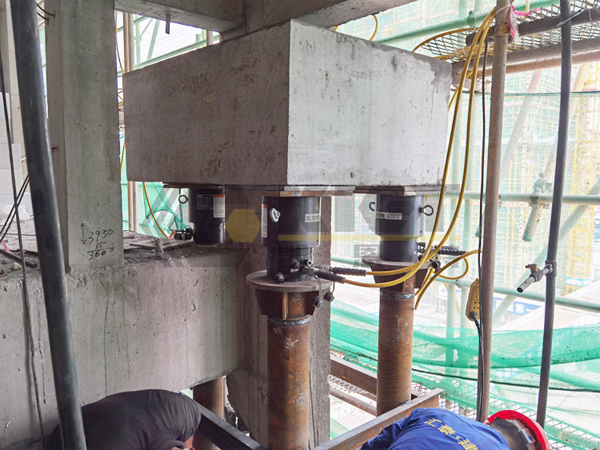

Synchronous lifting of multiple self-locking hydraulic jacks
