Product Detail

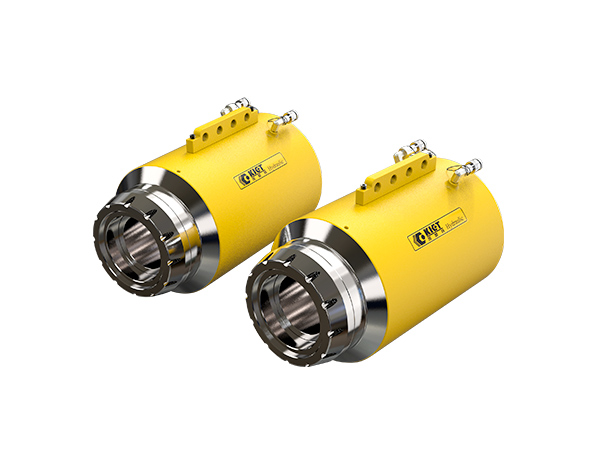

Product Features：

Available in single- or double-acting models
Ideal for working on steps where dirt, heat and heavy use can cause damage
Suitable for applications with low horizontal space that can be inserted into the jack
With wedge lock cylinder, suitable for different strand (tendon) configurations
The enamel exterior and chrome piston provide excellent corrosion protection
All models come with C8F quick couplings and dust covers
Capacity and itinerary can be customized

Specs& Dims

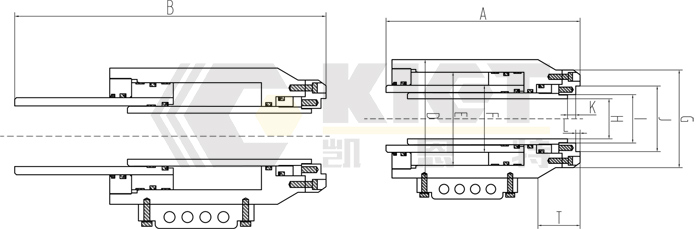

Model	Bearing ability (T)	Stroke (mm)	Effective Area (cm²)	Oil Capacity (cm³)	Body height （mm）	Extended Height （mm）	Outside diameter （mm）	Locking Nut diameter（mm）	Plunger Diameter F	Front Diameter G	Center hole diameterH	Inner DiameterI	Prestress diameterJ	prestress Plate depthL	Head Length T	Weight (kg)
KET-PSD-756	75	150	117.8	1767	480	630	2058	155	125	180	75	90	105	10	135	85
KET-PSD-758	75	200	117.8	2356	530	730	205	155	125	180	75	90	105	10	135	97
KET-PSD-7512	75	300	117.8	3534	630	930	205	155	125	180	75	90	105	10	135	118
KET-PSD-1006	100	150	162	3275	480	30	225	175	135	185	80	95	115	10	135	100
KET-PSD-1008	100	200	162	4275	530	730	225	175	135	185	80	95	115	10	135	113
KET-PSD-10012	100	300	162	6430	630	930	225	175	135	185	80	95	115	10	135	140
KET-PSD-1506	150	150	240.3	3605	490	640	270	215	175	220	100	120	140	10	140	142
KET-PSD-1508	150	200	240.3	4807	540	740	270	215	175	220	100	120	140	10	140	162
KET-PSD-15012	150	300	240.3	7210	640	940	270	215	175	220	100	120	140	10	140	200
KET-PSD-2006	200	150	317.5	4763	505	655	320	245	195	240	112	130	150	10	140	208
KET-PSD-2008	300	200	317.5	6350	555	755	320	245	195	240	112	130	150	10	140	235
KET-PSD-20012	200	300	317.5	9525	655	955	320	245	195	240	112	130	150	10	140	291
KET-PSD-2506	200	150	383.9	5759	505	655	350	270	220	255	125	145	165	10	140	245
KET-PSD-2508	250	200	383.9	7578	555	755	350	270	220	255	125	145	165	10	140	275
KET-PSD-25012	250	300	383.9	11517	655	955	350	270	220	255	125	145	165	10	140	347
KET-PSD-3006	300	150	476.2	7143	525	675	390	305	250	280	145	170	195	10	145	310
KET-PSD-3008	300	200	476.2	9524	575	775	390	305	250	280	145	170	195	10	145	350
KET-PSD-30012	300	300	476.2	14286	675	975	390	305	250	280	145	170	195	10	145	433
KET-PSD-4006	400	150	630.9	9464	550	700	460	365	300	330	185	210	235	10	155	440
KET-PSD-4008	400	200	630.9	12618	600	800	460	365	300	330	185	210	235	10	155	496
KET-PSD-40012	400	300	630.9	18927	700	1000	460	365	300	330	185	210	235	10	155	605
KET-PSD-5006	500	150	785.2	11778	570	720	500	400	320	350	200	230	260	10	155	545
KET-PSD-5008	500	200	785.2	15704	620	820	500	400	320	350	200	230	260	10	155	610
KET-PSD-50012	500	300	785.2	23556	720	1020	500	400	320	350	200	230	260	10	155	740
KET-PSD-7006	700	150	1097	16455	590	740	590	470	390	390	230	260	290	10	180	793
KET-PSD-70008	700	200	1097	21940	640	840	590	470	390	390	230	260	290	10	180	880
KET-PSD-70012	700	300	1097	32910	740	1040	590	470	390	390	230	260	290	10	180	1060
KET-PSD-10006	1000	150	1566.9	23504	640	790	730	580	480	540	300	340	370	10	180	1325
KET-PSD-10008	1000	200	1566.9	31338	690	890	730	580	480	540	300	340	370	10	180	1460
KET-PSD-100012	1000	300	1566.9	47007	790	1090	730	580	480	540	300	340	370	10	180	1725

KIET Tour

Applications

Strand hydraulic jack for cantilever beam section hoisting

There are 41 beam sections in total, of which 9 are bracket installation beam sections, and the remaining 32 beam sections are cantilever hoisting beam sections. The steel strand hydraulic jack is 14.6m long, 35.6m wide, 3.6m high, and weighs 445t. Beam sections are symmetrically spliced and hoisted.

Industry Applications：Bridges
