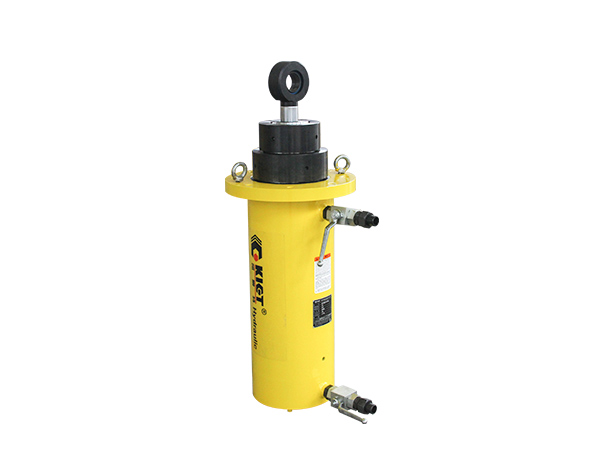

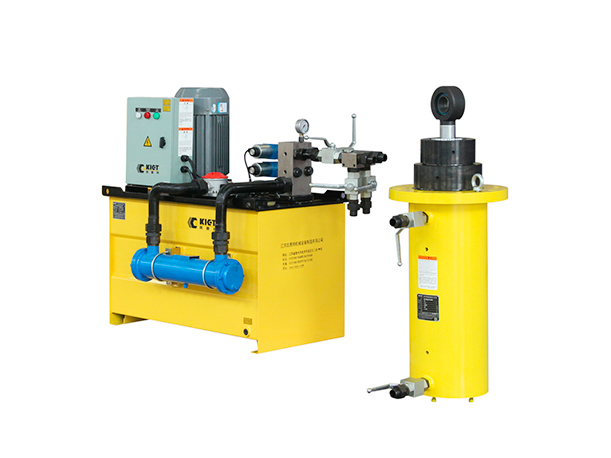

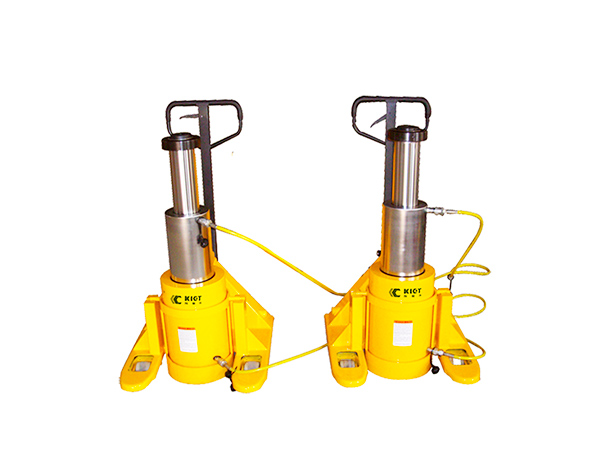

Double Acting Multistage Hydraulic Cylinder
Request a Quote
We will respond to your inquiry within 8 hours
KET-RRDDouble Acting Multistage Hydraulic Cylinder

Features: Double-acting hydraulic return to avoid the process of jacking, cushion raising, and re-jacking.

Uses: It can be used for small space and large stroke jacking at one time.

Double Acting Multistage Hydraulic Cylinder
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail

Double acting multistage hydraulic cylinders is low height, long stroke, used for lifting in narrow space. Double acting hydraulic return, improving work efficiency. Except the quality characteristics and lifting capacity of the standard cylinder, it has very long stroke, can avoid the lifting, block up, and then lifting these repeated working process, save time and improve the lifting efficiency. In most applications, the user only needs to place a multistage cylinder to complete the lifting operation.

Specs& Dims
Model Working Pressure (MPa) Capacity Working Stroke Effective Area Oil Capacity  Coll.      Height Outside Diameter Weight
(T) (mm) (cm2) (cm3) (mm) (mm) (kg)
KET-RRD-265 70 1st stage 265T 2nd stage 100T 1st stage 270 2nd stage 290 1st stage 379.9 2nd stage 143.1 1st stage 10258.4 2nd stage 4148.9 530 300 270
KET-RRD-525 70 1st stage 525T 2nd stage 265T 3rd stage 115T 1st stage 220 2nd stage 210 3rd stage 220 1st stage 267.7 2nd stage 379.9 3rd stage 165 1st stage 5889 2nd stage 7978.7 3rd stage 3631 430 415 410
