Mini-gap Flange Spreaders
Request a Quote
We will respond to your inquiry within 8 hours

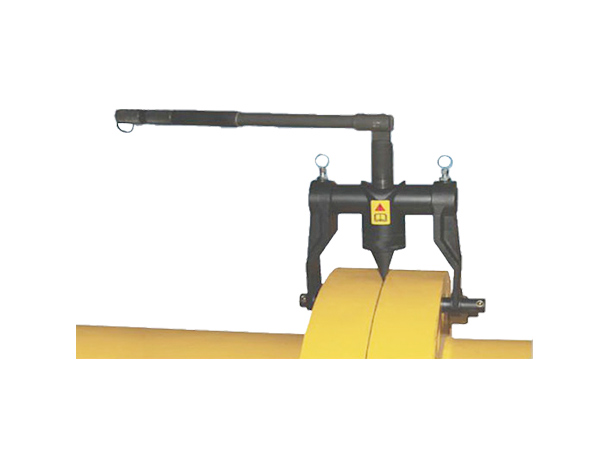

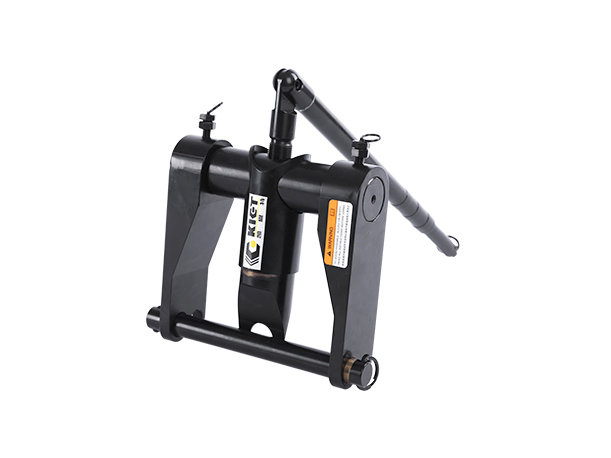

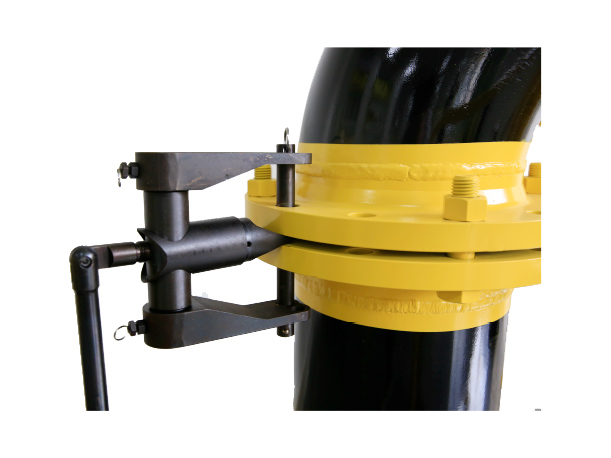

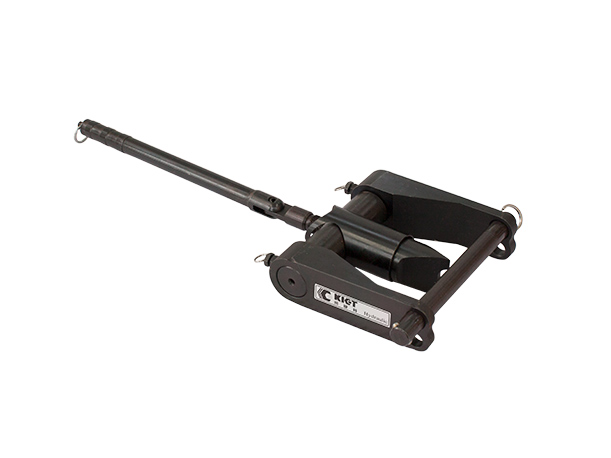

KET-MG7TMMini-gap Flange Spreaders

Features: It has a reversible claw hook design, which provides a larger range of applicable flanges; at the same time, the design of the guide rod passing through the flange screw holes improves operational safety.

Uses: It is used for pipeline maintenance of flange connections in petrochemical, metallurgy, electricity and other industries, as well as disassembly and repair of other large-scale mechanical connections.

Mini-gap Flange Spreaders
  • Details
  • Specs
  • Cases
  • Video
  • Related
Back
Product Detail

Mini-gap flange spreaders with reversible leg design, provides a wider flange range of applications, and the guide rod through the flange hole design, improves the safety of operation.

Features:
  • Innovative reversible leg design provides wider range of applications;
  • Unique double angled wedge produces more spreading force without reducing effective spreading distance;
  • Rust-proof and lightweight, easy to carry;
  • The tip clearance required is only 2mm;
  • Robust but lightweight;
  • Spreading force is 6.8T.
Specs& Dims
Model Capacity (T) Inserting Clearance (m) Weight (kg)
KET-MG7TM 6.8 2 13
Videos
Related Product
  • KET-FSM
    Split Type Hydraulic Flange Spreaders
    Working Capacity:
    14 ~ 28t
    Minimum Clearance:
    6mm
    Spreading Distance:
    42mm
  • KET-FSM
    Mechanical Flange Spreaders
    Working Capacity:
    8 ~ 16t
    Minimum Clearance:
    6mm
    Spreading Distance:
    40 ~ 70mm
  • KET-SW
    Integrated Hydraulic Flange Spreader
    Working Capacity:
    15 ~ 30t
    Minimum Clearance:
    6mm
    Spreading Distance:
    42mm
  • KET-FS
    Split Hydraulic Flange Splitter
    Working Capacity:
    5 ~ 10t
    Bolt Size:
    19 ~ 41mm
    Working Stroke:
    38 ~ 54mm
