Features: Can be used to correct vertical and rotational misalignment of flange.
Uses: Provides a simple solution for misalignment of small, low-pressure flanges.

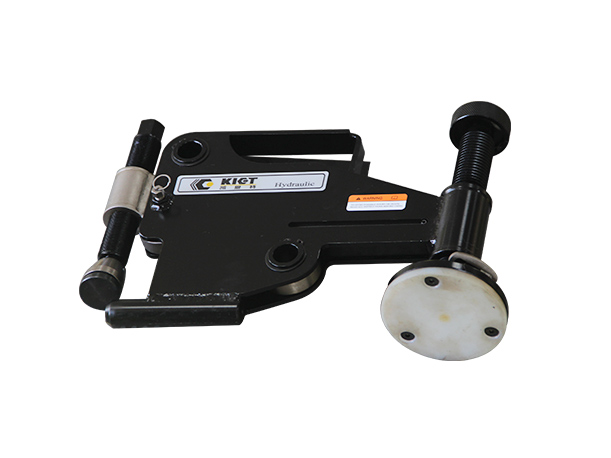

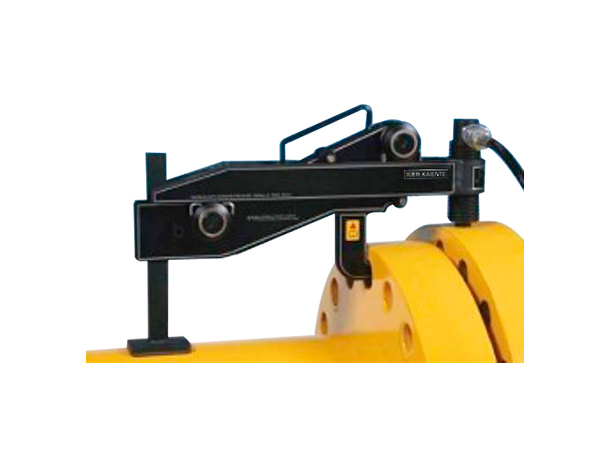

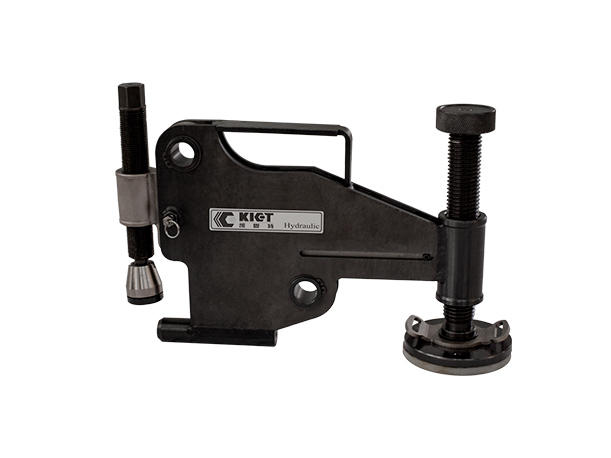

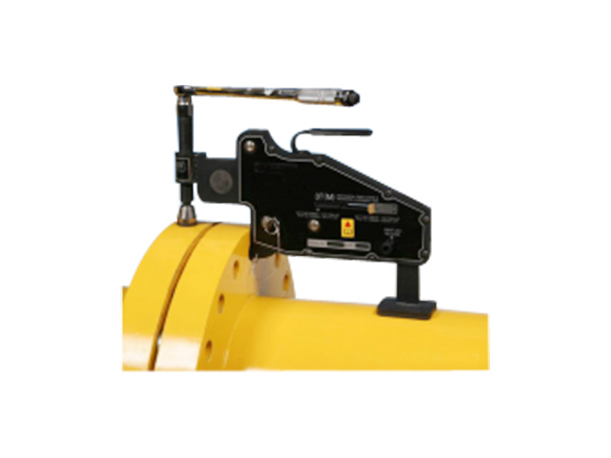

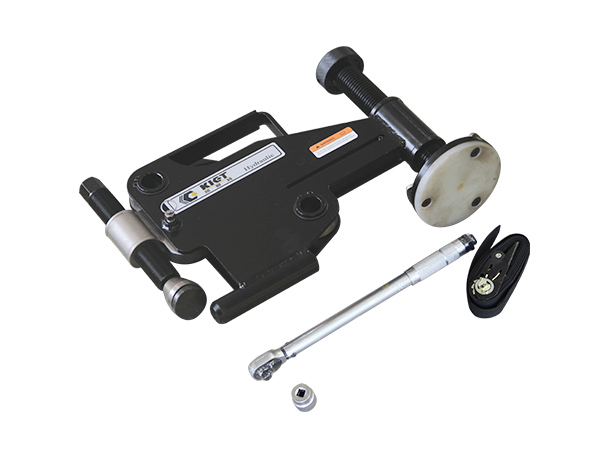

The mechanical flange alignment tools is applied to middle size and low pressure flanges’ alignment, which provides the simplest solution. The alignment tools provide a simple, safe and modern solution to the traditional vertical displacement and rotational misalignment, which can also reduce the risk and save cost. The simplest solution for small size, low pressure flange is provided. The flange alignment tools apply to ANSI, API, BS and DIN flanges.
| Model | Capacity （T） | Min. Bolt Hole Diameter （mm） | Max. Alignment Distance （mm） | Weight （kg） |
| KET-FA1TM | 1 | 16 | 26 | 1.6 |
| KET-FA4TM | 9 | 16 | 135 | 8.6 |
